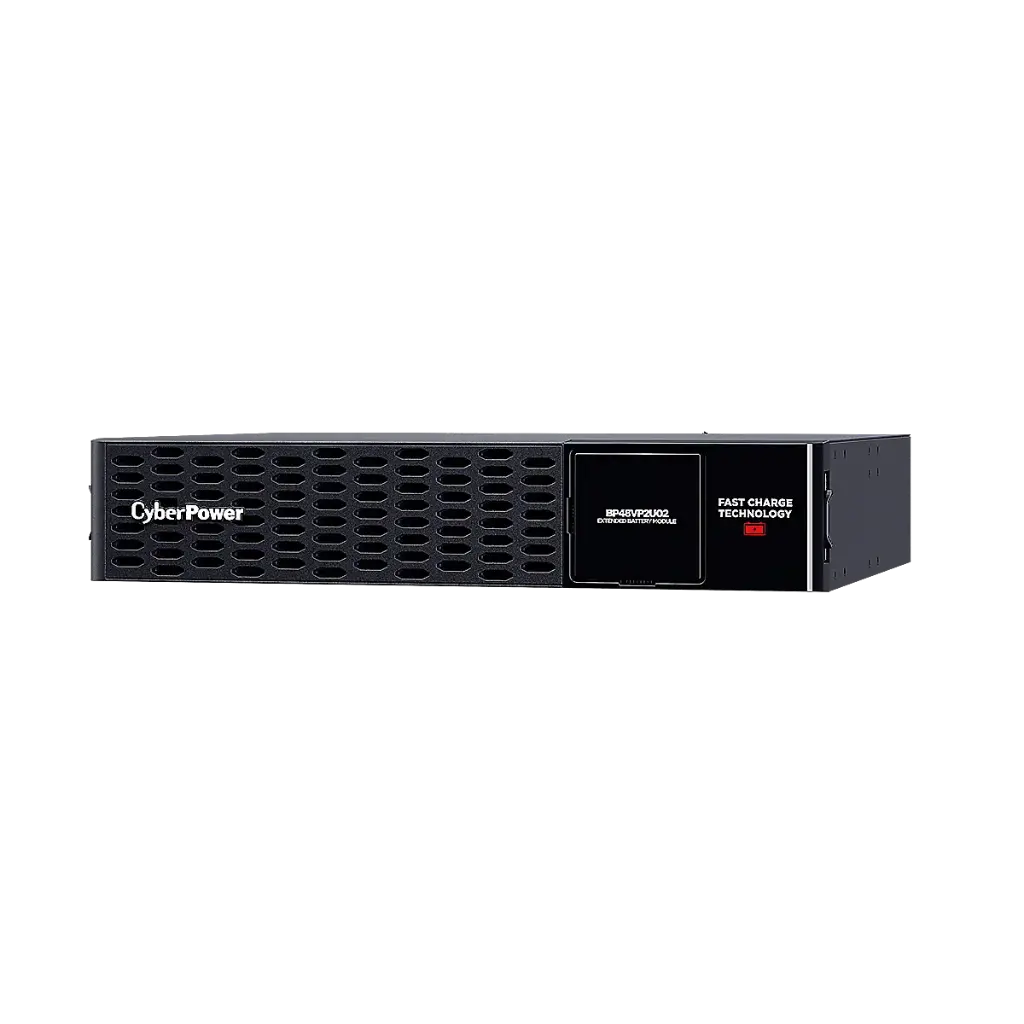

CyberPower BP48VP2U02 – 48 V Extended Battery Module (EBM)
When uninterrupted runtime matters most, the BP48VP2U02 delivers scalable, hot-swappable backup power for compatible CyberPower enterprise UPS systems.
Key Features & Benefits
Extended Runtime for Critical Loads
Designed to seamlessly integrate with compatible 48 V UPS models—such as PR1500LCDRTXL2U, PR2200LCDRTXL2U, PR3000LCDRTXL2U, and OR2200LCDRTXL2U—the BP48VP2U02 significantly boosts system runtime per added module.
Built-in Fast Charger & Equalization
Supports direct utility charging independent of the UPS, greatly accelerating recharge times when multiple EBMs are used. Built-in battery equalization helps maximise lifespan and maintain consistent battery health.
Tool-Free Access & Hot-Swappable Design
Engineered for maintenance ease: battery trays are accessible without tools, and modules can be swapped without powering off the UPS—maximizing uptime.
Versatile Rack or Tower Configuration
The metal-enclosed 2U design adapts to rack-mounted or tower-mounted installations, offering flexible placement options.
Specifications at a Glance
| Attribute | Specification |
|---|---|
| Output Voltage | 48 V DC |
| Rated Output Current | 70 A |
| Battery Configuration | 8 × 12 V / 9 Ah sealed lead-acid (VRLA) |
| Technology | Built-in charger with battery equalization |
| User Access | Hot-swappable, tool-free battery modules |
| Form Factor | 2U rack/tower convertible metal housing |
| Dimensions (WxHxD) | ~433 × 86.5 × 500 mm |
| Weight | ~30 kg (net), ~36.6 kg packed |
| Typical Recharge Time | ~6 hours |
| Warranty | 2–3 years (manufacturer region-dependent) |
| Certifications | RoHS, UL, FCC Class B, VCCI, RCM |
Designed For
Ideal for enterprise-grade IT environments where extended UPS runtime is critical:
Primary or redundant servers
Network infrastructure across racks
VoIP and telecom setups
Remote or edge installations demanding continuous uptime
Why Choose BP48VP2U02?
Reliable high-capacity extension—supporting long-duration runtime for matched UPS models
Integrated charging and battery management, minimizing recharge downtime
Rack/tower flexibility makes deployment adaptable to any IT footprint
Hot-swappable user-replaceable batteries ensure service continuity
Backed by a multi-year warranty and safety certifications
Package Includes
In typical packages, you’ll receive: the BP48VP2U02 cabinet, rack-mount/tower mounting kit, DC extension cable, power cables (IEC C13–C14 and IEC C13–NEMA options), user manual, and warranty documentation.
