CyberPower OLS1000ERT2UA – 1 kVA / 900 W Online Double‑Conversion UPS
This UPS employs online double-conversion technology and generates pure sine wave output—providing seamless power continuity with zero transfer time. It shields your sensitive equipment from voltage fluctuations, spikes, and generator instability.

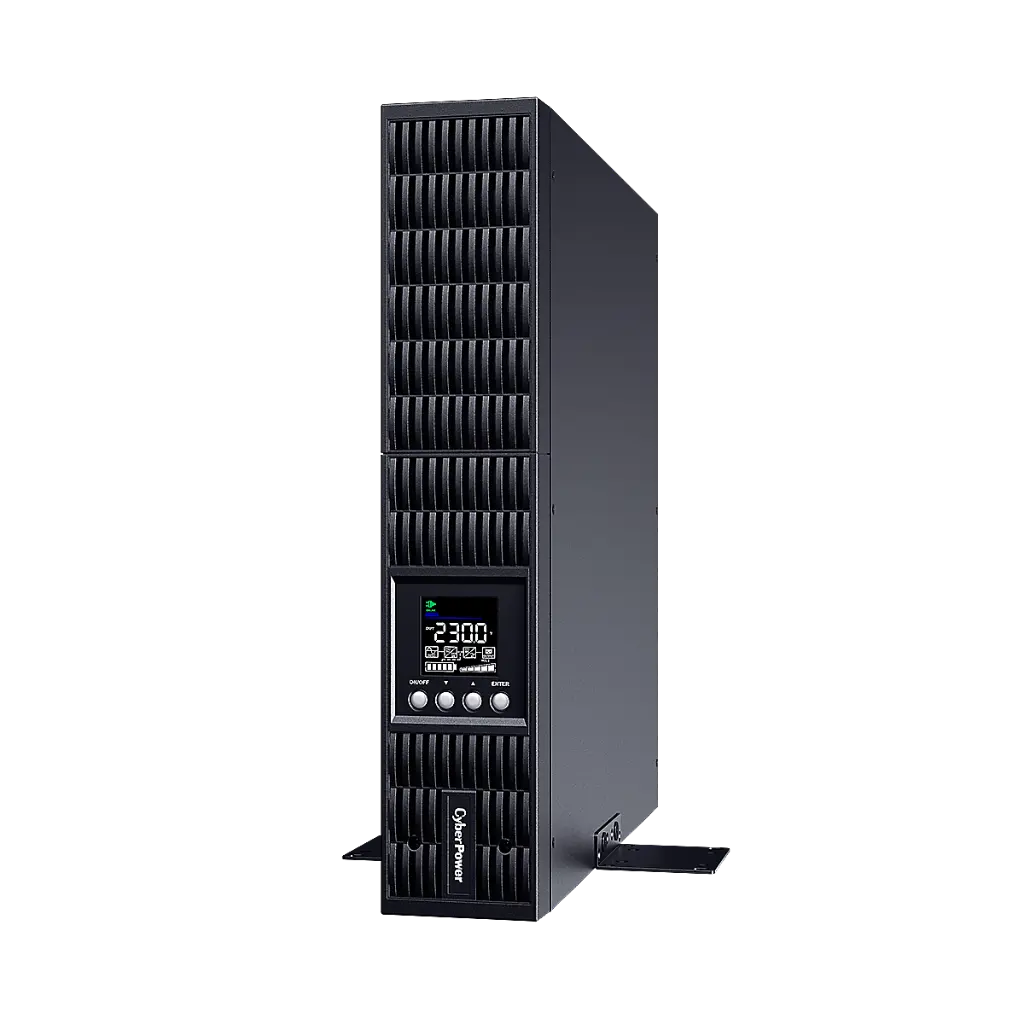

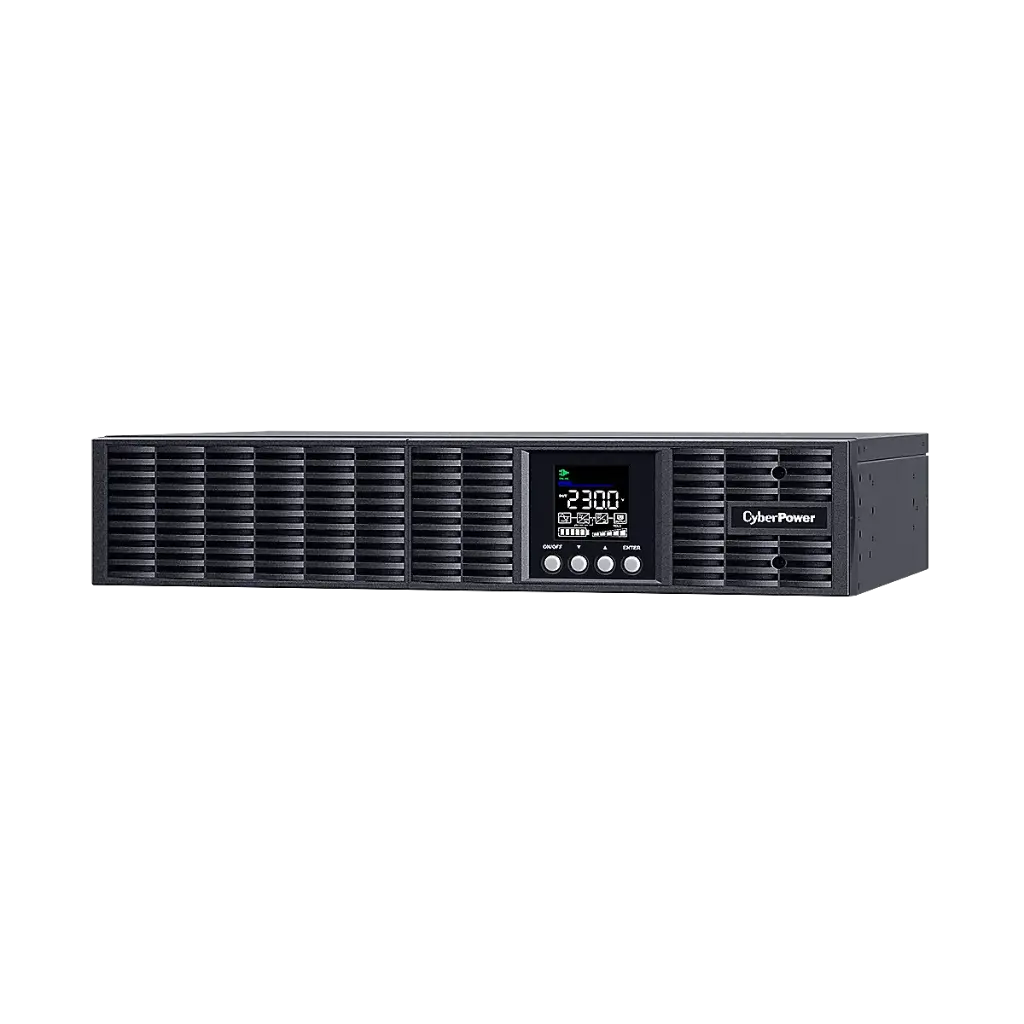

Designed for back-office, server rack, or data centre applications, this flexible unit operates either as a 2U rack-mount or tower configuration.
Key Features
Online (Double Conversion) Topology with Generator Compatibility & Zero Transfer Time
Extended Battery Module (EBM) Auto‑Detection for automatic runtime scaling by detecting up to three EBMs.
ECO Mode with >95% Efficiency to reduce operational costs.
Smart Battery Management (SBM), hot-swappable user-replaceable batteries for extended serviceability.
Variable-speed fans automatically adjust noise levels based on load.

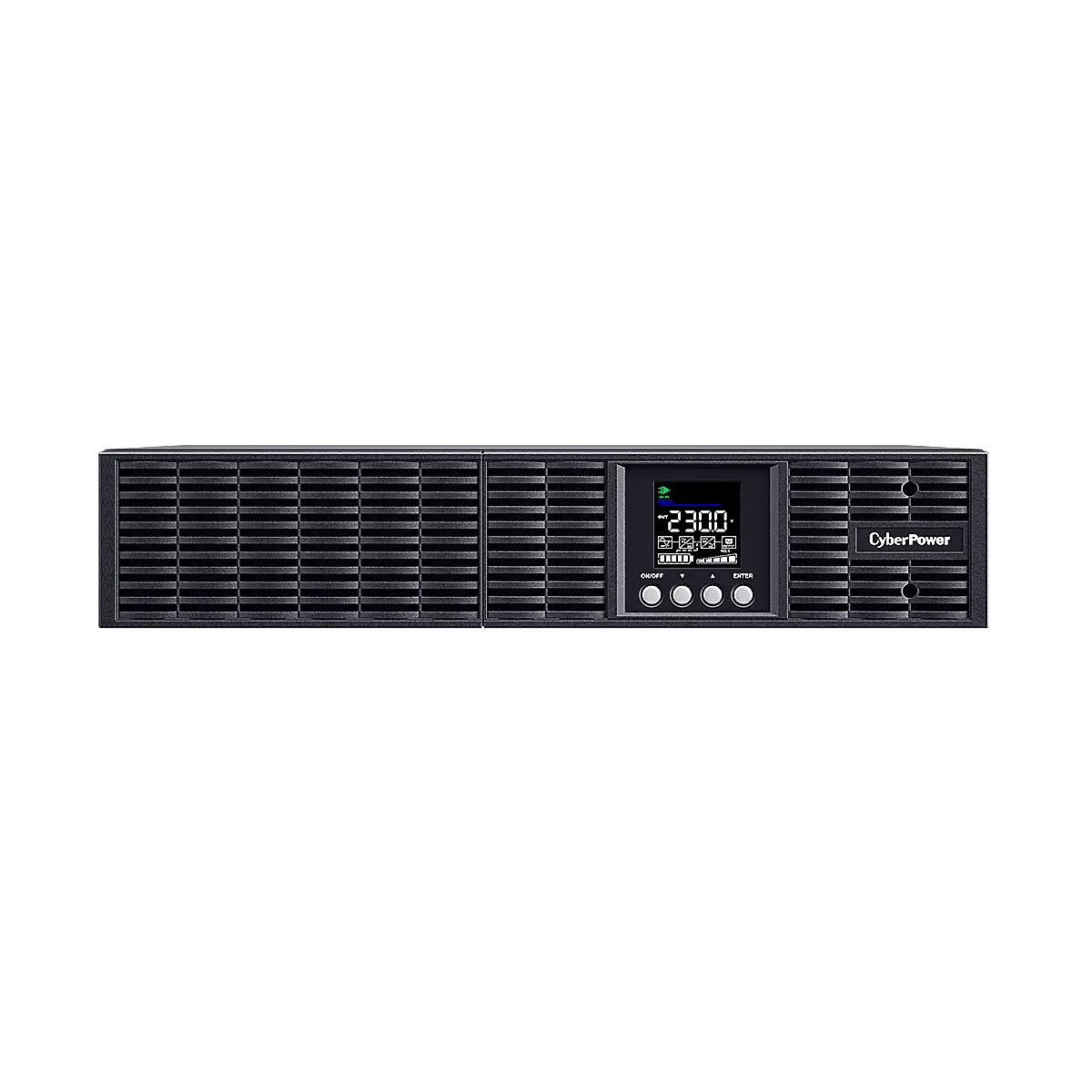

Color LCD Panel (rotatable) for real-time status, configuration, and event logs.
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 1 kVA / 900 W |
| Output Voltage | 208, 220, 230, or 240 VAC ±1% |
| Efficiency (ECO Mode) | >95% |
| Power Factor | 0.9 |
| Input Range | 160–300 VAC (adjustable per load) |
| Input Power Factor | 0.99 |
| Crest Factor | 3:1 |
| THD | <3% (linear), <5% (non-linear) |
| Surge Suppression | 363 J, plus phone/fax/network protection via RJ‑11/RJ‑45 combo |
| Transfer Time | 0 ms (no interruption) |
Outlets & Connectivity

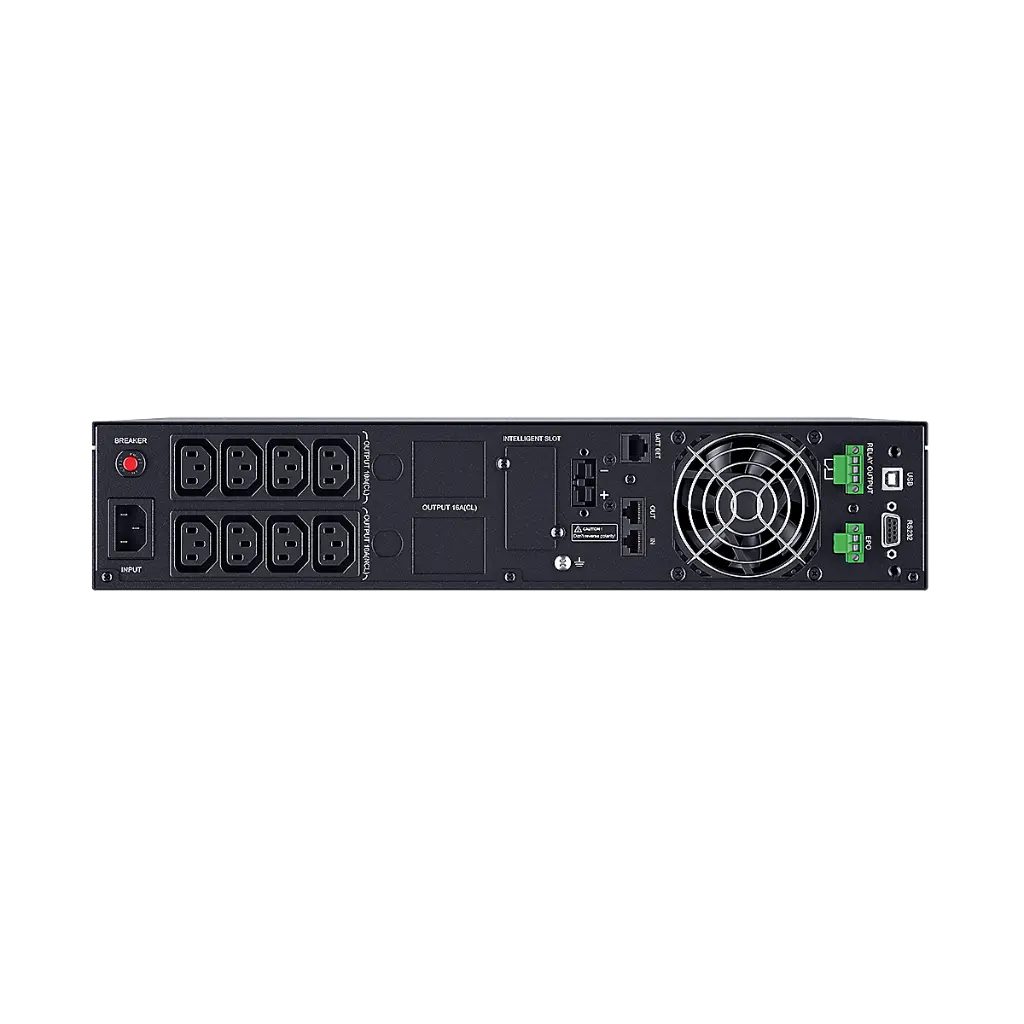

Eight IEC C13 outlets: 4 for critical load, 4 for non‑critical load.
Communications: USB, RS‑232 dry contact relay (EPO port); supports optional SNMP/HTTP remote management via RMCARD205 module.
Runtime & Battery
Half-load runtime: ~13.9 minutes
Full-load runtime: ~4.6 minutes
Recharge time: ~4 hours
Battery setup: 2 × 12 V/9 Ah sealed lead‑acid (VRLA) modules (RBP0156)
Expandable with up to 3 EBMs
Physical & Environmental Specs
Dimensions: 438 × 430 × 88 mm (WxDxH); Weight: ~10.4 kg
Rack Size: 2U metal chassis; available as tower convertible
Operating Conditions: 0–40 °C, 20–90% RH, up to 1 500 m altitude
Noise Level: Up to 45 dBA at 1 m in active mode
Certifications: CE, EAC, RoHS
In the Box & Warranty
Includes rackmount rails, ears, screw kit, power cord, USB cable, and user manual — contents may vary by region.
Warranty: 2‑year coverage for both product and battery; includes a connected‑equipment guarantee (up to €25,000 in eligible regions).
