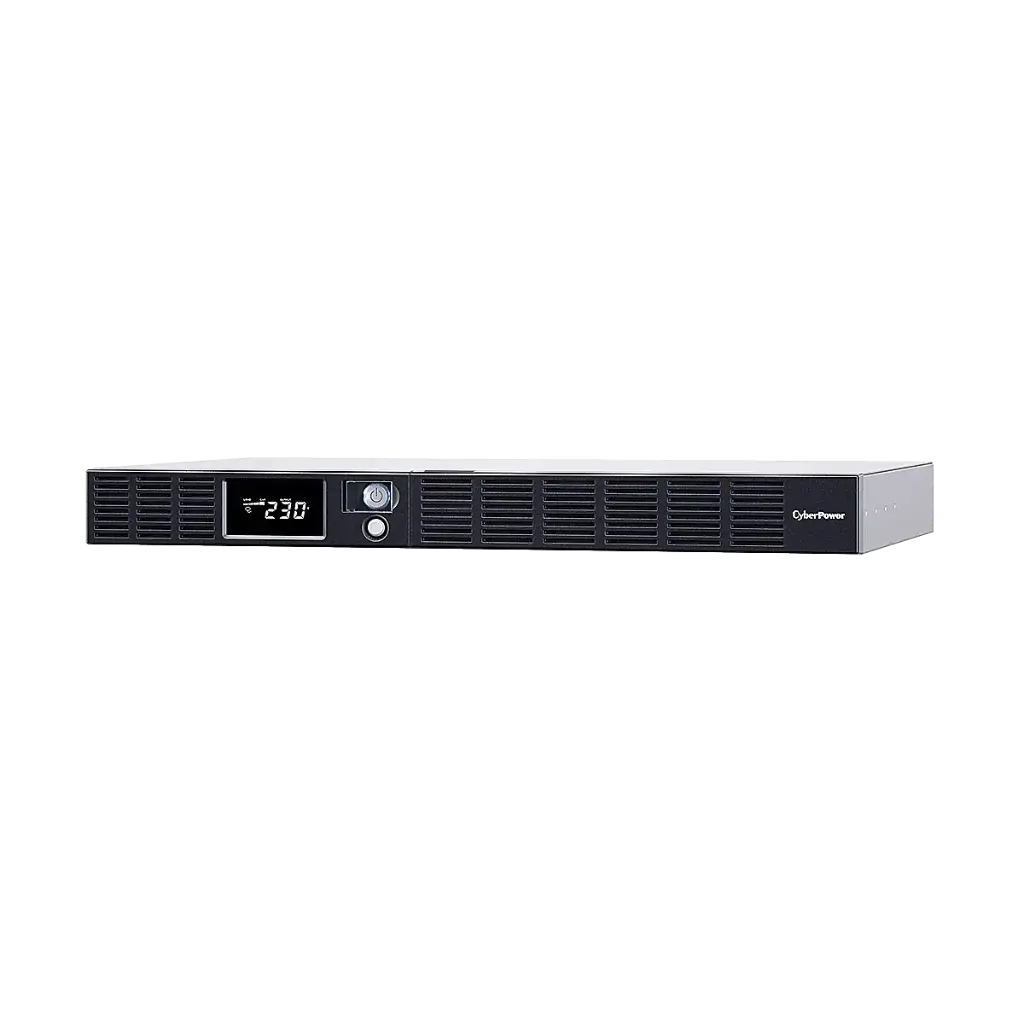

CyberPower OR1000ERM1U - 1 kVA / 600 W Line Interactive Rackmount UPS (1U)
The OR1000ERM1U is a slim, 1‑rack‑unit backup power solution designed for office and server environments. Featuring line‑interactive topology with simulated sine wave output, it safeguards critical equipment—PCs, workstations, networking gear, and peripherals—from surges, spikes, and power interruptions by integrating voltage correction (AVR) and network‑line protection.
Key Features
Capacity: Rated at 1000 VA / 600 W, ideal for mid‑level server loads and network components.
Topology & Output: Uses a Line‑Interactive design with simulated sine wave output—efficient for office electronics and networking equipment.
Surge & Network Protection: Protects via 810 J surge suppression and EMI/RFI line filtering; includes RJ‑11/RJ‑45 combo ports to shield phone/DSL/ethernet from spikes.
Automatic Voltage Regulation (AVR): Single‑boost AVR adjusts under‑/over‑voltage without draining the battery.

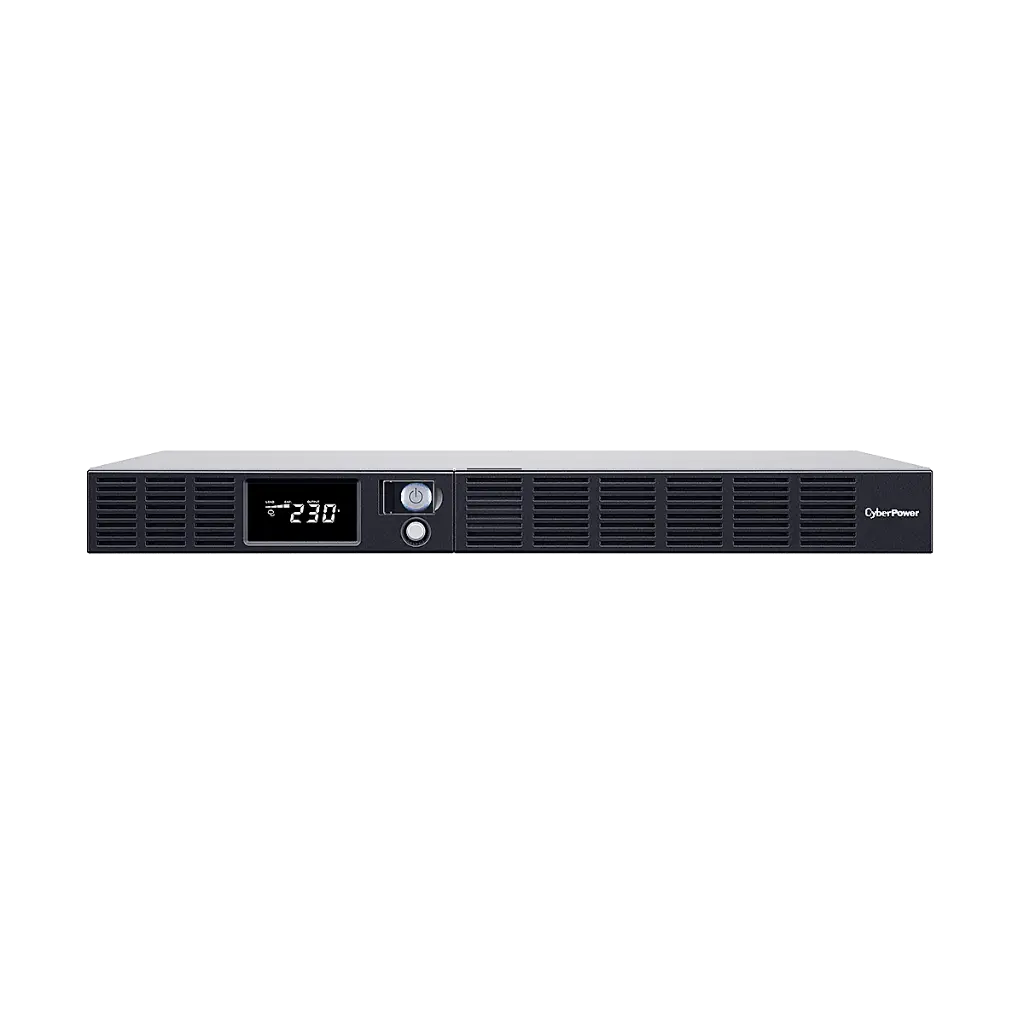

LCD Display & Alarms: Multifunction LCD panel delivers real‑time info on voltage levels, battery/runtime, load percent, alarms; audible alerts for faults, overloads, battery status.
Battery & Run‑Time
Hot‑Swappable Battery: Enables battery replacement without interrupting power – ideal for continuous server uptime.
Backup Runtime: ~14 min at half load, ~3.5 min at full load. Recharge time is ~8 hours.
Electrical & Connections
Input: 230 V nominal (165–271 V range); 10 A IEC C14 inlet. Auto-sensing for 50/60 Hz .

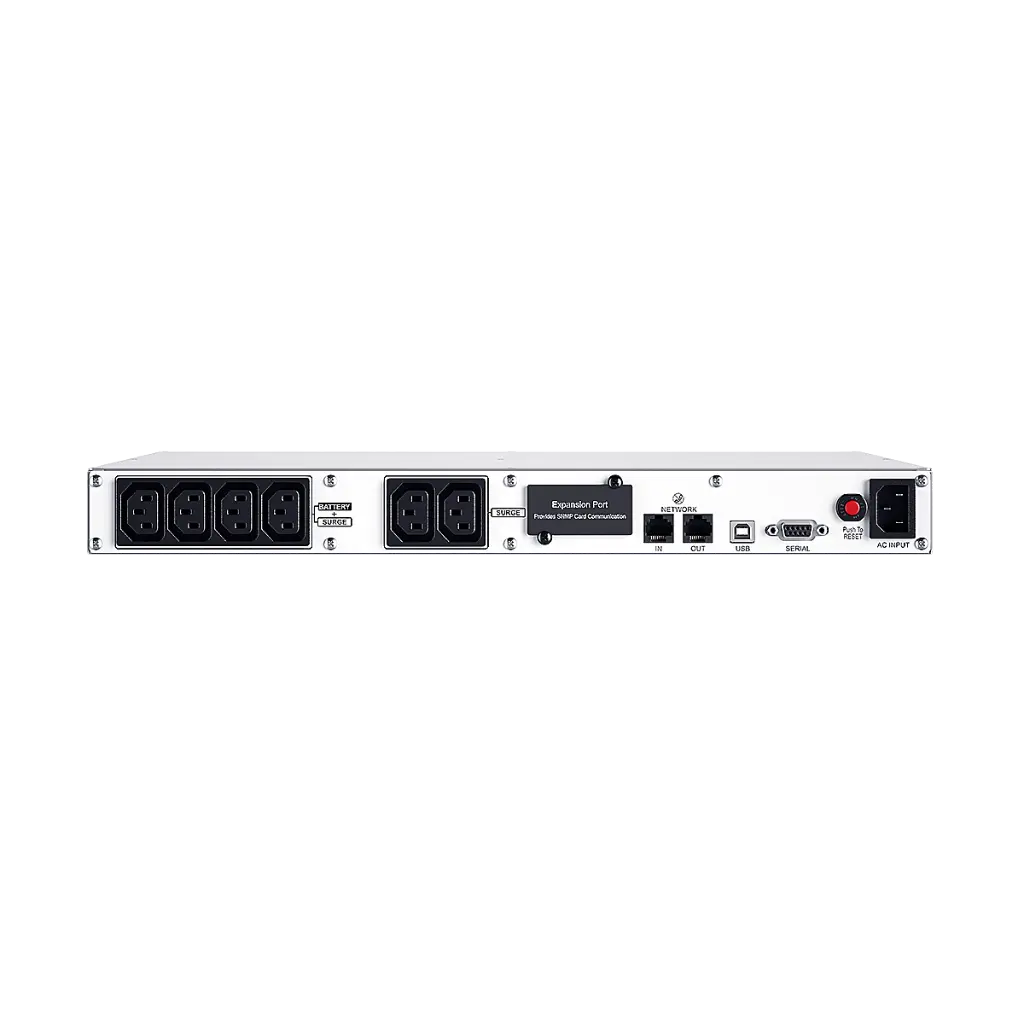

Output: Six IEC C13 outlets—four offer battery + surge protection, two surge-only. Transfer time: ~4 ms.
Management & Monitoring
Connectivity: USB-B HID compliant and dry-contact serial port included. Optional SNMP/HTTP remote management card (RMCARD205) supported.
Software: Bundled with PowerPanel Business (Windows/macOS/Linux) for graceful shutdowns, alerting, scheduling, and UPS analytics.
Physical & Environmental Specs
Form Factor: 1 U rackmountable, approx. 433 × 44 × 389 mm (WxHxD), weight ~13.7 kg (~30.2 lb).
Operating Conditions: 0–40 °C, 0–95 % humidity, altitude ≤ 3,000 m; storage range extends to –15 °C / ≤ 15,000 m.
Certifications & Warranty
Compliant with CE, EAC, RCM, RoHS standards.
2-year warranty on both equipment and battery; includes up to €25,000 equipment protection (region‑dependent)
Specifications
Specification | Details |
---|---|
Power Capacity | 1 000 VA / 600 W |
Output Waveform | Simulated Sine Wave |
Backup Runtime | ~14 min @ 50% load, ~3.5 min @ full load |
Outlets | 6 × IEC C13 (4 battery + surge, 2 surge-only) |
Interfaces | USB‑B, Serial, RJ‑45/11 combo (network protection) |
Form Factor | 1 U rack (433 × 44 × 389 mm) |
Weight | ~13.7 kg / 30.2 lb |
Certifications | CE, RoHS, EAC, RCM |
Warranty | 2 years |
.
