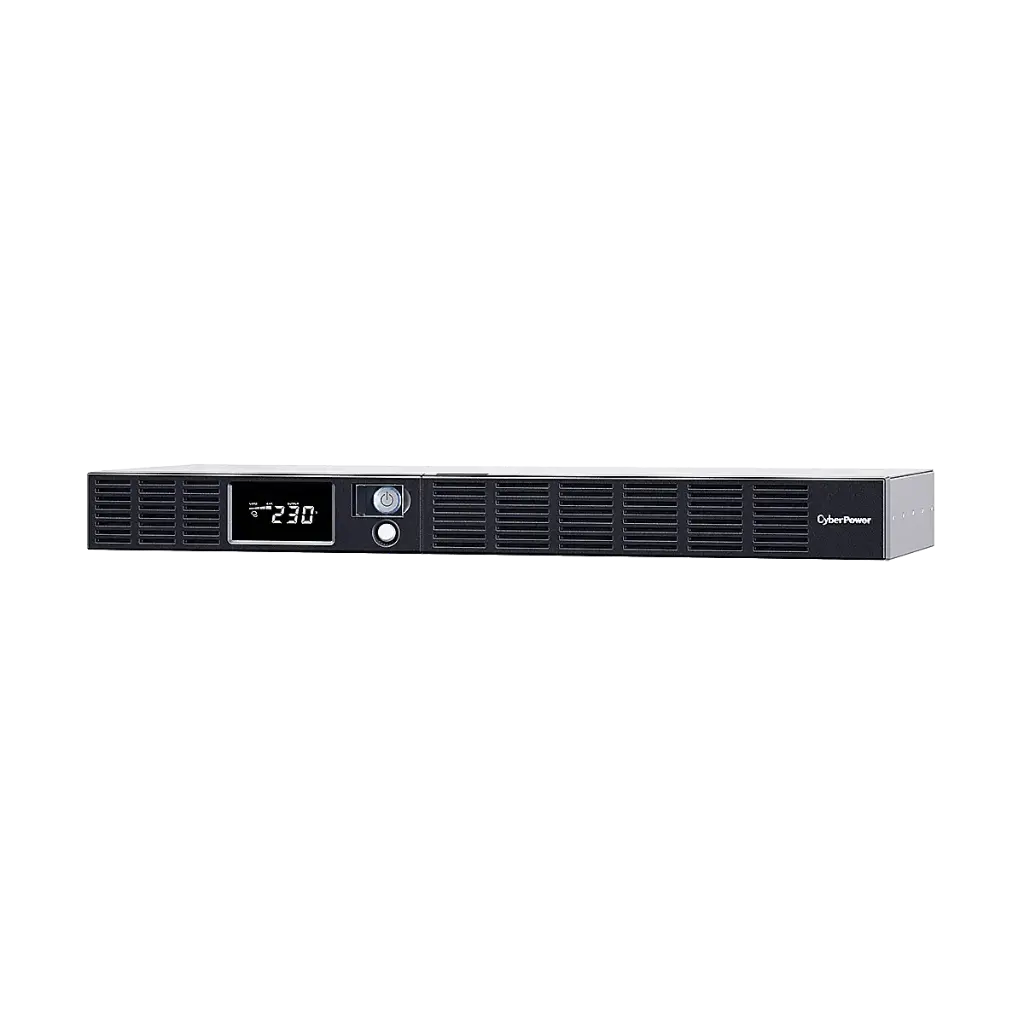

CyberPower OR600ERM1U - 600 VA / 360 W Line Interactive Rackmount UPS (1U)
The OR600ERM1U is a compact 1U rack-mount UPS offering 600 VA (360 W) backup power with line-interactive topology and simulated sine wave output—designed for safeguarding office systems, networking gear, and peripherals in small racks and server closets.
Key Features
Topology & Output: Line-interactive design explains the simulated sine waveform output, balancing efficiency and compatibility.
Automatic Voltage Regulation (AVR): Features single-boost AVR to stabilize voltage within 165–271 VAC without consuming battery power.
Surge & Network Protection: Delivers 405 J surge suppression, EMI/RFI filtering, and RJ‑11/RJ‑45 combo ports to shield telephone/FAX and network lines.
GreenPower Bypass: Energy-saving bypass reduces idle power consumption during normal operation.

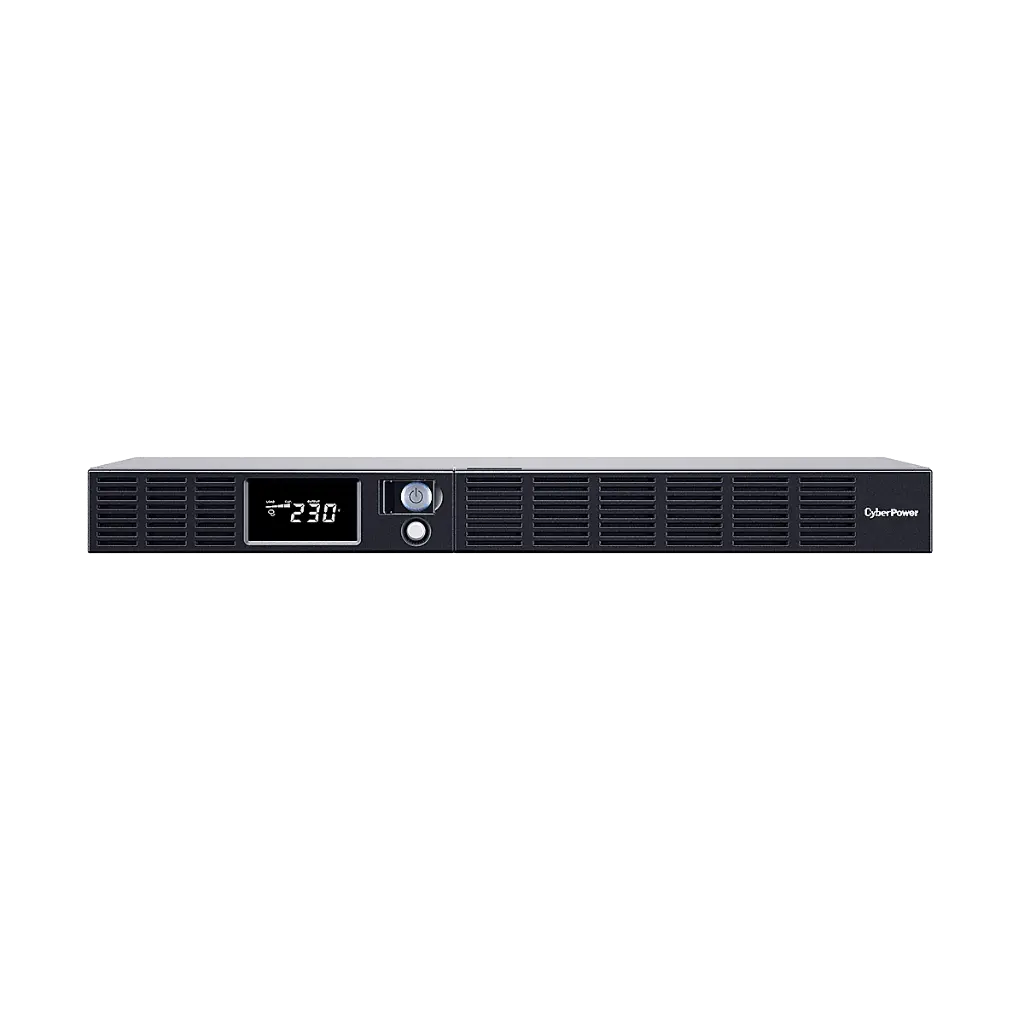

LCD Status Panel: Multifunction LCD with real-time input/output voltage, battery and load status, runtime, alarms, and “silent mode”; also includes USB and serial ports for monitoring and management.
Hot-Swappable Battery: One sealed lead-acid battery (RBP0019) can be replaced without downtime for the protected loads.
Battery & Runtime
Typical runtime: ~13 minutes at half load, ~4 minutes at full load
Recharge time: ~8 hours for full charging
Hot-swap capability ensures continuous operation during battery maintenance.
Electrical & Outputs
Input: 230 V nominal (operational range: 165–271 V), 50/60 Hz auto-sensing, draws up to 10 A via IEC C14 input connector.

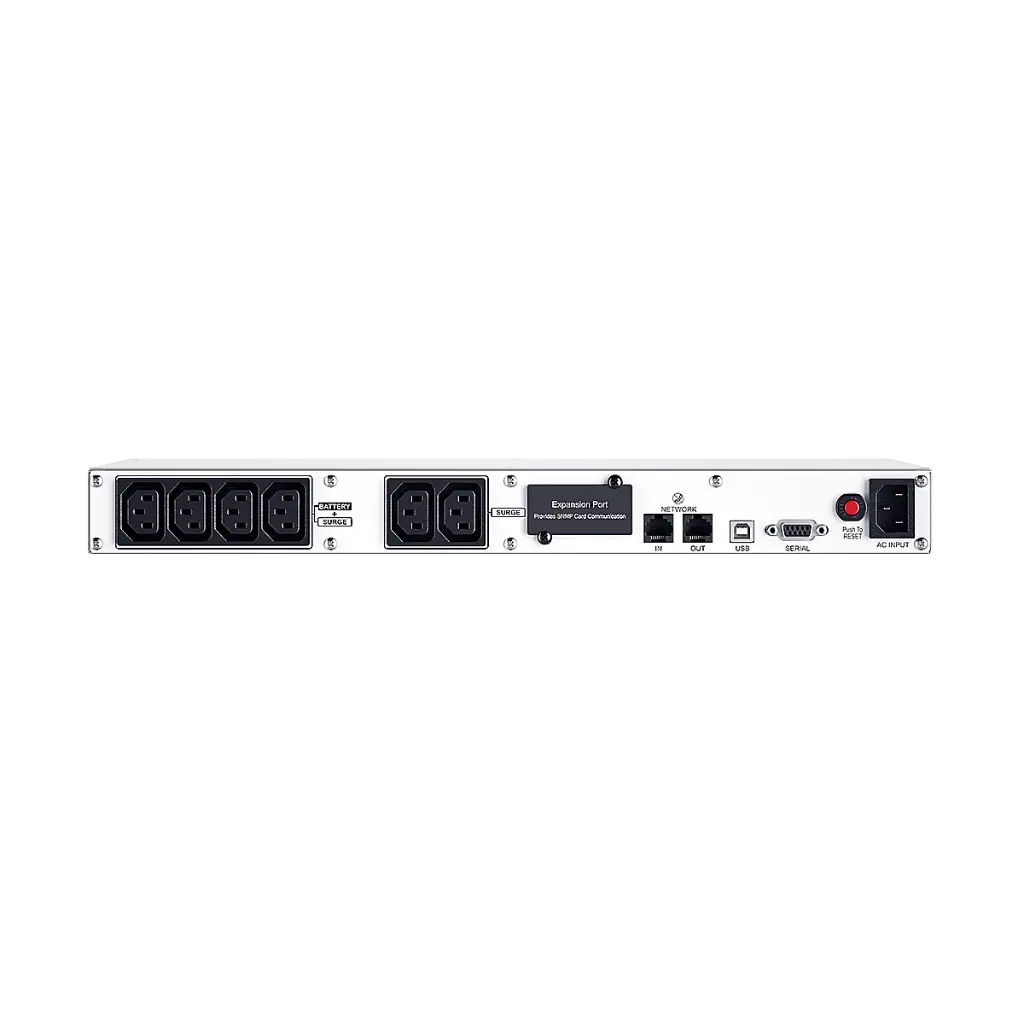

Output: Six IEC C13 outlets: four battery+surge‑protected, two surge-only
Transfer time: ~4 ms typical, minimizing interruption on load.
Physical & Environmental Specs
Form Factor: 1 U rackmount (dimensions: 433 × 44 × 235 mm), weight approx. 7.8 kg; shipping weight ~10.3 kg.
Operating Conditions: 0–40 °C ambient, 0–95 % RH, altitude up to 3,000 m (storage to 15,000 m); thermal dissipation ~20 BTU/hr.
Certifications & Warranty
Certified for CE, EAC, RCM, and compliant with RoHS safety standards
Includes a 2‑year, direct-from-manufacturer warranty (UPS and battery), along with up to €25,000 equipment protection insurance in select regions.
Ideal For
➤ Small network racks or home lab setups requiring compact, rack-mounted backup power
➤ Office and perimeter gear, e.g. switches, routers, edge servers
➤ Environments on a budget, where reliable AVR protection and hot-swappable battery maintenance are desired without expensive upfront cost
Quick Specs Summary
Specification | Details |
---|---|
Capacity | 600 VA / 360 W |
Output Waveform | Simulated Sine Wave |
AVR | Single‑Boost |
Runtime | ~13 min @ 50 % load; ~4 min @ full |
Outlets | 6 × IEC C13 (4 UPS + surge, 2 surge-only) |
Transfer Time | ~4 ms |
Connectivity | USB‑HID, Serial, RJ‑11/45 protection |
Form Factor & Weight | 1 U rack, 433×44×235 mm, 7.8 kg |
Warranty | 2 years (with €25k IPS) |
