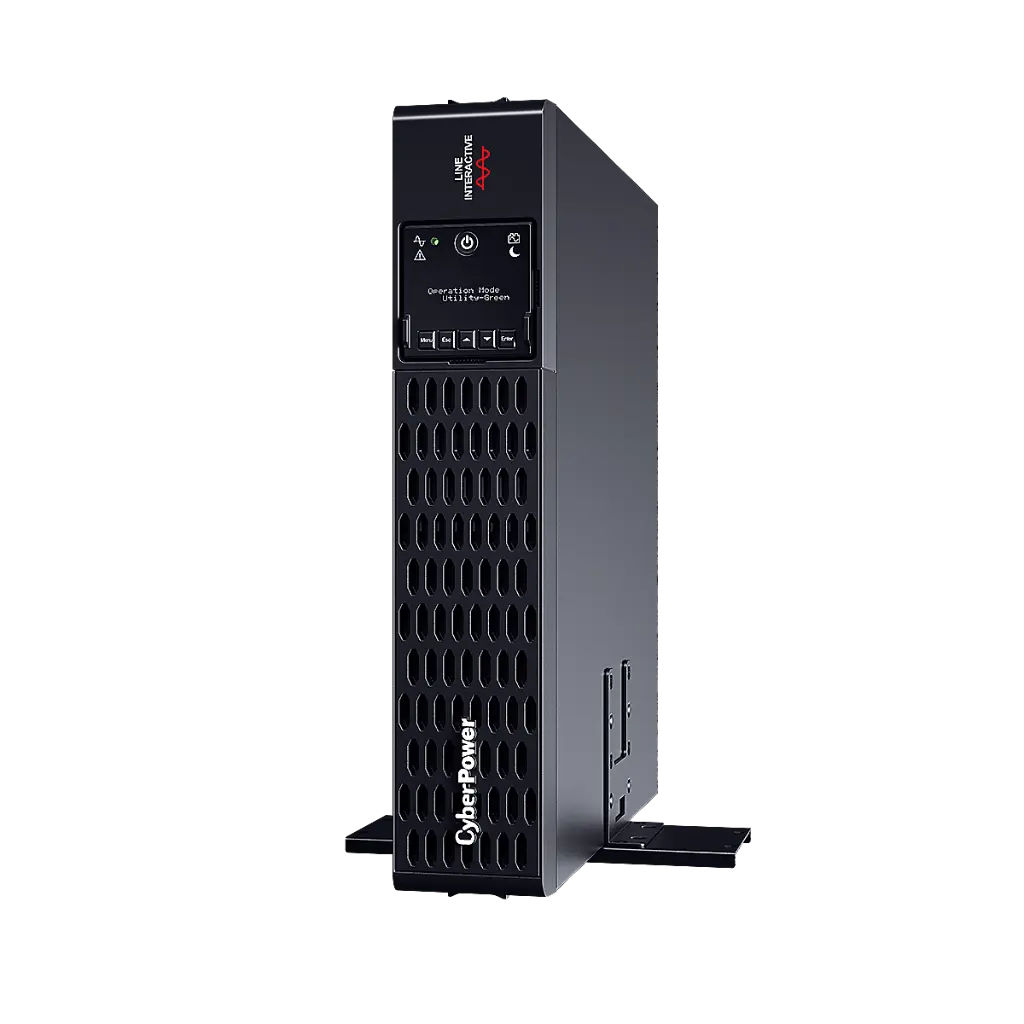

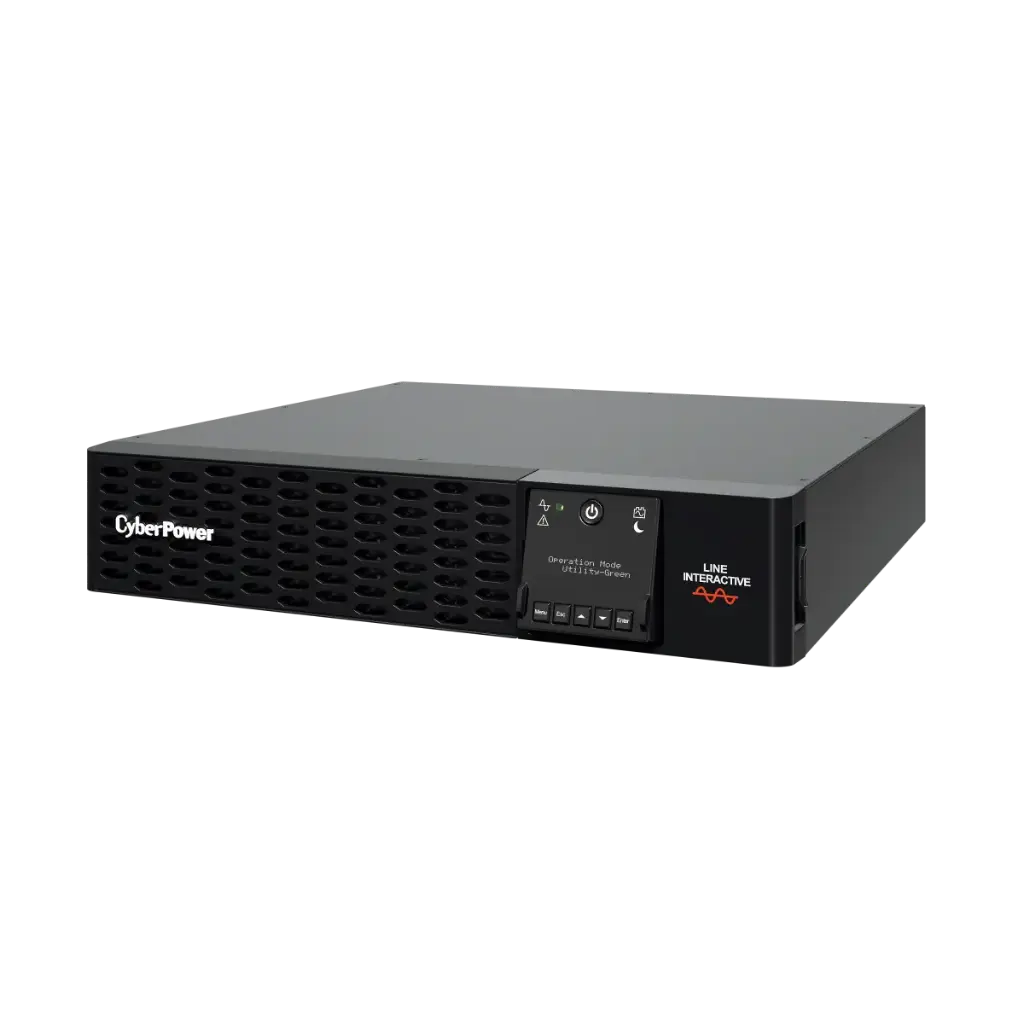

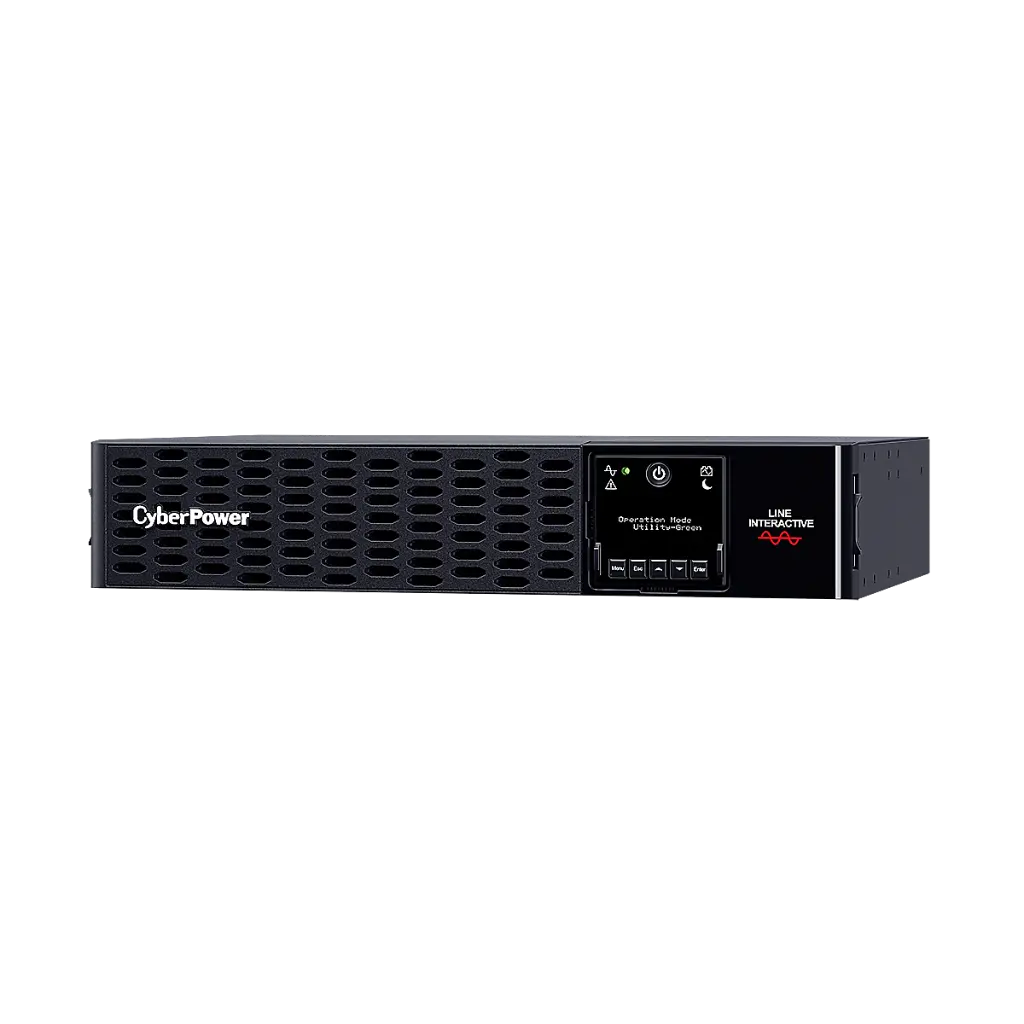

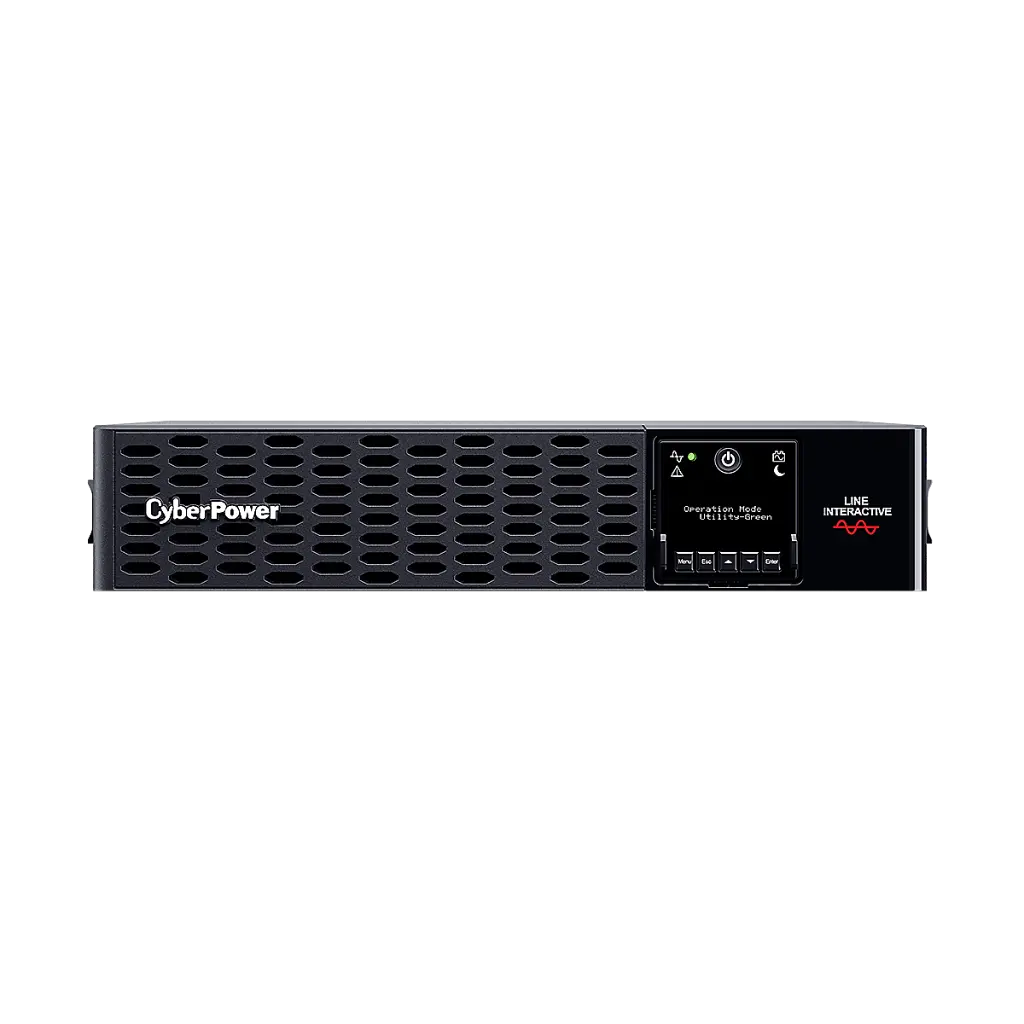

CyberPower PR1000ERT2U - 1 kVA / 1 kW Line‑Interactive Rackmount UPS (2U)

The PR1000ERT2U is a professional-grade, 2U rack‑mount UPS offering 1 000 VA / 1 000 W capacity with pure sine wave output, ideal for protecting servers, workstations, NAS units, telecom gear, and networking devices in critical environments.

Key Features

• Topology & Output: Line-interactive with pure sine wave output ensures compatibility with Active PFC power supplies and sensitive equipment.

• Power Factor: Full 1:1 output power factor, allowing maximum usage of rated watts.

• Automatic Voltage Regulation (AVR): Features double boost and single buck AVR to correct under- and over-voltage issues without battery discharge.

• Battery Management: Includes Battery Management Technology and quick charging (two-phase) to optimize lifespan and reduce downtime.

• Hot‑Swappable Batteries: Tool‑less cartridge replacement avoids interruption to protected loads.

• Surge Protection & Filtering: Offers 2 430 J surge suppression, EMI/RFI filtering, and network protection via RJ‑11/RJ‑45 combo ports (1 in/1 out).

• LCD & Alarm System: Multi-function, rotatable matrix LCD shows real-time status, configurable settings, logs, alarms, and other management info; plus LED and audible alarms included.

• Energy-Saving Technology: Incorporates GreenPower Bypass Technology to reduce operational power consumption during utility mode.

• Connectivity: Standard USB‑B HID and RS‑232 ports, dry-contact relay, and EPO (Emergency Power Off) support. SNMP/HTTP remote management enabled via optional RMCARD205 card.

Battery & Runtime

• Runtime: ~7 min at full load, ~21 min at half load (~400 W), with additional runtimes scaling down to ~205 min at 50 W.

• Recharge time: ~3 hours for full recharge.

Outlets & Performance

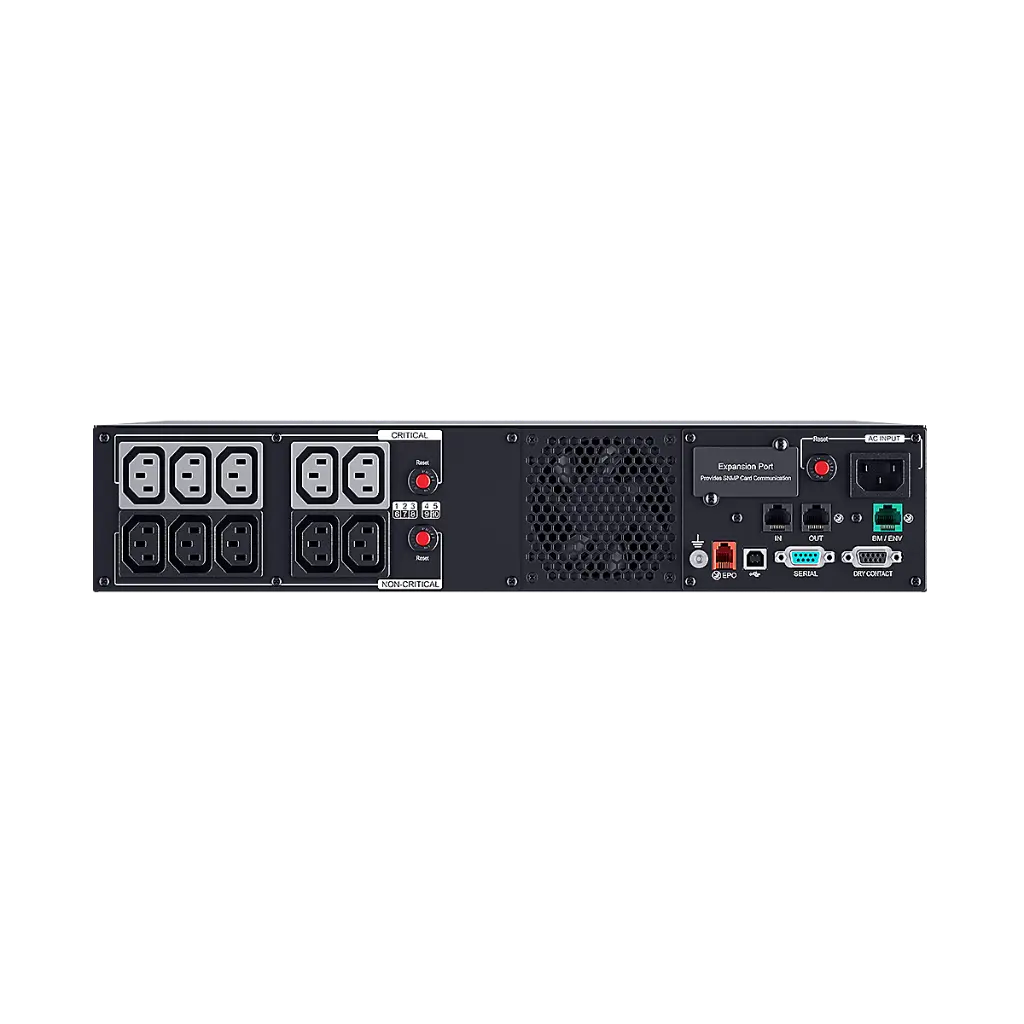

• Provides 10 × IEC C13 outlets (all battery + surge protected), with 5 designated for critical loads and 5 for non-critical loads to prioritize operations.

• Typical transfer time: ~4 ms, rapid engagement when switching to battery.

Physical Specs & Environmental

• Form factor: 2 U rackmount; dimensions: 433 × 86.5 × 412 mm (W × H × D), shipping size ~560 × 275 × 530 mm.

• Weight: approx 20.5 kg (unit) / 29 kg (shipping).

• Noise level: ~52.5 dBA at 1 m; heat dissipation: ~47.4 BTU/hr.

• Operates between 0–40 °C, relative humidity up to 95 %, and altitudes up to ~3 000 m.

Certifications & Warranty

• Certified to CE, UL, FCC Class B, RCM, VCCI, RoHS, and ENERGY STAR compliant.

• Backed by a 3-year warranty on both the UPS and battery. Equipment protection insurance covers up to €100,000 and typical Euro €25,000 value depending on region.

Ideal Use Cases

• Server racks & SMB deployments: With compact 2 U design, high power density, pure sine wave output, and full-rated wattage, it's ideal for SMB servers, network appliances, storage, and telecom gear.

• Network monitoring & remote power management: Support for SNMP/HTTP and EPO makes it suited for headless environments and remotely managed racks.

• Unattended operational environments: Features like dual AVR, hot-swap battery, and energy-saving bypass make routine maintenance seamless.
