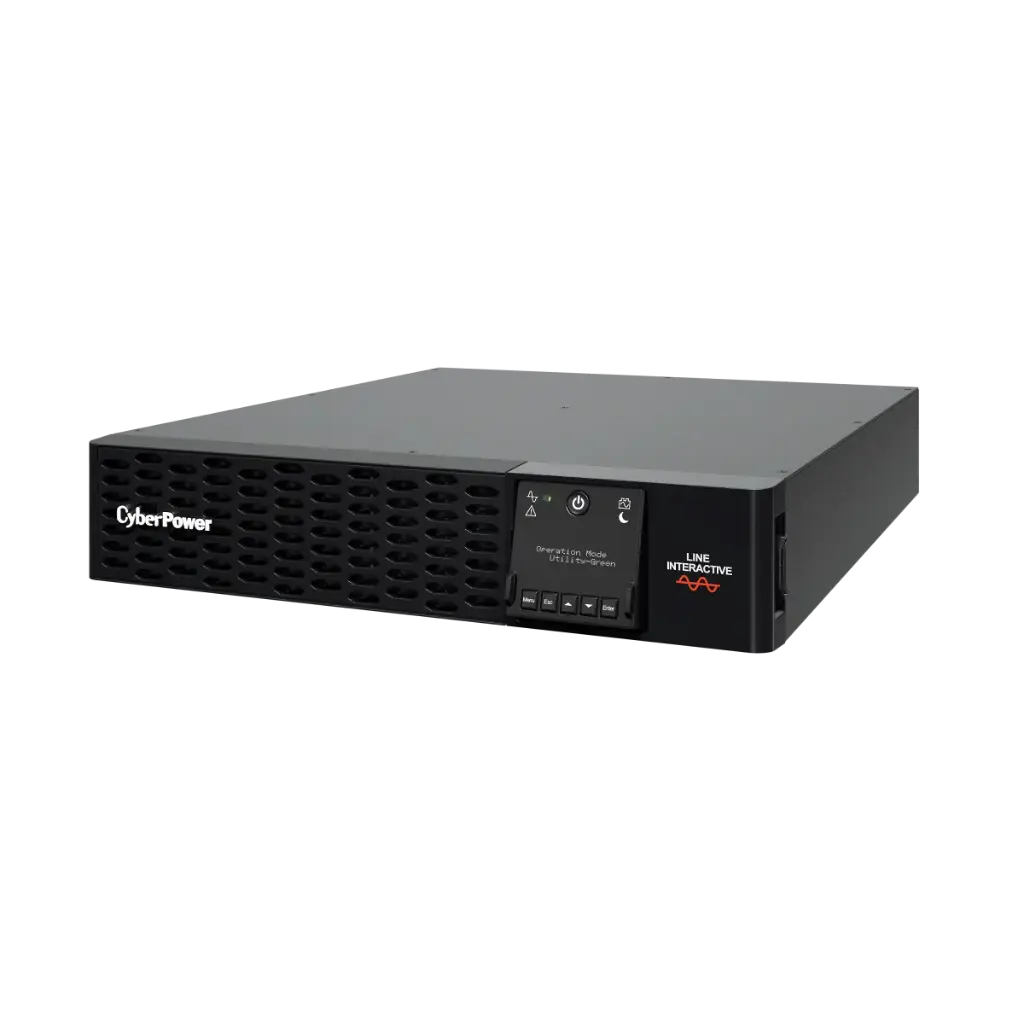

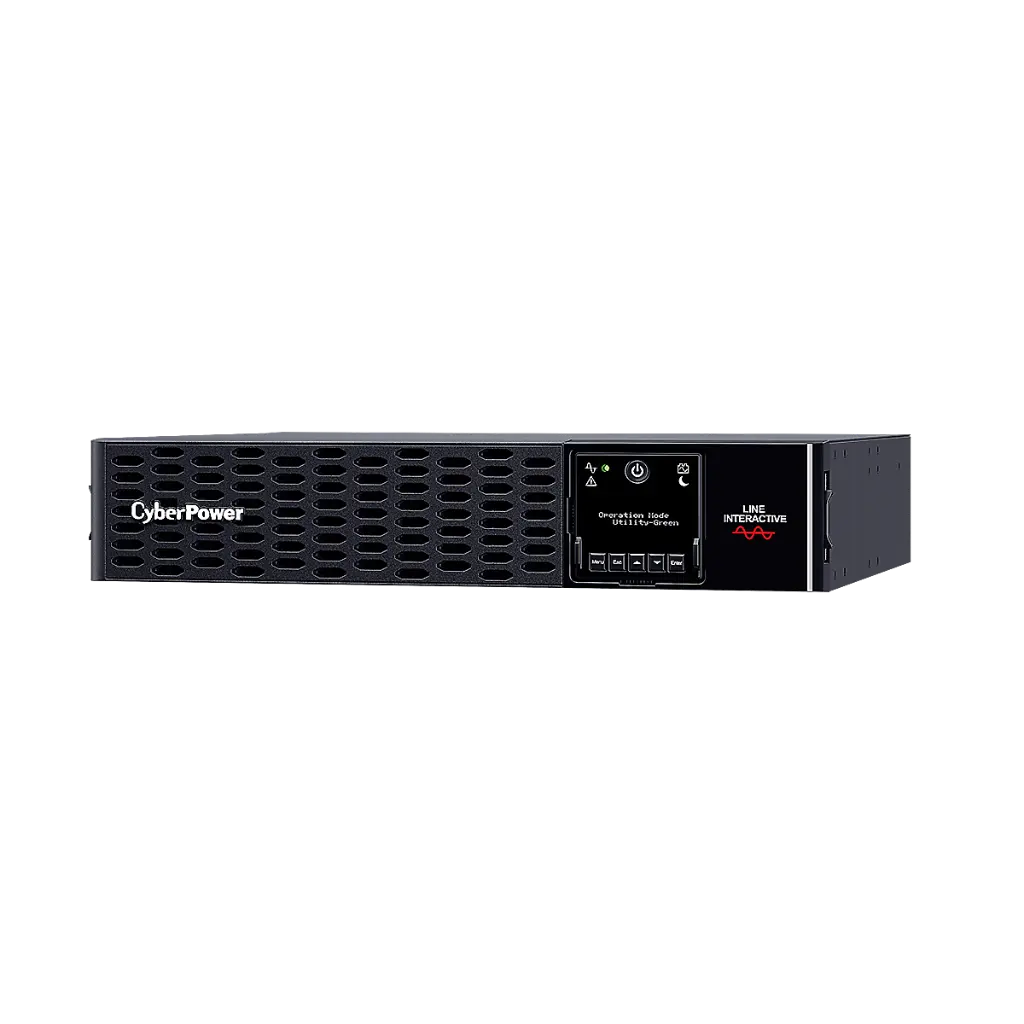

CyberPower PR3000ERT2U - 3 kVA / 3 kW Line Interactive Rackmount UPS (2U)
The PR3000ERT2U is a high-capacity, 2U rack/tower‑convertible UPS designed for demanding environments. Delivering 3 kVA / 3 kW of pure sine wave output and a true 1.0 power factor, it ensures full-rated wattage to handle critical loads reliably in data centres, server rooms, telecom closets, and network racks.
Key Features
Output Waveform: Pure sine wave ensures compatibility with Active PFC power supplies and sensitive electronics.
Topology & AVR: Line‑interactive design with double-boost, single-buck AVR to stabilize voltage without depleting batteries.
Power Factor: Full 1.0 output power factor maximizes usable power from each VA rating.
Battery Management: Featuring two-phase quick charging and Battery Management Technology for optimized battery health. Plus, hot-swappable to ensure uptime during replacements.
High Surge Protection: 2 430 J surge suppression with EMI/RFI line filtering and network protection (RJ‑45/RJ‑11 combo in/out).

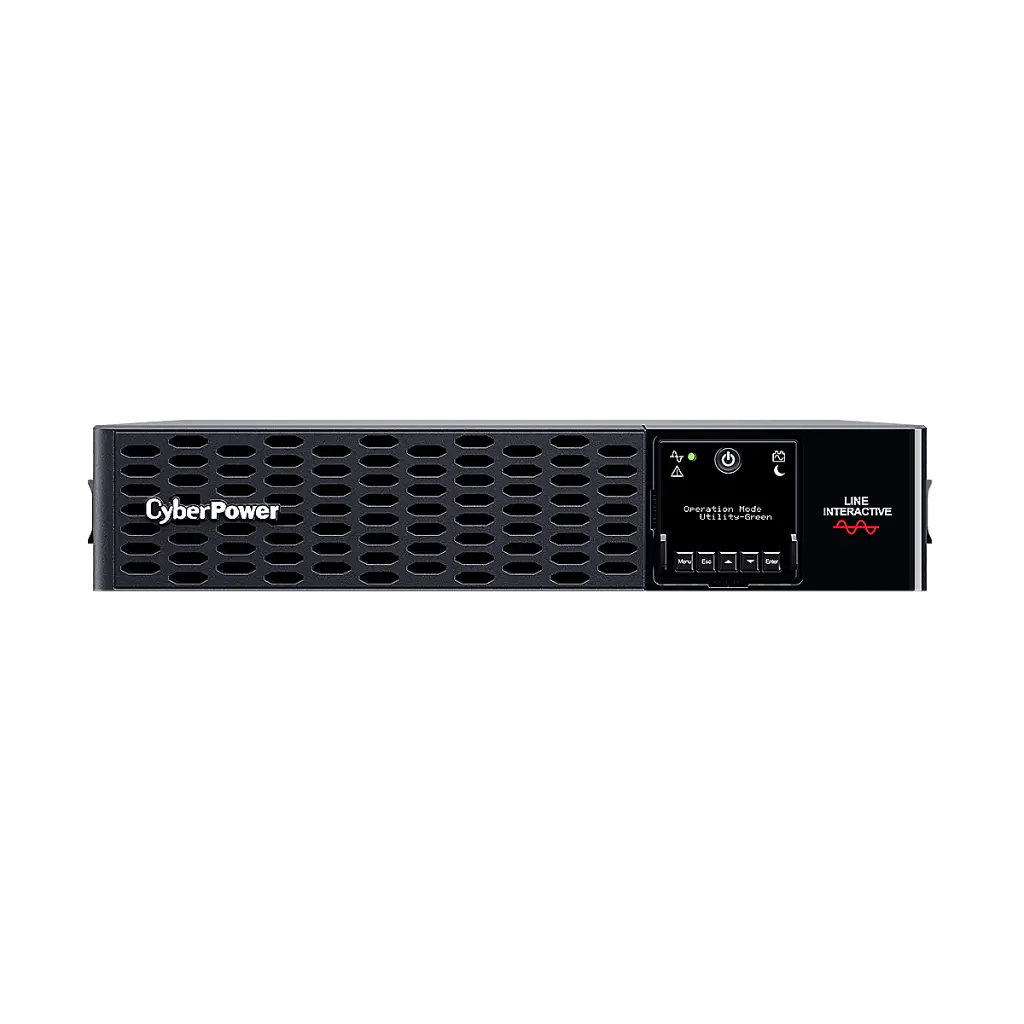

Smart LCD Display: Rotatable matrix LCD shows status, logs, and configuration menus; LED indicators and audible alarms provide clear.
Energy-Saving Bypass: Equipped with GreenPower Bypass Technology to reduce utility mode power consumption.
Connectivity & Management: Includes USB‑HID, RS‑232, dry contact relay, and EPO port; SNMP/HTTP remote management available via optional RMCARD205.
Runtime & Battery Specs
Runtime: ~1.4 minutes at full load (3,000 W); ~6.3 minutes at half load (~1,500 W). Extended durations available at lower power draws (e.g. ~110 min at 300 W, ~152 min at 100 W).
Recharge Time: ~3 hours for a full recharge.
Battery Pack: One sealed lead-acid cartridge (RBP0129) with tool-less, hot-swappable capability.
Outlets & Electrical Specs

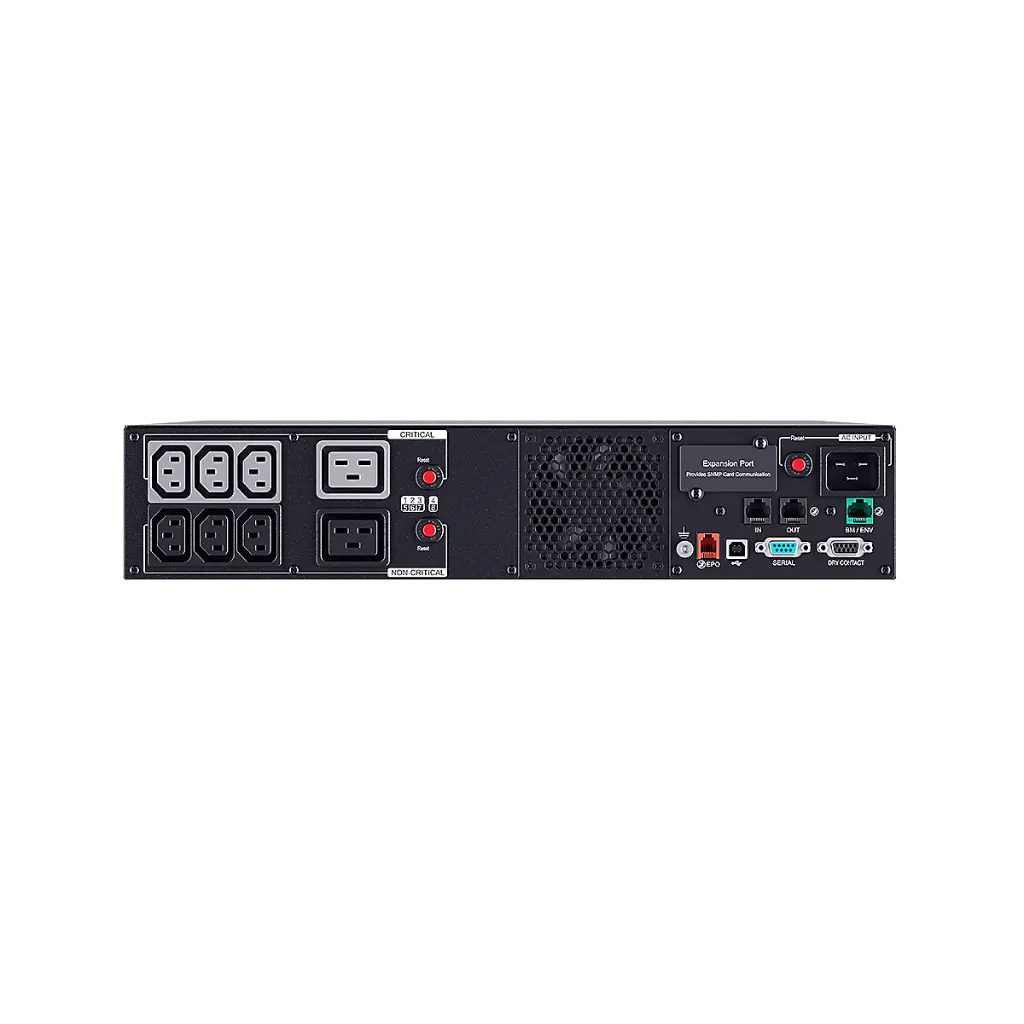

Output Ports: 6 × IEC C13 and 2 × IEC C19 (all surge and battery protected), with outlets partitioned for critical and non‑critical loads.
Transfer Time: ~4 ms for seamless switch-over.
Input Range: 159–288 VAC (selectable up to 151–302 VAC); supports both 50 Hz and 60 Hz frequencies; input connector: IEC C20 rated for 16 A.
Physical & Environmental Specs

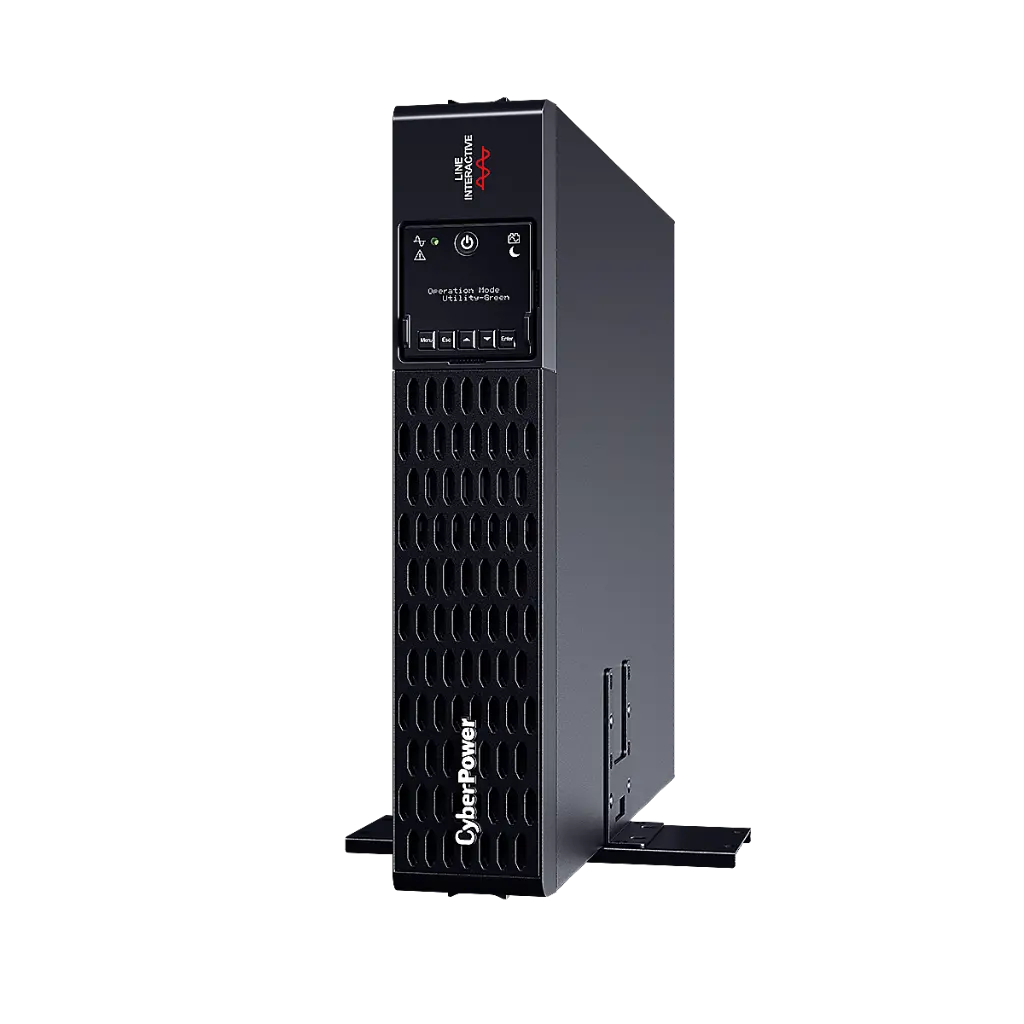

Form Factor: 2 U rack (433 × 86.5 × 500 mm), convertible to tower config; metallic black housing.
Weight: Approx. 32.3 kg (UPS unit); shipping weight ~40.3 kg.
Noise: ~57.5 dBA at 1 m; heat dissipation ~120.8 BTU/h.
Operating Conditions: 0–40 °C, 0–95 % RH (non-condensing), altitude to 3,000 m; storage up to 15,000 m.
Certifications & Warranty
Certified: EN, UL (including UL/cUL), FCC Class A, RoHS, RCM, VCCI, UKCA; Energy Star accredited in ENERGY STAR markets.
Backed by a 3-year limited warranty for the UPS and a 2-year battery warranty. Includes equipment protection coverage up to €100,000 in many regions.
Ideal Use Cases
Mid-to-large server rooms or data centers: With high power capacity and pure sine output, it supports enterprise-class equipment.
Remote or headless environments: Advanced monitoring options (SNMP/HTTP, EPO) and LCD status panel make management easier.
Environments requiring uptime and maintenance flexibility: Quick-charge batteries, hot‑swap power modules, and energy-saving bypass mode minimize interruptions.
Quick Reference Table
Specification | Details |
---|---|
Capacity | 3 000 VA / 3 000 W |
Output Waveform | Pure Sine Wave |
Power Factor | 1.0 (full-rated) |
Runtime (Half Load) | ~6.3 minutes |
Runtime (Full Load) | ~1.3 minutes |
Outlets | 6 × C13 + 2 × C19 (UPS + surge) |
AVR | Double boost / Single buck |
Connectivity | USB‑HID, RS‑232, dry relay, EPO, SNMP/HTTP (optional) |
Dimensions (2 U) | 433 × 86.5 × 500 mm |
Weight | ~32.3 kg |
Noise | ~57.5 dBA |
Warranty | 3 yr UPS; 2 yr battery |
Certifications | CE, UL, FCC, VCCI, UKCA, Energy Star |
