CyberPower PR3000ERTXL2U - 3 kVA / 3 kW Line Interactive UPS (Rackmount or Tower 2U)
The PR3000ERTXL2U is part of CyberPower’s Professional Smart‑App series - a high-performance, rack/tower convertible UPS delivering 3 kVA / 3 kW capacity with pure sine wave output. Designed for advanced IT environments, this model features 1.0 power factor, battery management, hot‑swappable cartridges, and GreenPower bypass technology to maximise runtime, efficiency, and adaptability in server rooms, telecom closets, and data centres.
Key Features
Topology & Output: Line‑interactive design with pure sine wave output ensures full compatibility with Active PFC power supplies and sensitive electronics.
Power Factor & AVR: Offers full-rated 1.0 power factor. Dual-stage AVR (double‑boost, single‑buck) keeps voltage levels stable without battery usage.
Battery Management & Hot Swap: Integrated Battery Management Tech and two‑phase quick‑charge ensure maximum battery life. Tool‑less, hot-swappable battery modules support uninterrupted operations during maintenance.
Surge Protection & Filtering: 2430 J surge suppression with EMI/RFI filtration and RJ‑45 (network) surge protection (1 in/1 out) included.
LCD & Alerts: Rotatable matrix LCD displays power status, load, battery, alarms, logs, and more. Complemented by LED indicators and audible alarms for fault, overload, and battery alerts.
Energy-Saving Bypass: GreenPower UPS™ technology reduces power draw and heat during normal utility operation.
Connectivity & Management: Includes USB-HID, RS‑232, dry contact, and EPO ports; supports optional SNMP/HTTP card (e.g. RMCARD205) for network-based UPS monitoring and alerts.
Runtime & Battery Specs
Estimated Runtime: ~7.1 min at half load (≈ 1,500 W), ~1.7 min at full load (3,000 W). At lighter draws (e.g. 100 W), runtime can extend well beyond 160 minutes.
Recharge Time: ~3 hours to full charge.
Battery Module: One sealed lead-acid cartridge (RBP0129) hot‑swappable; compatible extended‑battery support available.
Outputs & Electrical Specs

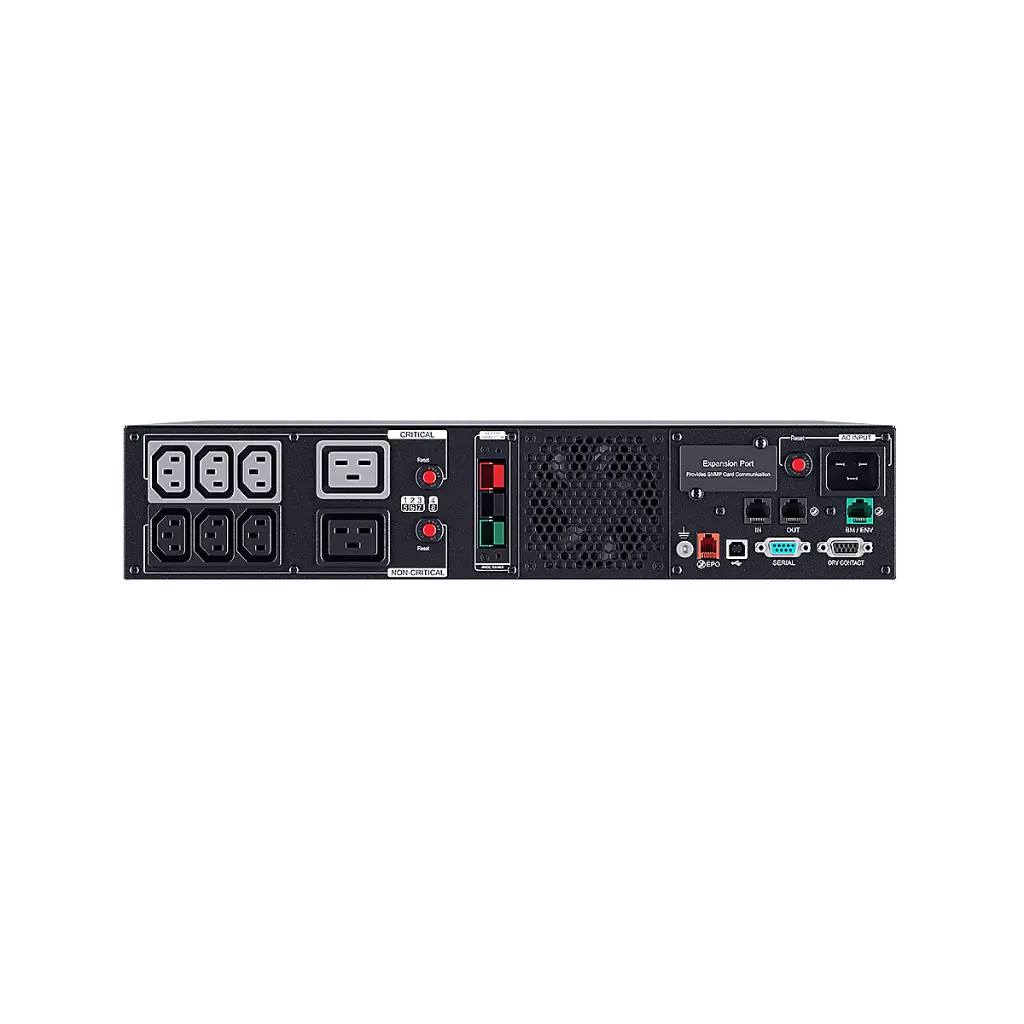

Outlets: 6 × IEC C13 and 2 × IEC C19 (all battery + surge protected), with critical/non‑critical load grouping.
Input: IEC C20 inlet, rated for up to 16 A; input voltage range ~159–288 VAC (adjustable 151–302 VAC); auto-sensing 50/60 Hz capable.
Transfer Time: ~4 ms switchover typical.
Physical & Environmental
Form Factor: 2U rackmount, convertible to tower; dimensions ~433 × 500 × 86.5 mm; weight approx. 31.8 kg (shipping ~40.8 kg).
Noise & Thermal: Audible operating noise ranges from ~38.5 to 57.5 dBA; thermal dissipation up to ~120.8 BTU/hr under load.
Operating Environment: Rated for 0–40 °C, 0–95 % humidity (non-condensing), altitude ≤ 3,000 m; storage up to 15,000 m.
Certifications & Warranty
Certified to CE, UL/cUL, FCC Class A, CISPR 22 Class A, IEC 62040‑2, VCCI, RCM, and RoHS; ENERGY STAR qualified in applicable regions.
Backed by a 2‑year limited warranty (UPS & battery) with equipment protection coverage up to €100 000 in many regions.
Who Should Consider It
SMB/Enterprise IT Infrastructure: Compact yet powerful (3,000 W capacity), perfect for critical server, NAS, telecom, and network racks.
Managed & Remote Deployment: Offers remote SNMP/HTTP control, EPO support, and clear local diagnostics via LCD and alerts.
Uptime-Focused Environments: Hot-swappable batteries, efficient AVR, and GreenPower bypass enable seamless maintenance without service interruption.
Quick Specs Summary
Feature | Specification |
---|---|
Capacity | 3 000 VA / 3 000 W |
Output Waveform | Pure Sine Wave |
Power Factor | 1.0 |
Runtime | ~7.1 min at half load, ~1.7 min at full load |
Outlets | 6 × C13 + 2 × C19, all UPS + surge |
AVR | Double Boost / Single Buck |
Connectivity | USB, RS‑232, RJ‑45 surge line, EPO, SNMP-capable |
Form Factor | 2U rack / tower convertible |
Weight | ~31.8 kg |
Noise / Heat | ~38–57 dBA; ~120.8 BTU/hr |
Warranty | 2 years UPS & battery; €100k IPS |
