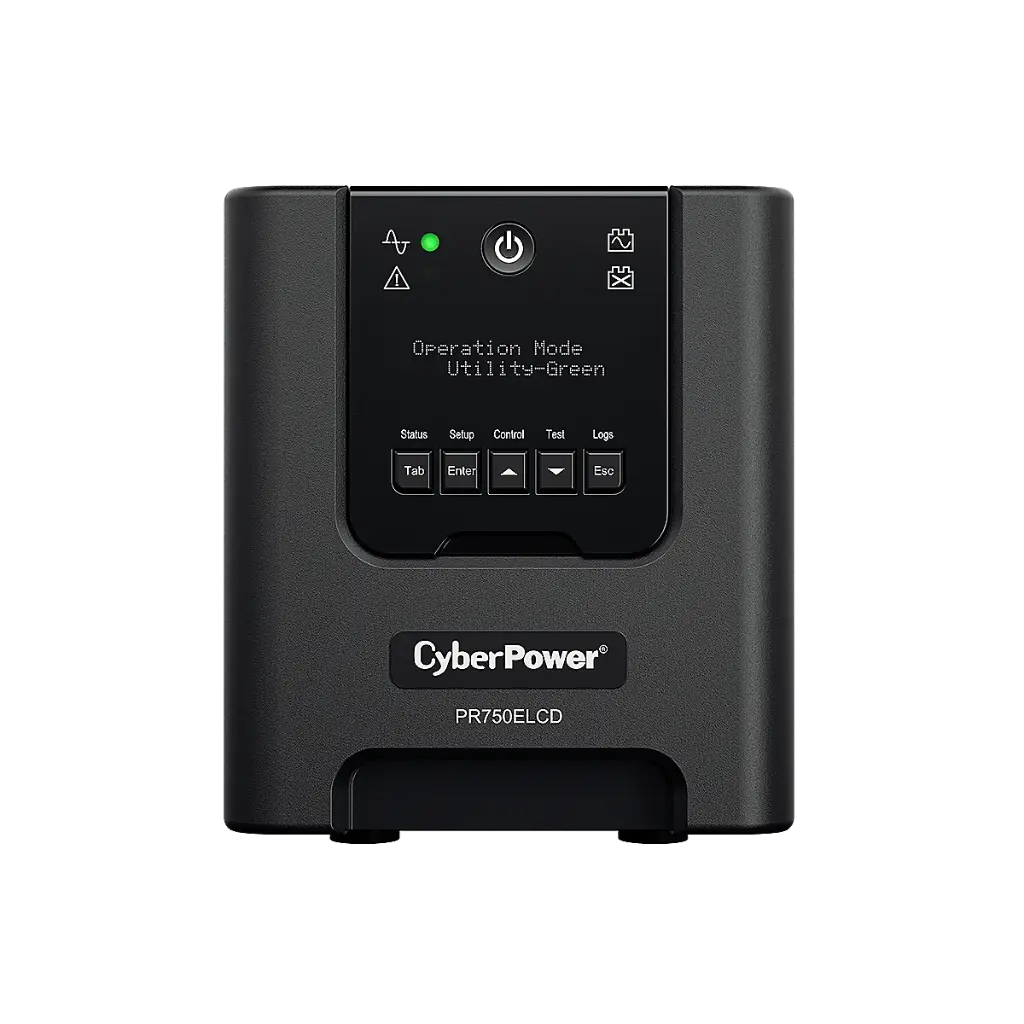

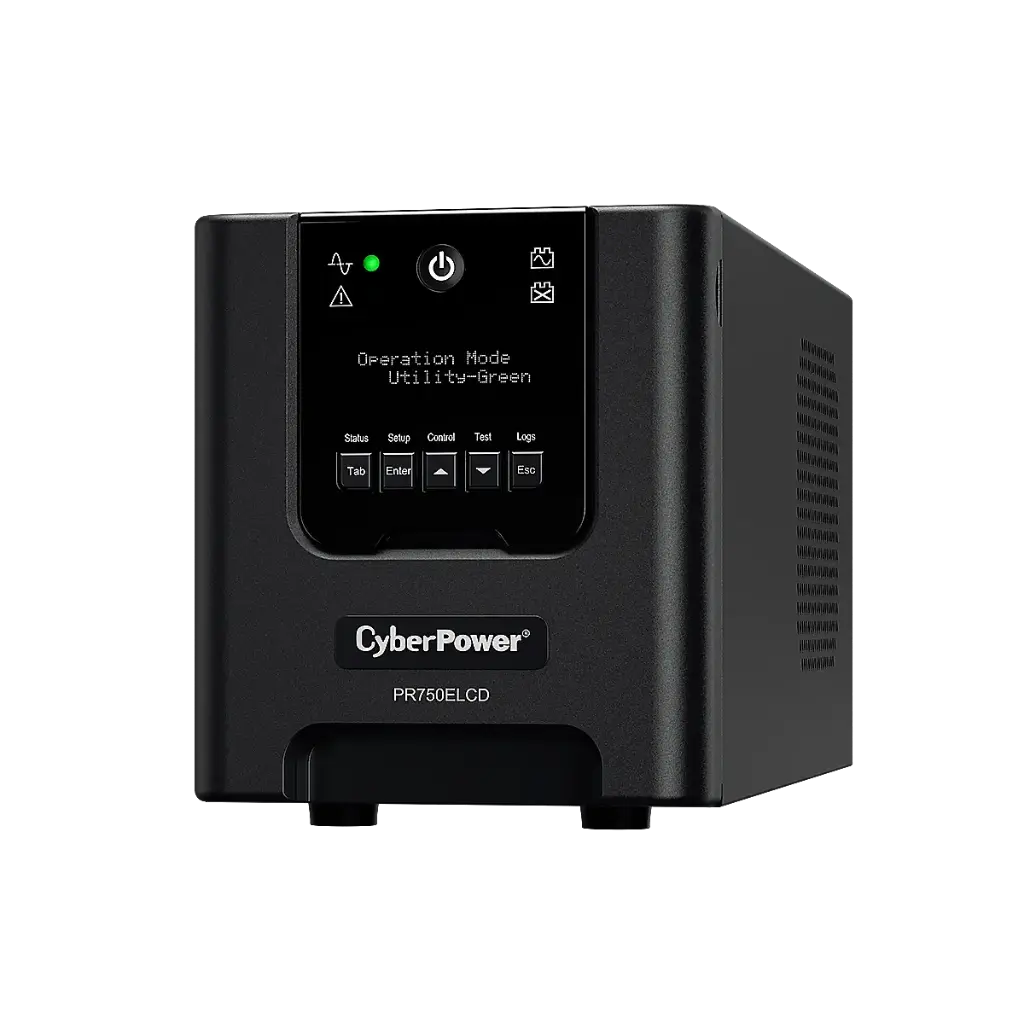

CyberPower PR750ELCD - Premium Professional‑Tower UPS (675W 750VA)

The CyberPower PR750ELCD is a compact yet powerful 750 VA (675 W) line‑interactive UPS designed to protect workstations, servers, telecommunications gear, and other critical office infrastructure. It delivers pure sine‑wave output alongside AVR (Automatic Voltage Regulation), providing reliable power conditioning even during voltage sags or surges.

Key Features

• Line‑Interactive topology with GreenPower UPS™ Technology for high efficiency and lower energy consumption

• Pure sine‑wave output ensures compatibility with active PFC power supplies and sensitive electronics

• AVR with Double‑Boost / Single‑Buck corrects voltage fluctuations without draining battery life prematurely

• Built‑in surge protection and EMI/RFI filtering, rated at approx. 405 J, to shield against spikes and interference

Power & Battery Specs

• 750 VA (675 W) capacity, output voltage 230 Vac ± 5 %, with up to 10 A current and 0.9 power factor

• Typical transfer time of 4 ms for rapid switchover to battery

• Battery runtime: ~10.5 min at half load, ~2.5 min at full load; recharge time ~8 hours

• Uses two user-replaceable 12 V, 7 Ah VRLA batteries, hot-swappable for minimal downtime

Management & Connectivity

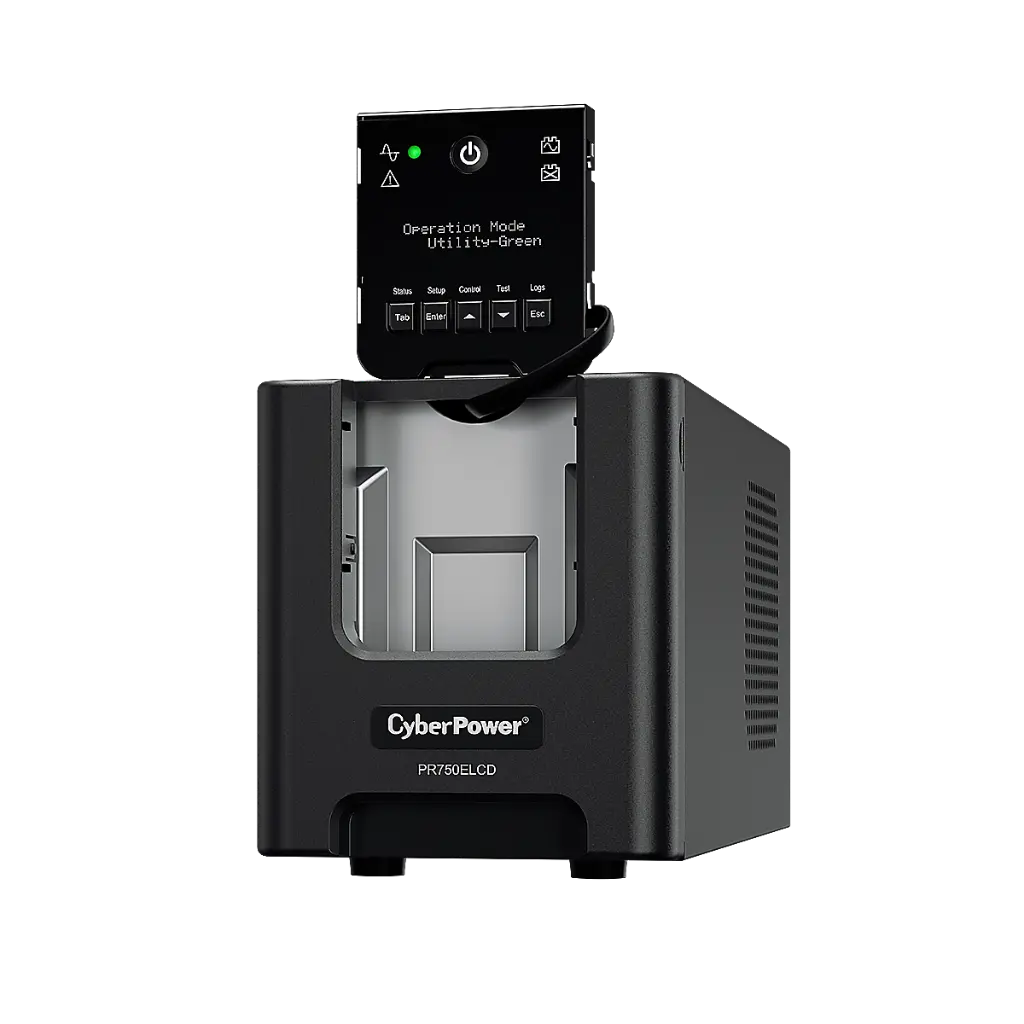

• Multi-function LCD display, with detachable and rotatable panel for flexible installation

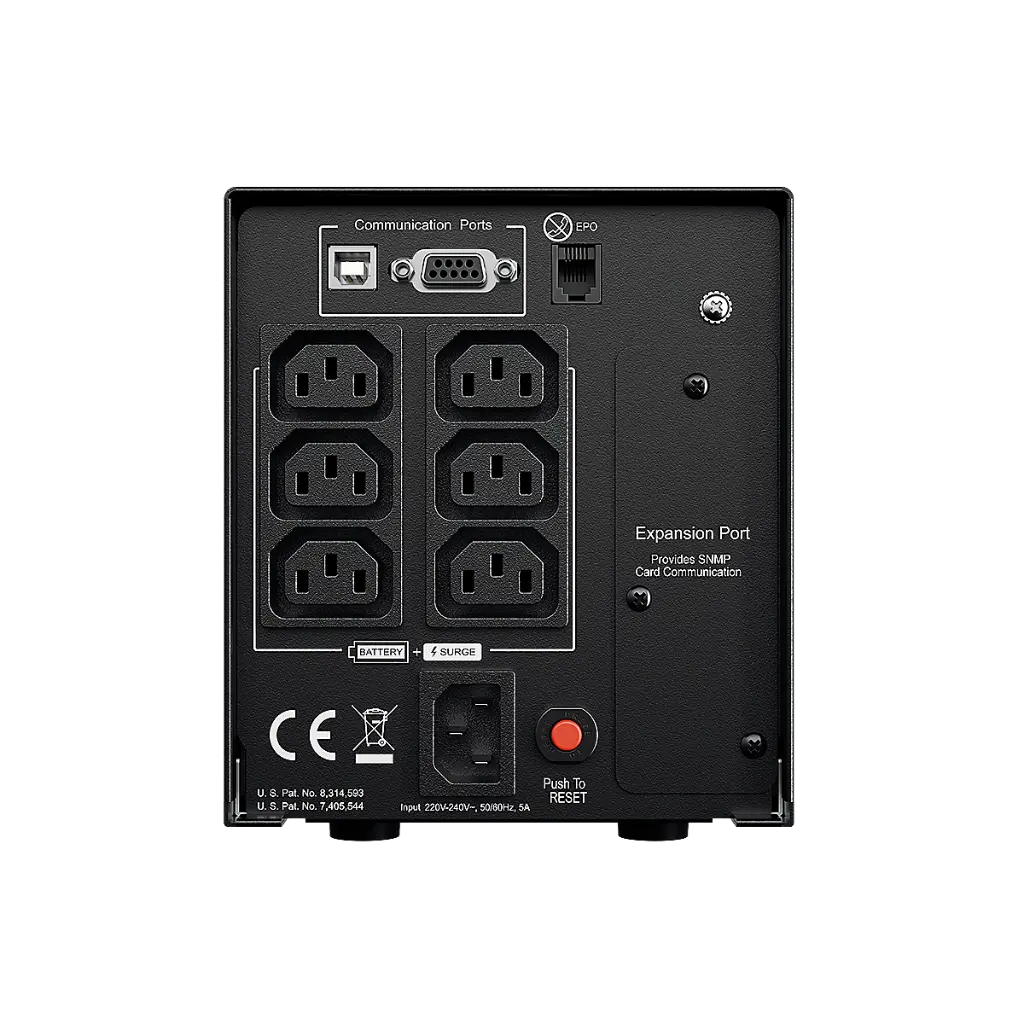

• USB and serial COM ports for local communications; supports CyberPower’s PowerPanel® Business Edition for shutdown management, logging, and reporting

• Optional SNMP/HTTP remote management card enables network monitoring and remote configuration via web browser

• Supports EPO (Emergency Power Off) interface for rapid shutdown in critical environments

Design & Build

• Tower form factor, with all‑metal housing in matte black finish; weighs approx. 12.3 kg, dimensions ~349 × 138 × 162 mm

• Certified to CE, RoHS, EAC, and RCM standards

• Built for Europe’s 230 V systems; supports operating temperatures from 0 °C to 40 °C, storage from −15 °C to 45 °C, and humidity up to 95% non‑condensing

Protection & Safety

• Audible alarms notify for battery mode, low battery, overload, and fault conditions

• Built‑in overload protection via internal current limiting and circuit breaker mechanisms

• Offers EMI/RFI noise filtering to minimize interference with connected devices

Why Choose The PR750ELCD

• Delivers enterprise-grade UPS capabilities in a compact, affordable package

• Pure sine‑wave and AVR support modern PFC power supplies and sensitive devices

• Hot-swappable batteries and remote management options maximize uptime and flexibility

• Certified protection backed by CyberPower’s equipment policy of up to €100,000 coverage in certain regions
