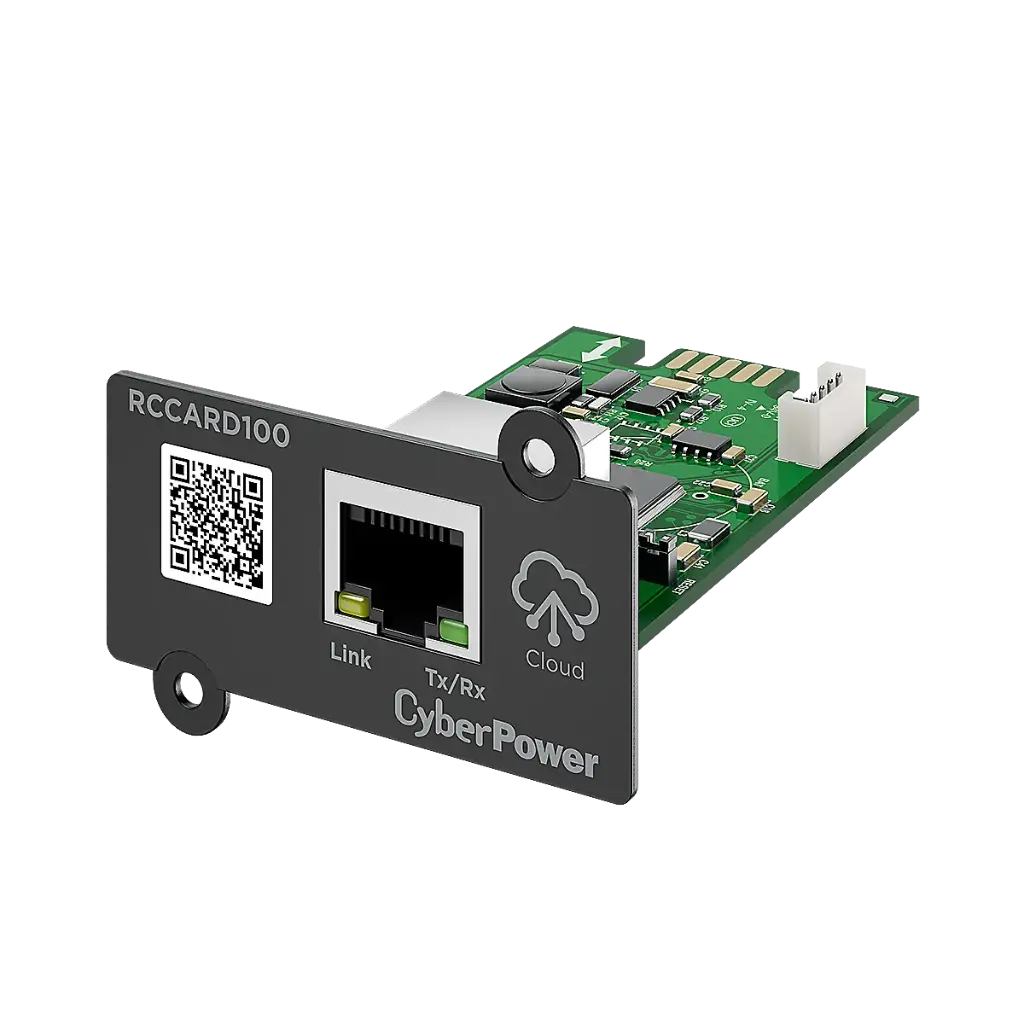

The CyberPower RCCARD100 is a compact, plug-and-play management add-on designed for select CyberPower rack‑mount UPS models. When installed, it enables cloud-based remote monitoring and management via the secure PowerPanel® Cloud portal or mobile app, with a complimentary three-year service subscription.
Key Features
Seamless Cloud Management: Integrates your UPS with the PowerPanel Cloud system for 24/7 remote access and control.
Quick Setup via QR Code: Easily register and register your UPS by scanning a QR code with the PowerPanel mobile app.
Plug-and‑Play & Hot‑Swappable: Installation or replacement is effortless and does not interrupt UPS operation.
Upgradeable Firmware: Firmware updates are performed through the PowerPanel interface to ensure feature improvements and security enhancements.
Event Notifications: Get immediate alerts for power events via email or mobile push notifications.
Technical Specifications
| Specification | Details |
|---|
| Interface | 1 × RJ‑45 Ethernet (10/100Base‑T) |
| Data Link Protocol | IEEE 802.3 / 802.3u (10/100 Mbps) |
| LEDs | TX/RX and Link indicators |
| Dimensions (W × H × D) | 54 × 36.1 × 76.5 mm |
| Weight | ~31 g |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –10 °C to 50 °C |
| Operating Humidity | 0–90% (non‑condensing) |
| Storage Humidity | 0–95% (non‑condensing) |
| Certifications | CE, FCC Class B, RoHS |
| Warranty | 2‑year or 3‑year (region‑dependent) |
In the Box
Ideal For
IT admins looking for centralized visibility into UPS status across multiple locations
Service engineers needing proactive alerts and diagnostics
Businesses that require secure, off-site access to UPS performance and event logs
