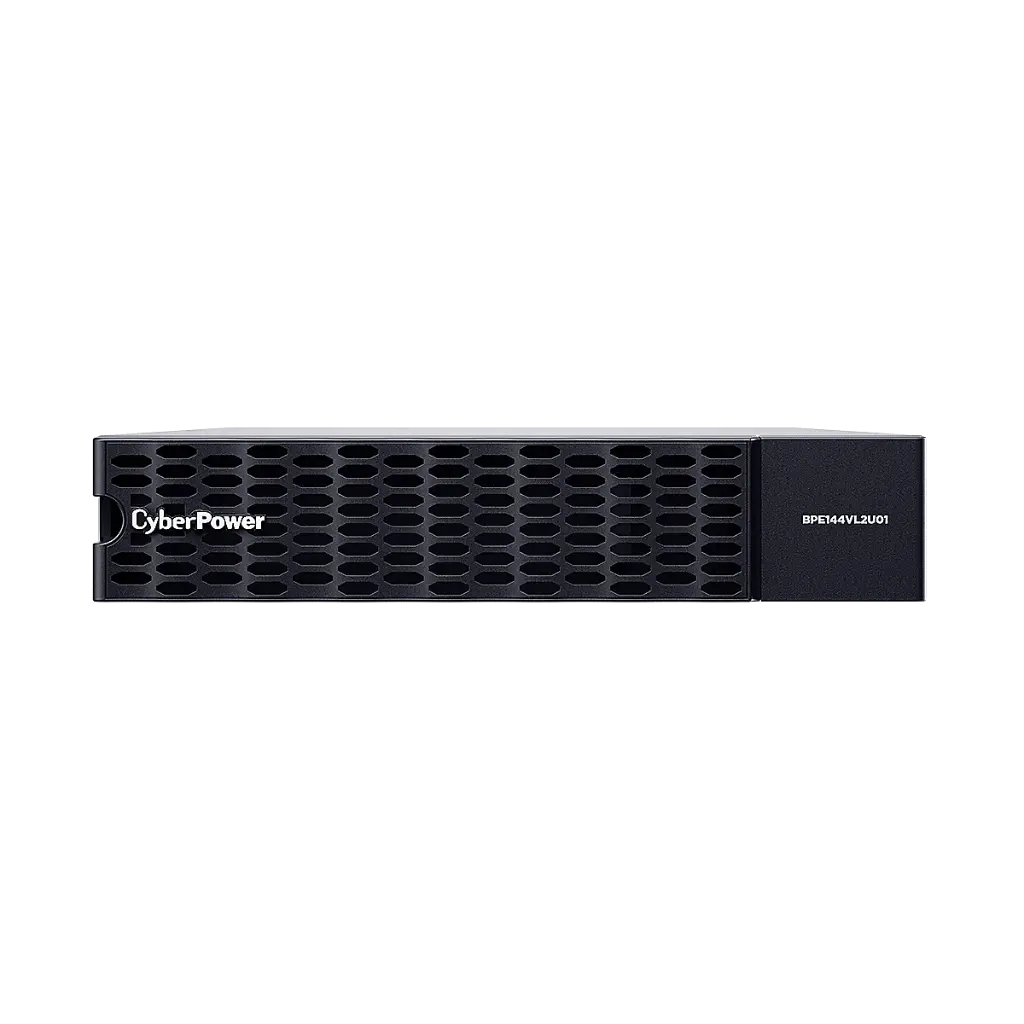

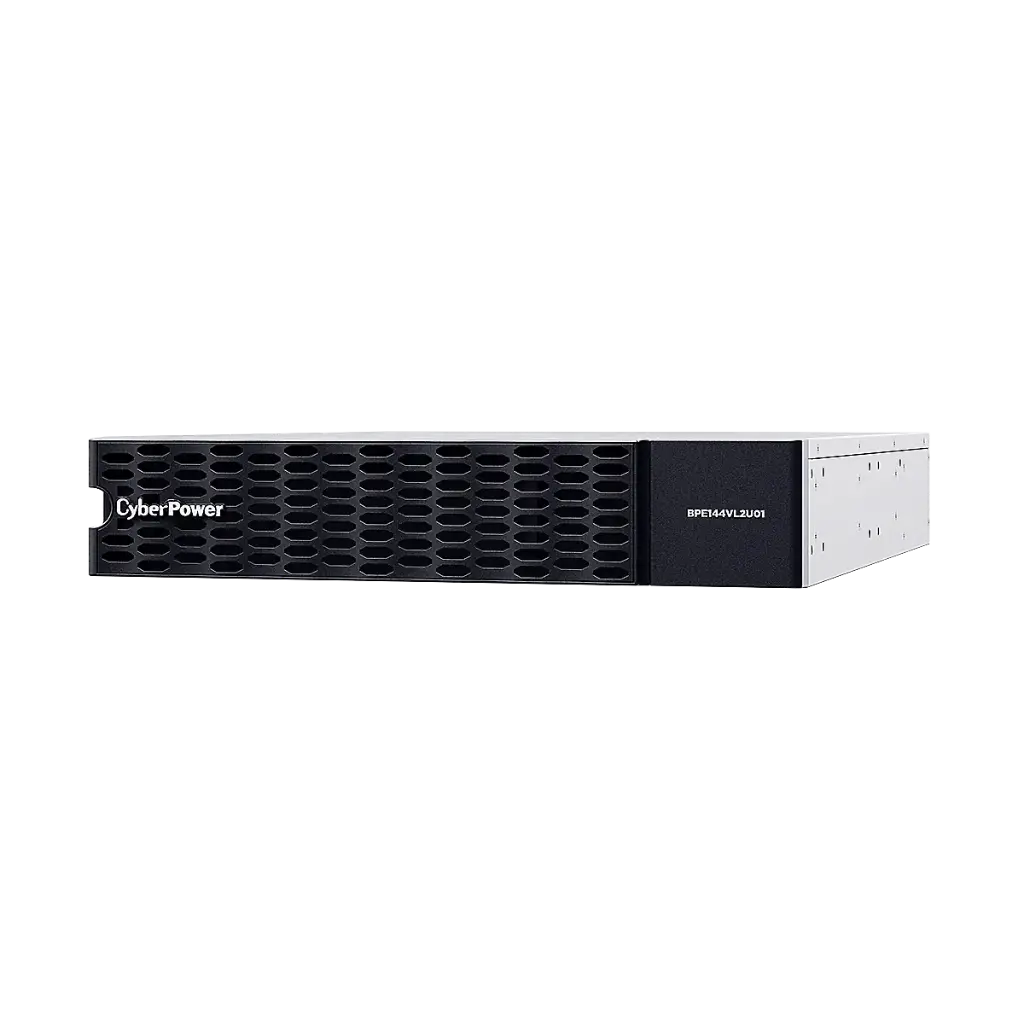

CyberPower BPE144VL2U01 - Extended Battery Module (EBM)
The CyberPower BPE144VL2U01 is a 2U rack/tower-convertible Extended Battery Module (EBM) engineered to expand runtime for select CyberPower UPS models such as the OL5KERTHD and OL6KERTHD. It enables seamless scalability of battery capacity with enhanced charging efficiency and minimal downtime.
Key Features

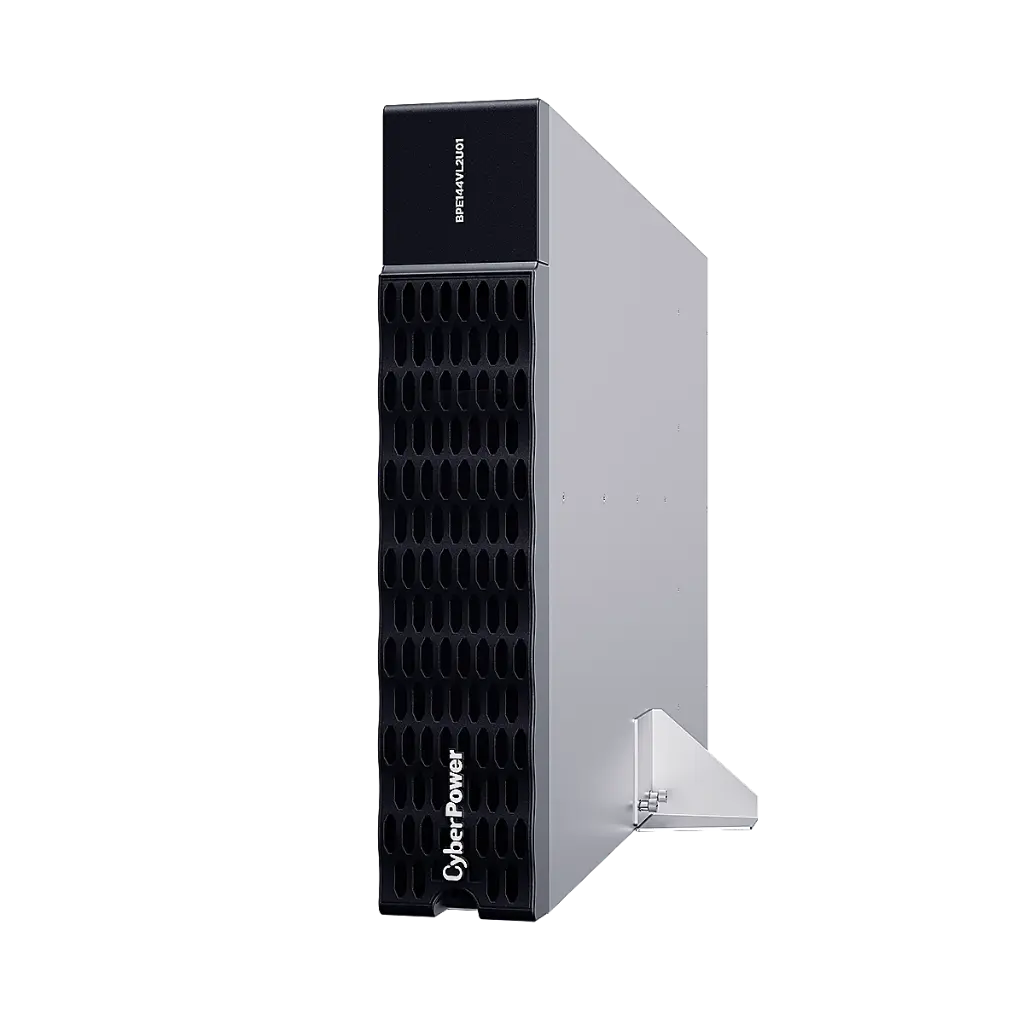

Rack-/Tower‑convertible form factor (2U), with tool-free front panel access and included rack mount kit.
Hot-swappable sealed lead‑acid (VRLA) batteries: 12 batteries, 12 V / 9 Ah each, designed for long-term stability.

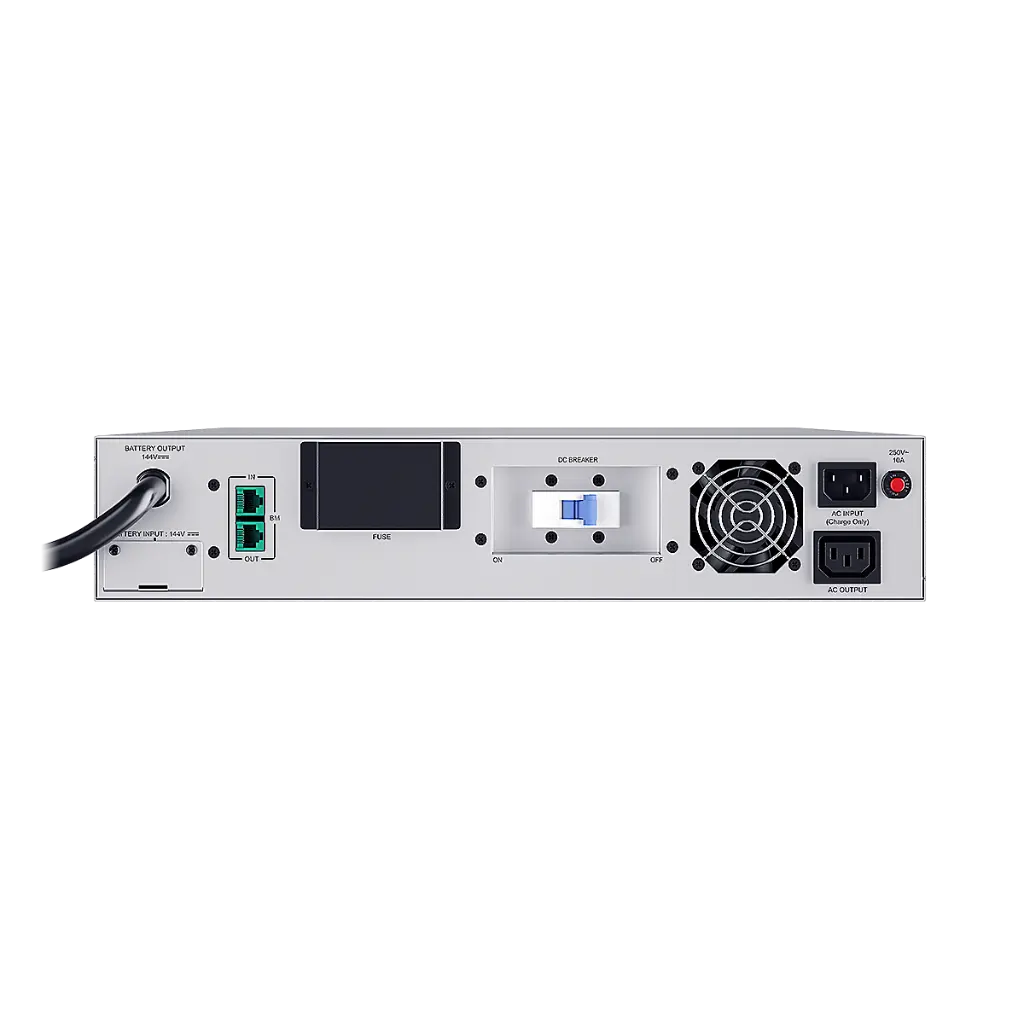

Built‑in fast charger, enabling direct charging from AC mains without relying on the UPS, reducing total recharge times when multiple EBMs are connected.
EBM expansion capability, supporting daisy-chaining of multiple battery modules via DC plug-and-play connectors.
Smart Battery Management & Equalization Technology ensures uniform charging and improved service life across batteries.
Rugged all-metal housing and industrial-rated design certified to CE, RoHS, EAC, RCM, and BSMI standards.
Specifications
| Specification | Details |
|---|---|
| Output Voltage | 144 V DC |
| Rated Current | 55 A |
| Battery Configuration | 12 × 12 V / 9 Ah VRLA batteries |
| Battery Runtime Upgrade | Supports up to 10 EBMs in series |
| Form Factor | 2U rack‑mount or freestanding tower |
| Dimensions (W×D×H) | 433 × 720 × 86.5 mm |
| Weight | ~44 kg (shipping 53.1 kg) |
| Recharge Time | 0–90% in ~4 hours |
| Operating Temp & Humidity | 0 °C–40 °C, 0–90% non‑condensing |
| Certifications | CE, RoHS, EAC, RCM, BSMI |
Recharge time, weight, environmental and compliance specs vary slightly by region.
Benefits & Use Cases
Extended autonomy: Ideal for data centers, server rooms, and critical infrastructure requiring extra runtime during outages.
Minimal downtime: Hot-swappable batteries and built-in charging allow module servicing without interrupting connected loads.
Scalable design: Modular chaining lets you grow runtime capacity by adding more EBMs as needed.
Efficient charging: Mains-based fast charging eliminates reliance on UPS internal charger, better suited when multiple EBMs are used.
Compatibility
Engineered specifically for CyberPower UPS systems, notably the OL5KERTHD and OL6KERTHD models. Please verify compatibility before installation.
