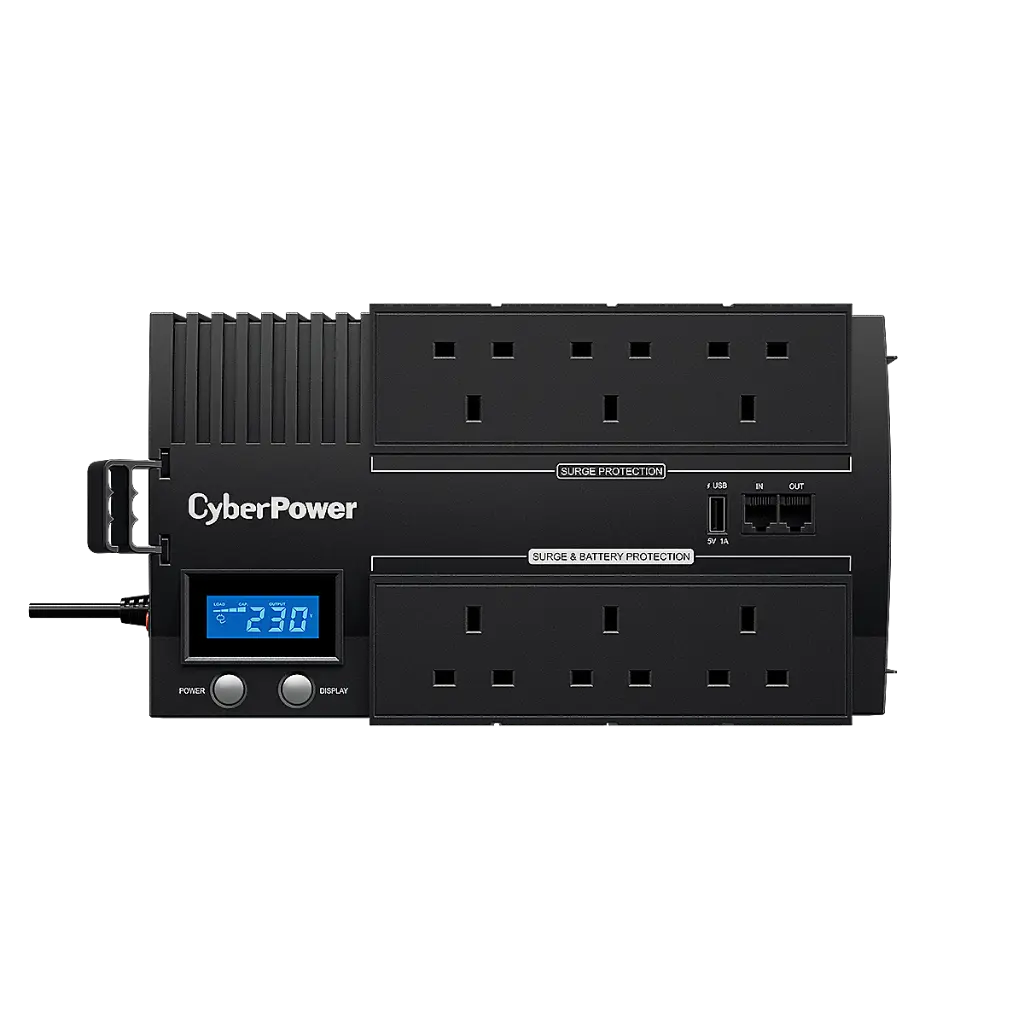

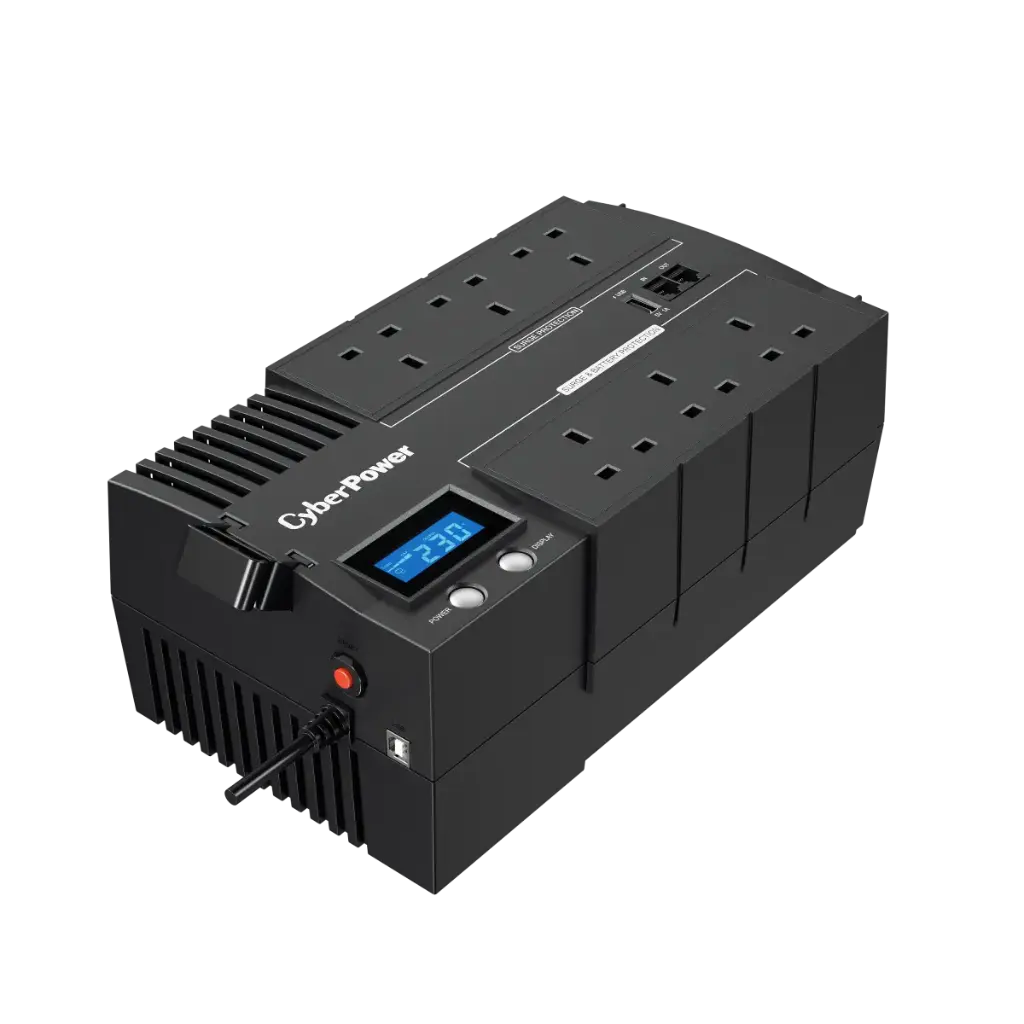

CyberPower BR1200ELCD-UK – 1.2 kVA / 720 W Line Interactive UPS
Efficient, compact power protection ideal for home offices, small businesses, or network setups under UK voltage.
Core Features & Advantages
Line‑Interactive with AVR (Automatic Voltage Regulation)
Automatically corrects incoming voltage from approximately 170 V up to 290 V—keeping your gear safely powered without unnecessarily switching to battery mode.
GreenPower™ Energy‑Saving Technology
Minimises power consumption during normal operation, reducing running costs and extending battery lifespan.
Compact Brick Design with Wall‑Mount Option
Sleek and space-efficient, with an LCD panel that shows load percentage, runtime, battery level, and alarm status.
Surge & Data‑Line Protection
Shields against power surges using EMI/RFI filters and RJ‑11/RJ‑45 ports for network and phone line protection.
Reliable Backup Power with Fast Response
Offers simulated sine-wave output and <4 ms transfer time to minimise downtime during switchover.
Technical Specifications
Capacity: 1,200 VA / 720 W output
Input Range: 170–290 V AC, 50/60 Hz
Output Voltage: 230 V ±10%, 50/60 Hz
Waveform: Simulated Sine Wave
Transfer Time: ~4 ms
Surge Rating: ~125 J
Filtering: EMI/RFI noise suppression
Battery & Runtime
Sealed lead‑acid VRLA battery
~9 minutes runtime at half load; ~2 minutes at full load
Recharge in approx. 8 hours; supports cold‑start functionality
Ports & Interface
Outlets: 6 × UK mains sockets
USB‑A port (5 V/1 A) for charging
RJ‑11/RJ‑45 (combo) ports (1‑in, 1‑out) for line protection
USB interface for PowerPanel® software support
Environmental & Physical
Size (HxWxD): ~118 × 166 × 288 mm; weighs ~8.2 kg
Noise level: ~40 dBA at 1.5 m
Operating conditions: 0–40 °C, up to 90 % humidity, altitude up to 3,000 m
CE & RoHS certified; backed by a 2‑year UK warranty
Benefits at a Glance
Energy-efficient and eco-friendly, ideal for long-term use
Reliable voltage regulation, reducing unnecessary battery drain
Clear, real-time status information on LCD for peace of mind
Compact form, easily wall-mounted or tucked away
Essential surge and telecom protection included
Good runtime for short outages or controlled shutdowns
