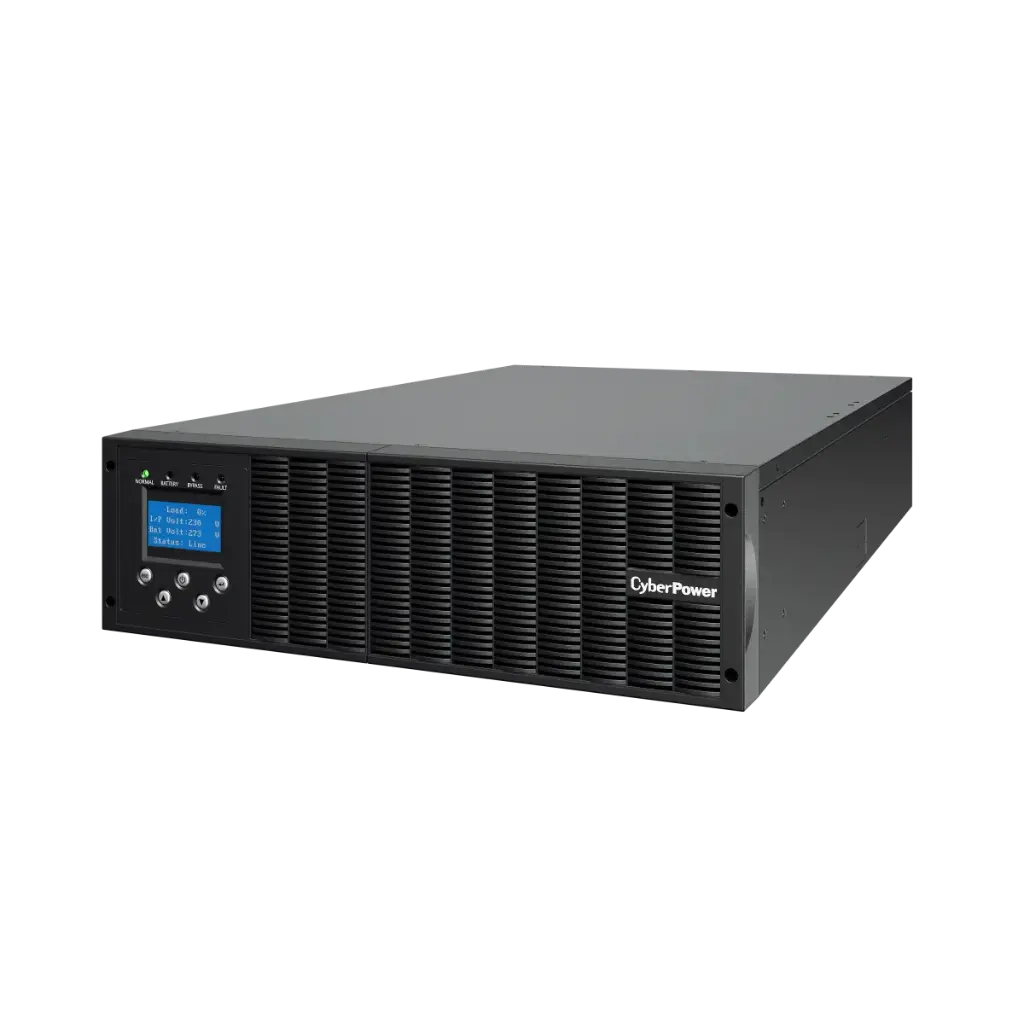

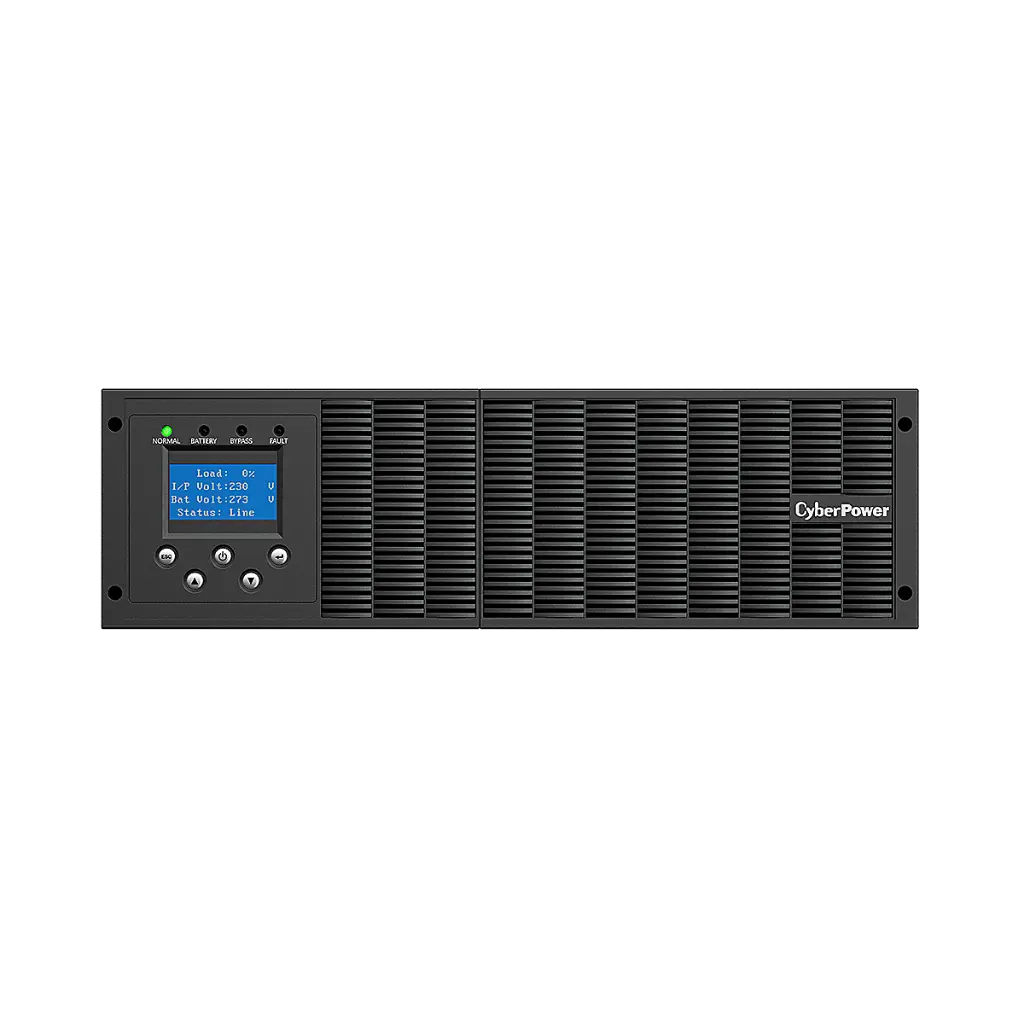

CyberPower OLS6000ERTXL3U - 6 kVA (5.4 kW) Online Double‑Conversion UPS (3U Rackmount)
The OLS6000ERTXL3U is a professional-grade Online Double-Conversion UPS designed to deliver pure sine-wave power with 0 ms transfer time, ensuring uninterrupted performance for mission-critical hardware. Rated at 6000 VA / 5400 W, it's well-suited to server racks, NAS devices, surveillance systems, edge infrastructure, or emergency systems.

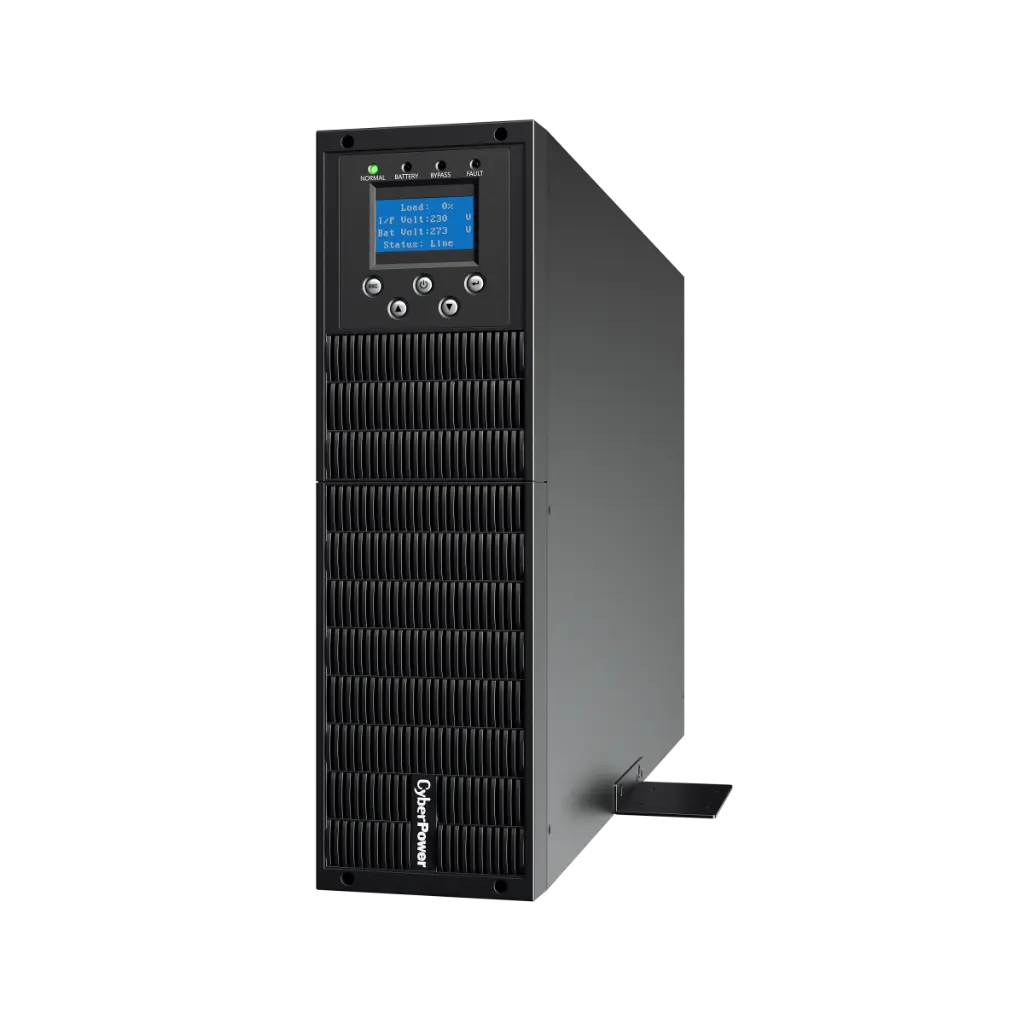

Its rack/tower‑convertible 3U form factor and rugged metal housing make it a flexible choice for various installations.
Key Features
Online (Double‑Conversion) Topology with Pure Sine Wave output, compatible with active‑PFC devices
ECO Mode with up to 96 % efficiency under light loads
Maintenance Bypass Switch for safe service access without interrupting protected loads
Smart Battery Management (SBM) with zero transfer time on utility failure
Expandable via External Battery Modules (EBMs) for prolonged runtime
Comprehensive protection: surge/spike suppression, EMI/RFI filtering, overload protection

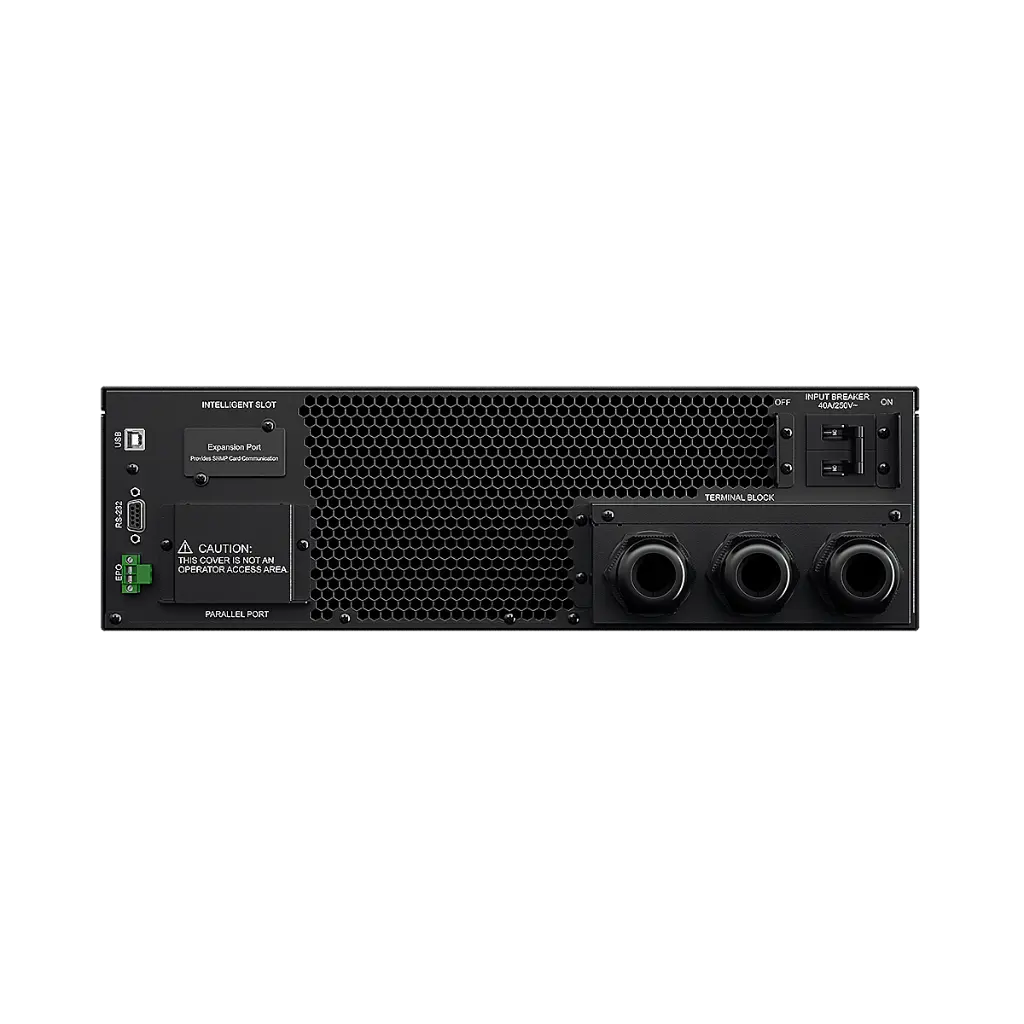

Connectivity: RS‑232 and USB ports, optional SNMP/HTTP remote management card
Emergency Power Off (EPO) port for high‑risk environments
Technical Specifications
| Specification | Details |
|---|---|
| Power Capacity | 6000 VA / 5400 W |
| Output Voltage | 208 / 220 / 230 / 240 V ± 1 % |
| Topology | Online Double-Conversion |
| Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Efficiency (ECO Mode) | Up to 96% |
| Power Factor (Output/Input) | 0.9 / 0.99 |
| Surge Energy Rating | 445 J |
| Output Voltage Regulation | ± 0.1 % |
| Crest Factor | 3:1 |
| Runtime Performance | Line mode: ~10 min @ 105–125% load; battery mode: ~2 min @ 105–125% load |
| Form Factor | 3U (Rack / Tower Convertible) |
| Dimensions (W×D×H) | ~438 × 680 × 130.5 mm (≈ 17.3″ × 26.8″ × 5.1″) |
| Weight | ~17.5 kg (≈38.6 lbs) |
| Operating Conditions | 0–40 °C; 0–90% non-condensing humidity |
| Storage Conditions | –15–45 °C; 0–95% non-condensing humidity |
| Noise Level (Battery Mode) | ~60 dBA at 1.5 m |
| Certifications | CE, RoHS |
Benefits & Use Cases
Delivers uninterrupted pure sine wave output to safeguard sensitive IT gear from voltage irregularities.
The ECO-mode enhances energy efficiency during normal operation.
Expandable battery capability via EBMs lets you scale runtime as needed.
Maintenance bypass ensures equipment remains powered even during servicing.
Ideal for server rooms, telecom closets, edge deployments, and mission-critical systems with stringent uptime demands.
Compatibility & Accessories
Compatible with CyberPower external battery modules (e.g., BPSE240V75ART3UOA) for extended runtime.
Supports optional SNMP/HTTP management card for network-based monitoring and control.
Compatible with PowerPanel Business Edition for logging, alerting, and safe system shutdown.
