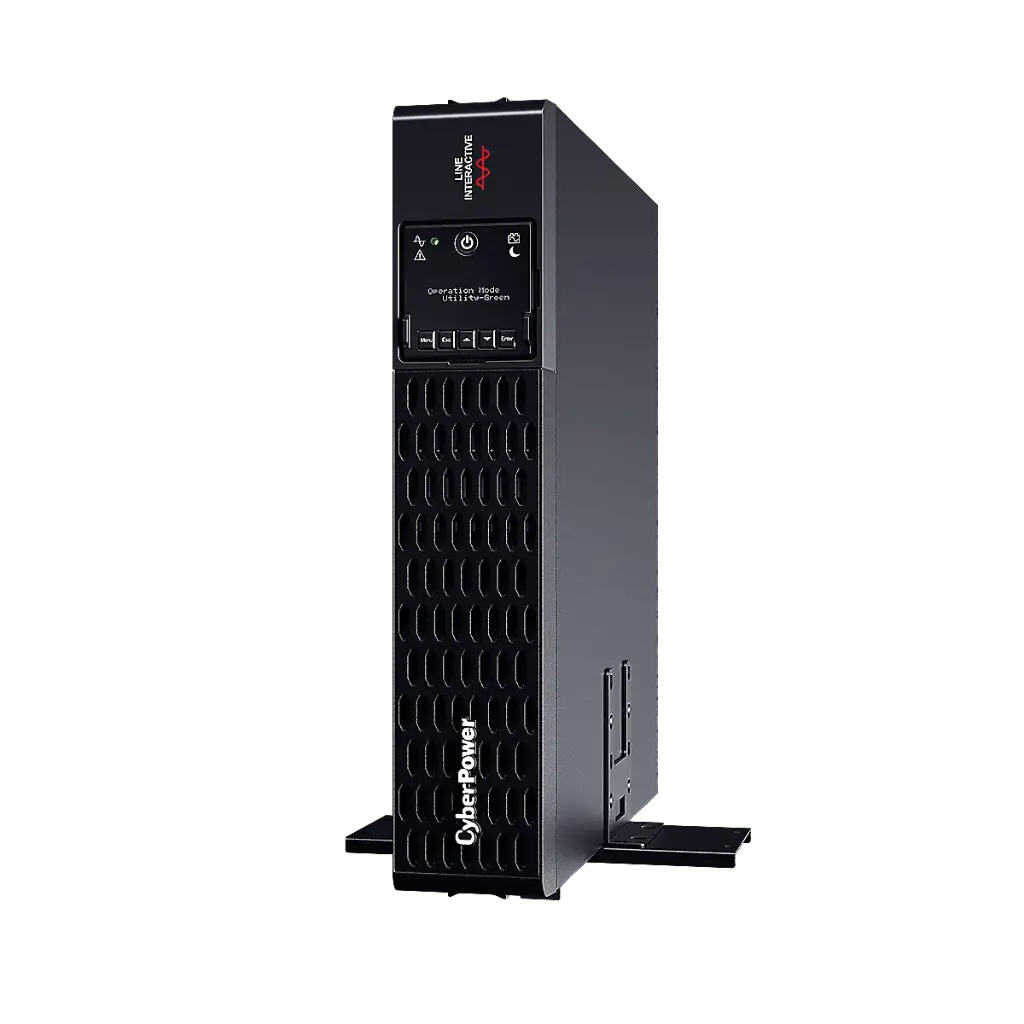

CyberPower PR1500ERT2U – 1.5 kVA / 1.5 kW Rackmount/Tower UPS
Pure Sine‑Wave backup power with full AVR and energy‑saving design—built for server rooms, NAS storage, telecom, and edge IT applications.
Key Features & Benefits
Line‑Interactive Topology with AVR (Automatic Voltage Regulation)
Stabilises input voltage from 151 V to 302 V using double-boost and single-buck regulation—protecting equipment during brownouts or over voltages without switching unnecessarily to battery power.
Pure Sine-Wave Output & Active PFC Compatibility
Supports sensitive or modern Active PFC hardware, delivering clean, distortion-free power at a full 1.0 power factor.
GreenPower™ Energy-Saving Bypass Design
Reduces idle power consumption and operating heat—ideal for 24/7 rack deployments.
Hot-Swappable Battery with Advanced Management
User-replaceable VRLA battery pack (RBP0129) allows tool-free swaps while online. Integrated battery-balancing extends lifespan and runtime.
Multi-Function Rotatable Matrix LCD & EPO Port
Displays load, battery, event logs, and allows configuration. Detachable and tilt-adjustable for flexible rack or tower installation. Emergency Power Off (EPO) support available.
Surge Protection & EMI/RFI Filtering
Delivers up to 2,430 J surge suppression and line filtering, including RJ‑45 combo protection for network/phone lines at 1 Gbps.
10 Usable IEC C13 Outlets & Two Outlet Modes
Five critical and five non-critical load outlets support runtime prioritisation.
Remote Management Ready (Optional)
USB, serial (RS‑232), dry-contact, and EPO interfaces built-in. Optional SNMP/HTTP network card (RMCARD205) enables full IPT/remote control.
Technical Specifications
| Spec | Detail |
|---|---|
| Power Capacity | 1,500 VA / 1,500 W (PF = 1) |
| Topology / Waveform | Line‑Interactive / Pure Sine Wave |
| Input Voltage Range | 159–288 VAC (configurable 151–302 V) |
| Transfer Time | ~4 ms |
| Runtime | ~18.6 min @ half load; ~6 min @ full load |
| Recharge Time | ~3 hours |
| Surge Rating | ~2,430 J |
| Outlets | 10 × IEC C13 (5 critical, 5 non‑critical) |
| Interfaces | USB‑B (HID), RS‑232, RJ‑45 combo, EPO port |
| Display | Rotatable LCD + LED indicators |
| Noise Level | ~52.5 dB (fan‑cooled) |
| Form Factor | 2U Rackmount (433 × 86.5 × 412 mm) |
| Weight | ~24.6 kg |
| Operating Conditions | 0–40 °C; up to 95% RH; up to 3,000 m altitude |
| Warranty | 2–3 years on unit; includes connected equipment guarantee |
| Certifications | CE, RCM, UL/FCC Class B, VCCI, RoHS |
| Box Includes | UPS unit, rack rails & ears, power cord, USB & serial cables, EPO cable, manual |
Ideal Use Cases
Server rooms & network racks: Clean power and regulated voltage critical for Active‑PFC gear.
Surveillance or telecom deployments: Multiple outlets and clean switching ideal for network DVRs or PoE appliances.
Remote or unmanned installations: Optional SNMP card and EPO port enable remote monitoring and emergency shutdown.
Home lab or edge environments: Compact 2U footprint with silent rack-compatible design.
Why Choose the PR1500ERT2U?
High-power, clean sine-wave output for sensitive or PFC-dependent systems.
Efficient AVR and bypass design reduce energy costs and extend battery life.
Hot-swap battery replacement ensures uninterrupted operation.
Robust protection via high surge capacity and EMI/RFI filtering.
Flexible deployment: convertible rack/tower with rotatable LCD.
Smart monitoring & management via software or optional SNMP.
Warranty-backed with professional connected-equipment protection.
Package Contents
PR1500ERT2U UPS unit
Adjustable rackmount rails & ears
Power cord (IEC C14)
USB, serial (RS‑232), and EPO cables
User manual and warranty guide
PowerPanel Business Edition included; optional SNMP card available
