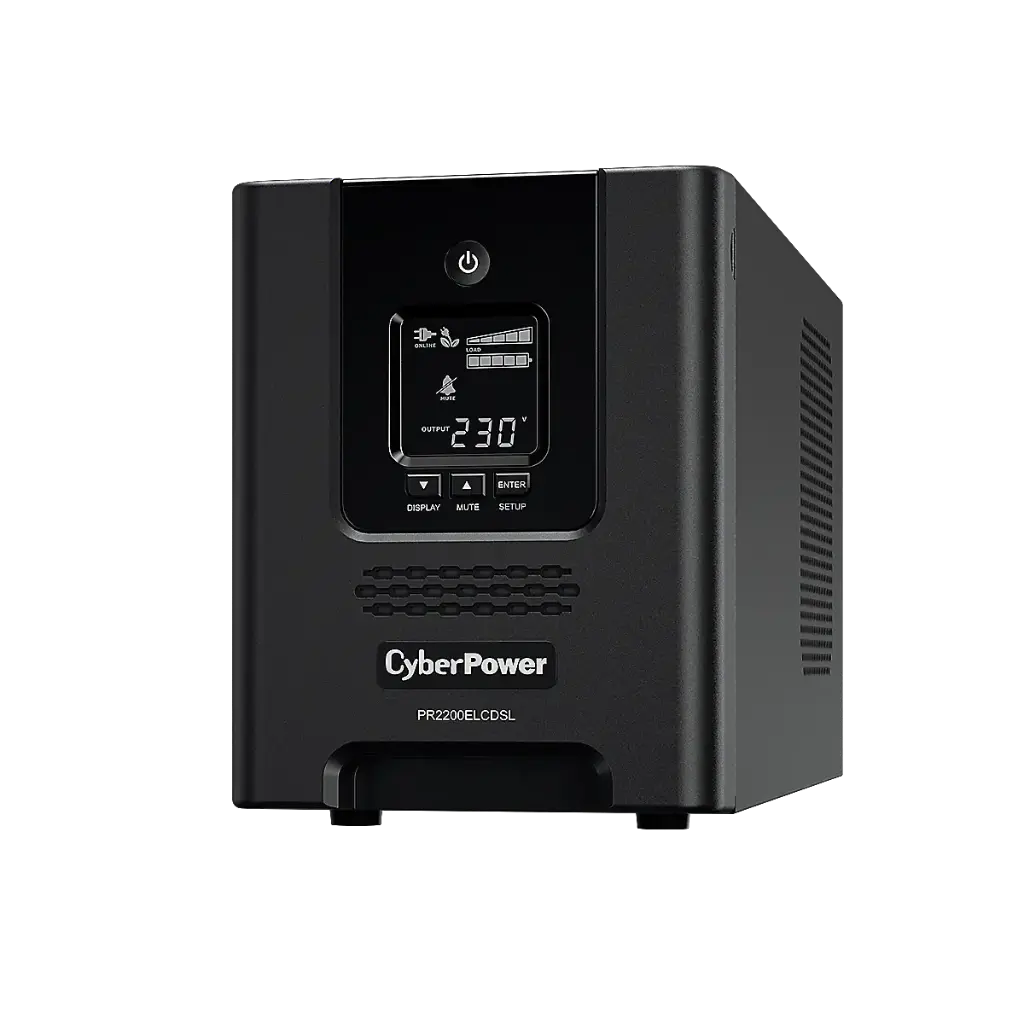

CyberPower PR2200ELCDSL – 2.2 kVA / 1.98 kW Pure Sine Wave Tower UPS
Designed for mission-critical systems, the PR2200ELCDSL offers enterprise-grade power protection with smart monitoring, voltage regulation, and high-capacity performance.
Key Features & Benefits
Sine Wave Output with AVR Regulation
Delivers clean, distortion‑free power (pure sine wave) with ±10% stability and fast automatic voltage regulation—ideal for Active‑PFC servers and workstations.
High Load Capacity
Handles up to 2.2 kVA (1,980 W) via 9 AC outlets: eight IEC C13 and one IEC C19, supporting mixed power configurations.
Smart & Remote Management Ready
Interfaces include USB (HID‑compliant), RS‑232, and EPO port. Supports optional SNMP/HTTP management via CyberPower RMCARD205 card for network integration.
Hot‑Swappable VRLA Batteries
Four user-replaceable 12 V / 9 Ah sealed lead-acid batteries can be serviced without powering down, extending uptime.
GreenPower™ Energy‑Saving Design
Bypass-style power topology reduces idle draw, improving energy efficiency and lowering operating heat.
Comprehensive Surge Protection
Includes EMI/RFI filtering and 405 J surge suppression to protect equipment and data lines.
Technical Specifications
| Specification | Detail |
|---|---|
| Capacity | 2200 VA / 1980 W |
| Topology / Waveform | Line‑Interactive / Pure sine wave |
| Transfer Time | ~4 ms |
| Input Range | 160 V – 283 V (adjustable to 151–297 V) |
| Battery | 4 × 12 V / 9 Ah VRLA |
| Run Time | ~12 min at half load; ~3 min at full load |
| Recharge Time | ~8 hours |
| Outlets | 8 × IEC C13 + 1 × IEC C19 |
| Interfaces | USB, RS‑232 (DB‑9), EPO port |
| Dimensions | 170 × 432 × 221 mm; Weight ≈ 23.3 kg |
| Warranty & Guarantee | 2-year warranty; €100,000 connected-device protection |
Compatible with PowerPanel® Business Edition software, enabling automated shutdown scheduling, logging, remote alerts, and configuration via USB or optional SNMP card.
Ideal Use Cases
Server rooms and SMB data centres powering servers, storage, and critical network gear
High-performance workstations with Active PFC PSU support
Administration environments needing remote management and policy-driven shutdown
Edge or IoT installations requiring robust surge protection and clean regulated power
Why Choose the PR2200ELCDSL?
Heavy-duty capacity of nearly 2 kW for demanding systems
Pure sine wave output ensures compatibility with sensitive electronics
Remote and local management options via USB, RS‑232, EPO, and SNMP support
User-replaceable batteries with hot-swap support preserve uptime
High-value equipment protection warranty up to €100K
In the Box
The UPS includes power cord, USB cable, serial cable, EPO cable, user manual, and PowerPanel Business Edition software. SNMP card available separately.
