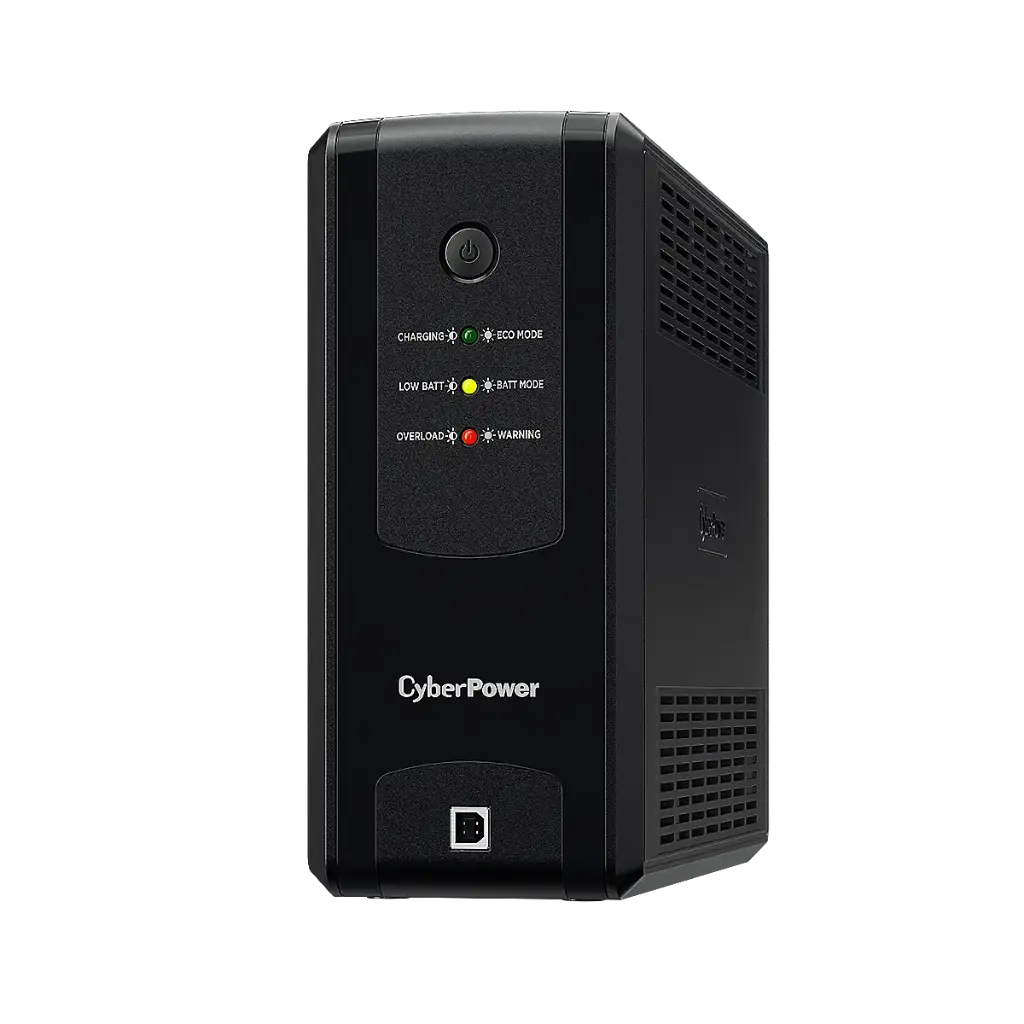

CyberPower UT1050EIG – 1.05 kVA / 630 W Line Interactive UPS

Reliable, efficient power protection for small offices, home setups, POS systems, and light networking environments.

Top Features

• Line‑Interactive UPS with AVR (Automatic Voltage Regulation)

  Helps stabilize input voltage between 165 and 290 V, adjusting voltage without switching to battery unnecessarily—ideal for areas with frequent surges or brownouts.

• GreenPower UPS™ Bypass Design

  Minimizes power draw during normal operation for greater efficiency, reduced heat, and longer battery life.

• Simulated Sine-Wave Inverter with Fast Transfer Time (~4 ms)

  Ensures continuous supply during switchover from mains to battery.

• Comprehensive Protection Suite

  Includes surge suppression (approx. 150 J), EMI/RFI filtering, overload protection, and configurable alarms.

• Connectivity & Monitoring

  Provides 6 IEC C13 outlets (4 battery‑backed + surge + 2 surge‑only), USB and RJ‑45/RJ‑11 data‑line protection, plus support for PowerPanel® software.

Technical Specifications

• Capacity: 1.05 kVA / 630 W

• Input Voltage Range: 165 V–290 V AC

• Output Voltage: 230 V ±10%, 50/60 Hz

• Battery: Sealed Lead-Acid (VRLA)

  • Recharge time: ~6 hours

  • Runtime: ~65 min @ 60 W, ~43 min @ 90 W, ~14 min @ 200 W

• Transfer Time: Typically 4 ms

• Surge Energy Rating: ~150 J

• Interfaces: 6 × IEC C13 outlets; USB-B port; 2 × serial (RJ‑45) ports; 1‑in / 1‑out RJ‑45 network/phone protection

• LED Indicators: Line mode, battery, bypass, low battery, overload, fault states

• Audible Alarms: Fault, low battery, overload, UPS fault alerts

• Physical Dimensions: 95 × 220 × 307 mm; Weight ~6.9 kg

• Environment: Operating temp 0–40 °C, humidity up to 90% non-condensing, altitude up to 3,000 m

• Certifications: CE, RoHS compliant

• Warranty: Typically 1–2 years direct from CyberPower, varying by vendor.

Benefits & Ideal Use Cases

• Efficient Protection: AVR and GreenPower™ design maintain clean, regulated power with minimal energy waste.

• Peace of Mind: Audible and LED alarms plus PowerPanel® software provide clear alerts and graceful shutdown before battery depletion.

• Compact & Space‑Saver: Slim, black tower design takes up minimal desk or rack space—easy installation even in tight setups.

• Versatile Compatibility: Perfect for protecting PCs, servers, network gear, POS terminals, NAS, and modems.

What’s in the Box

Includes the UPS unit, power cable (~1.2 m), Quick Start guide, and product registration card. PowerPanel® Personal software is available for managing alerts, logging, and controlled shutdowns via USB connection.
