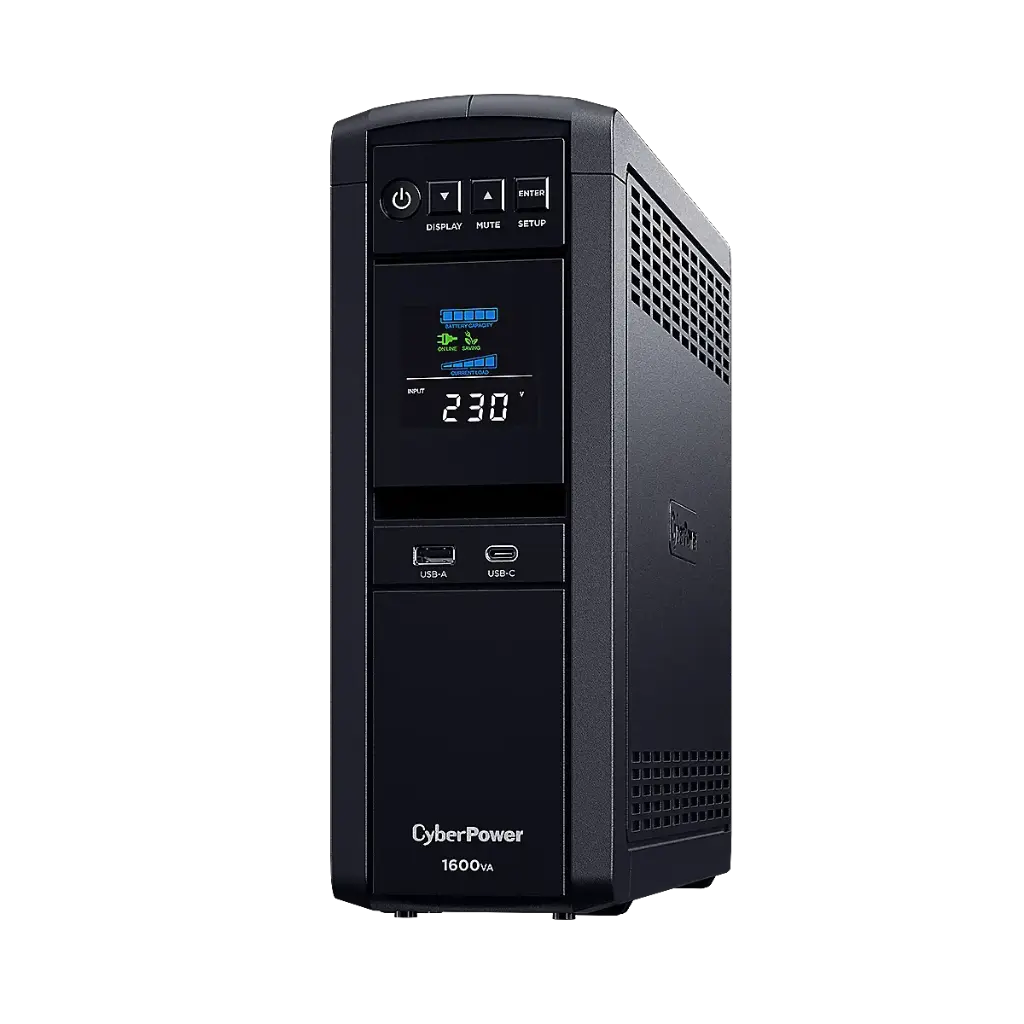

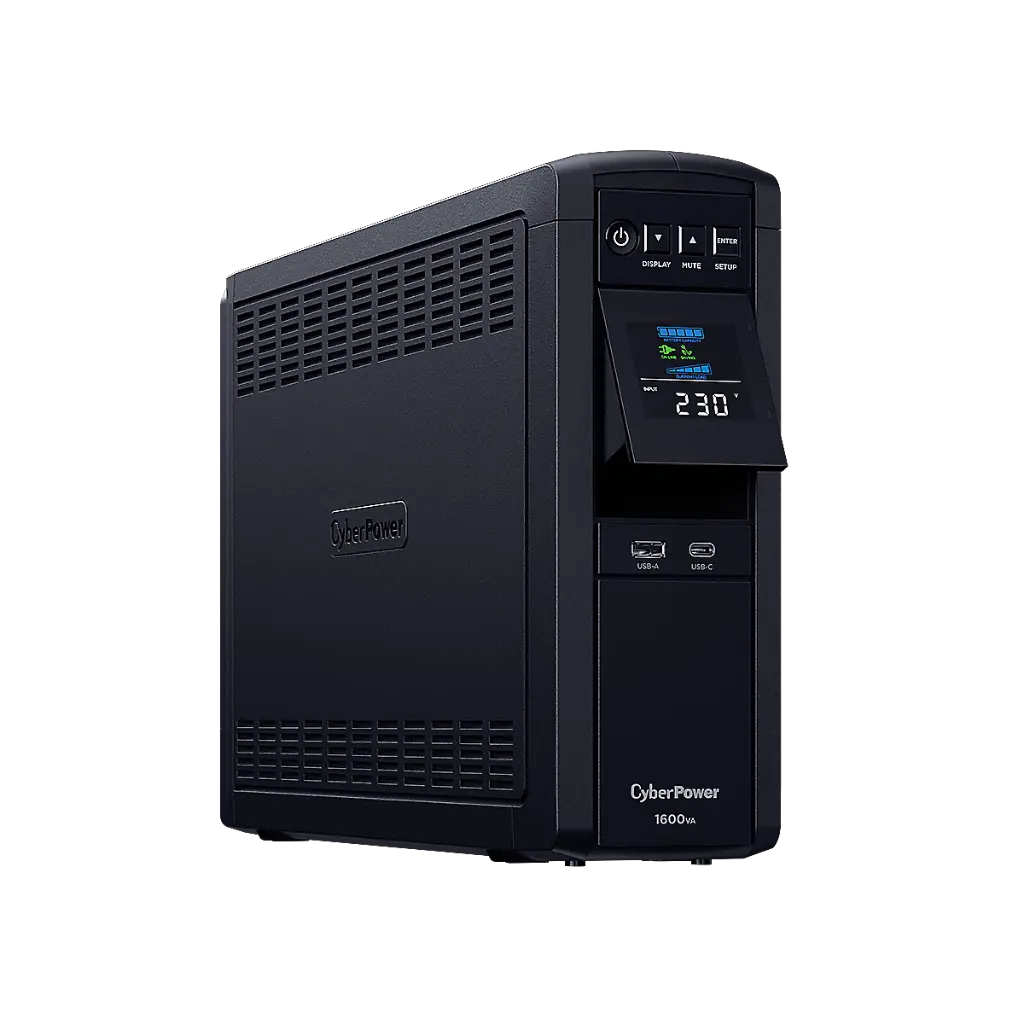

CyberPower CP1600EPFCLCD-UK – 1.6 kVA / 1 kW Pure Sine Wave UPS
A high‑value UPS designed for mid to high‑end PCs, server setups, networking appliances, and systems with Active Power Factor Correction (PFC) power supplies.
Leading-Edge Features & Benefits
Pure Sine Wave Output with Active PFC Compatibility
Delivers true clean power suitable for sensitive electronics and Active PFC systems.
Automatic Voltage Regulation (AVR)
Stabilises incoming voltage (169–271 VAC) with internal boost/buck regulation, reducing unnecessary battery use.
GreenPower™ Energy‑Saving Technology
Incorporates patented bypass circuitry to minimise idle power usage—cutting heat and electricity cost.

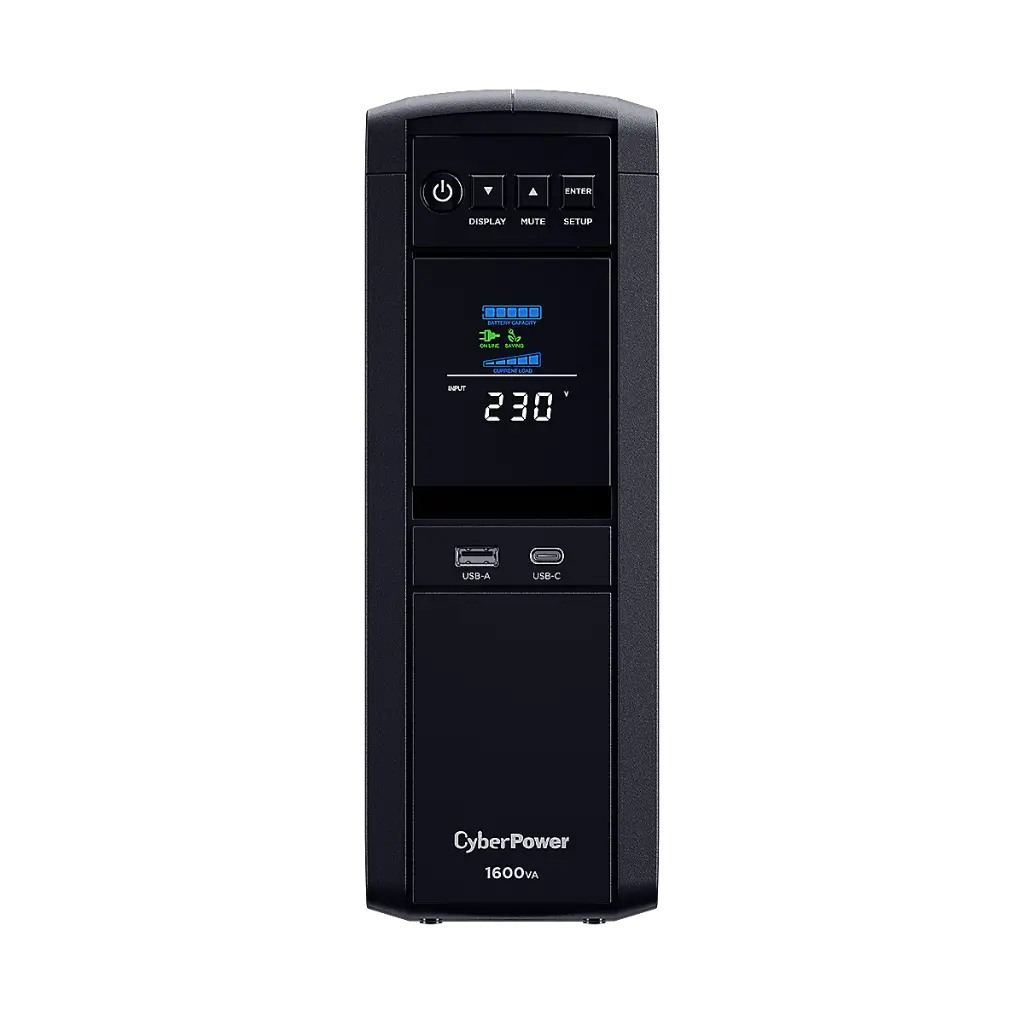

Tiltable Colour LCD & LED Indicators
Provides real-time insights into load, voltage, runtime, faults, and event logs via a user-friendly, adjustable display.
Robust Surge & Data‑Line Protection
Includes integrated EMI/RFI filters and RJ‑45 Ethernet surge shielding at 1 Gbps speeds. Up to 405 J surge absorbtion.
Smart Connectivity & Software Tools
USB Type-A and Type-C ports support PowerPanel® software and optional SNMP/HTTP remote management. Enables automatic shutdown, monitoring, and configuration.
Technical Specifications
| Specification | Detail |
|---|---|
| Capacity | 1,600 VA / 1,000 W |
| Input Range | 169–271 VAC; AVR ±5% |
| Output Waveform | Pure sine wave, ≤8 ms transfer time |
| Surge Rating | ~405 J |

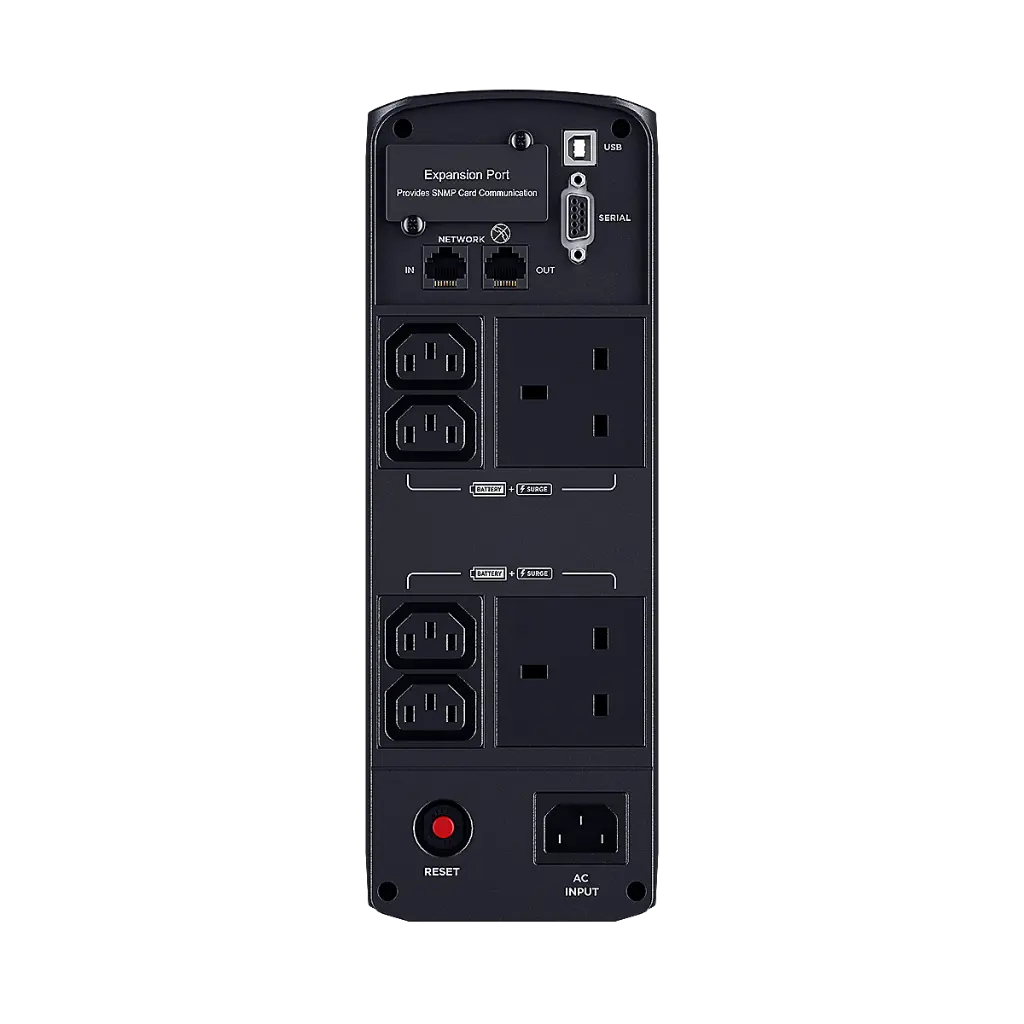

| Outlets | 2 UK mains + 4 IEC C13 (battery-backed) |
| Runtime | ~9.7 min (@ half load), ~2.6 min @ full load |
| Battery Recharge Time | ~8 hours |
| Management Ports | USB‑A, USB‑C, Serial DB‑9, RJ‑45 |
| Form Factor | Tower, ~11 kg, 100 × 280 × 355 mm |
| Operating Conditions | 0–40 °C, ≤95 % RH non-condensing, up to 3,000 m altitude |
| Warranty | 2-year limited; 2-year battery warranty; UK-connected equipment guarantee |
| Certifications | CE, RoHS compliant |
What It Offers You
Reliable Blu‑Print Performance: Delivers stable clean power for PFC-enabled PCs, NAS systems, servers, and network devices.
Efficient Operation: GreenPower™ bypass lowers standby consumption and extends battery life.
Visible Status Tracking: LCD panel aids quick visual updates and configuration.
Sufficient Runtime: Offers ~9–10 minutes at medium load—suitable for safe shutdown or bridging short outages.
Comprehensive Protection: Shields both power and data lines, and supports graceful shutdown via USB or remote network management.
Box Contents
Includes: CP1600EPFCLCD‑UK unit, USB and power cables, user manual. PowerPanel® software available via download, and remote-management SNMP card compatibility is optional.
