CyberPower OL6KERTHD - Enterprise High-Density Online UPS (6 kVA / 6 kW)

Protect your critical infrastructure with the OL6KERTHD, a robust 6000 VA / 6000 W online double‑conversion UPS built for enterprise server rooms, network hubs, telecom systems, recording/surveillance setups, and industrial racks. With 0 ms transfer time, full power isolation, and pure sine-wave output, it ensures uninterrupted, clean power delivery to sensitive equipment—even during unstable grid conditions.

Core Power & Efficiency

• Total capacity: 6000 VA / 6000 W with a power factor of 1.0, offering full load headroom

• ECO Mode: Achieves up to ~96–97% efficiency under normal conditions, helping reduce energy costs and cooling load

• Compatible with generators for reliable hybrid power environments

Input & Output Configuration

• Input voltage range: Configurable from 200–240 VAC ±2% (supports generator input), with broader adjustable range depending on load

• Output voltage frequency: User-configurable 50/60 Hz ±0.5% across the same configurable voltage range

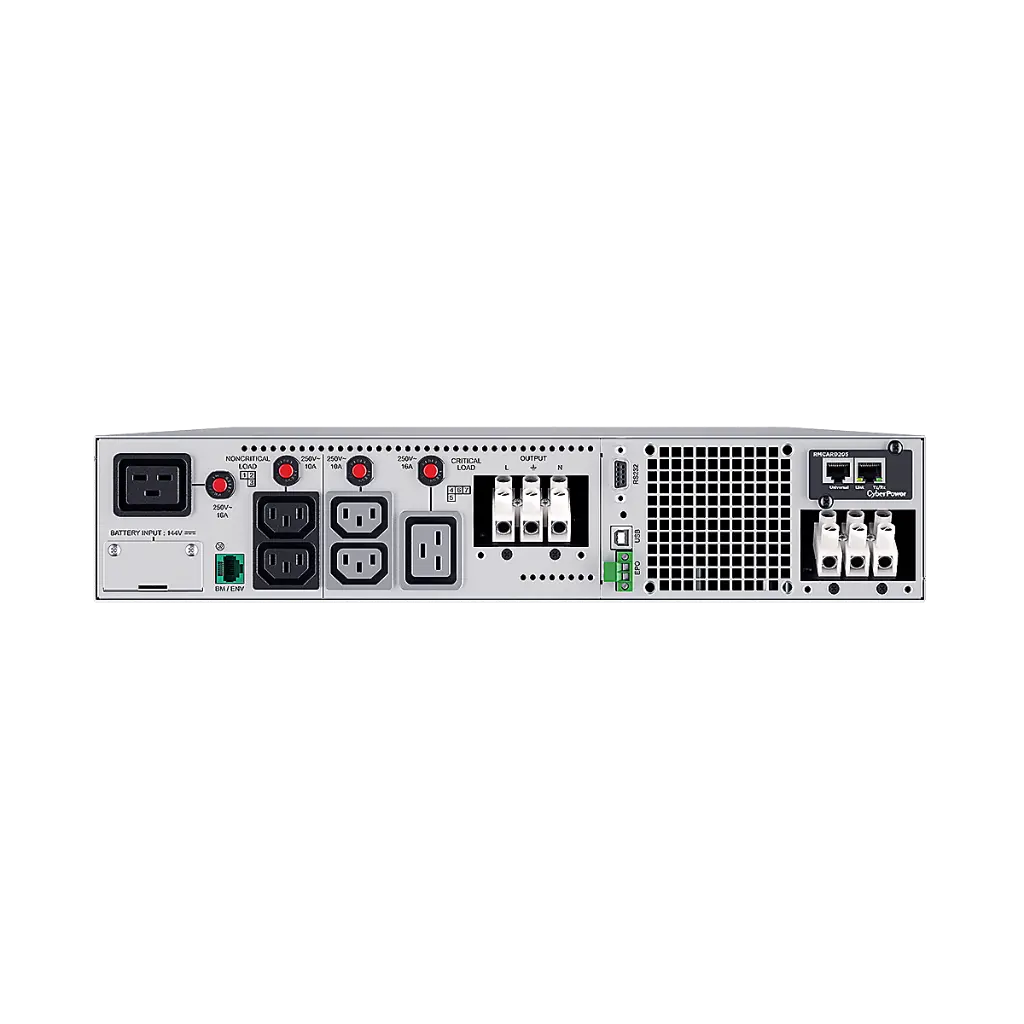

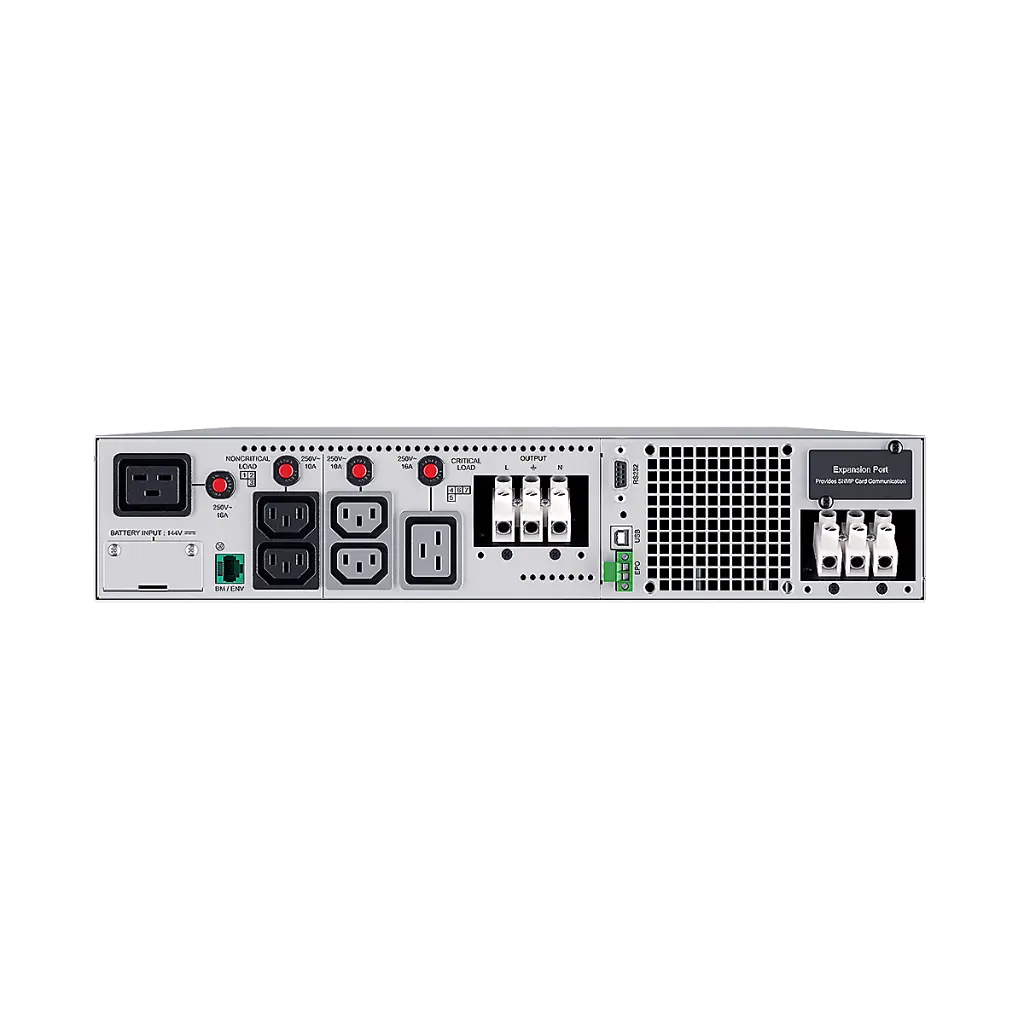

• Outlet configuration: 4 × IEC C13, 2 × IEC C19, plus 1 × hardwired terminal block; designated critical and non‑critical groups for load prioritisation

Battery & Runtime

• Equipped with 12 sealed lead-acid cells (144 V nominal) housed in hot-swappable battery packs for zero‑downtime maintenance

• Typical runtime: ~4.9 min at half load, ~1.4 min at full load; extended durations are possible using optional EBMs (up to 10 modules)

• Recharge time: Approximately 4 hours to full charge

Management & Monitoring

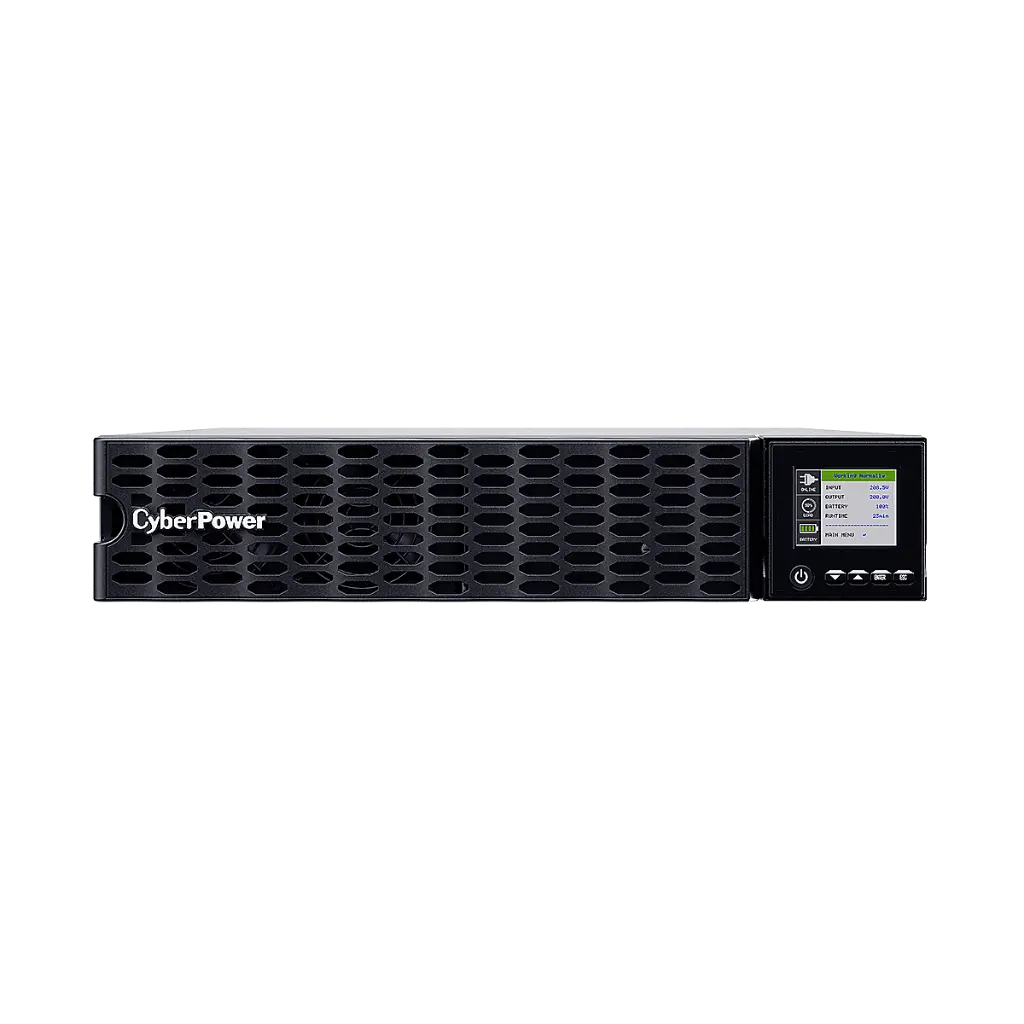

• Tiltable, colour LCD display: Rotates automatically in tower orientation and presents real-time information on power, load, battery, alarms, events and settings

• Connectivity: USB, RS‑232, Ethernet (SNMP/HTTP), and EPO interface; includes pre-installed RMCARD205 for seamless remote monitoring and alerts

• Software: Compatible with PowerPanel Business, allowing detailed local or networked management

Protection Features

• Full online double-conversion topology provides continuous, clean, isolated power regardless of grid quality

• Built-in surge suppression (2430 J), EMI/RFI filtering, overload protection (circuit breaker and current limiting), and full EPO support

• Acceptable distortion: THD < 3% (linear loads) / < 5% (non-linear loads), with a crest factor of 3:1

Physical Form & Build

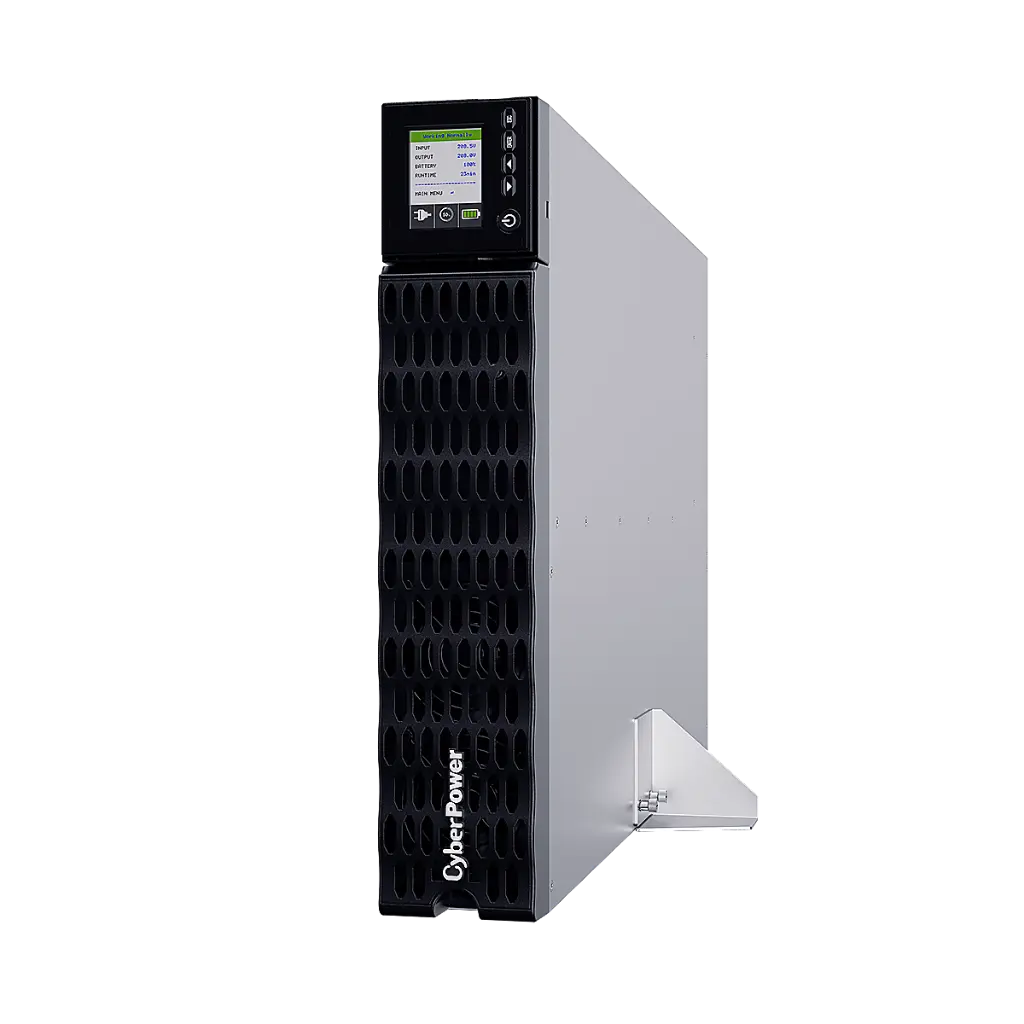

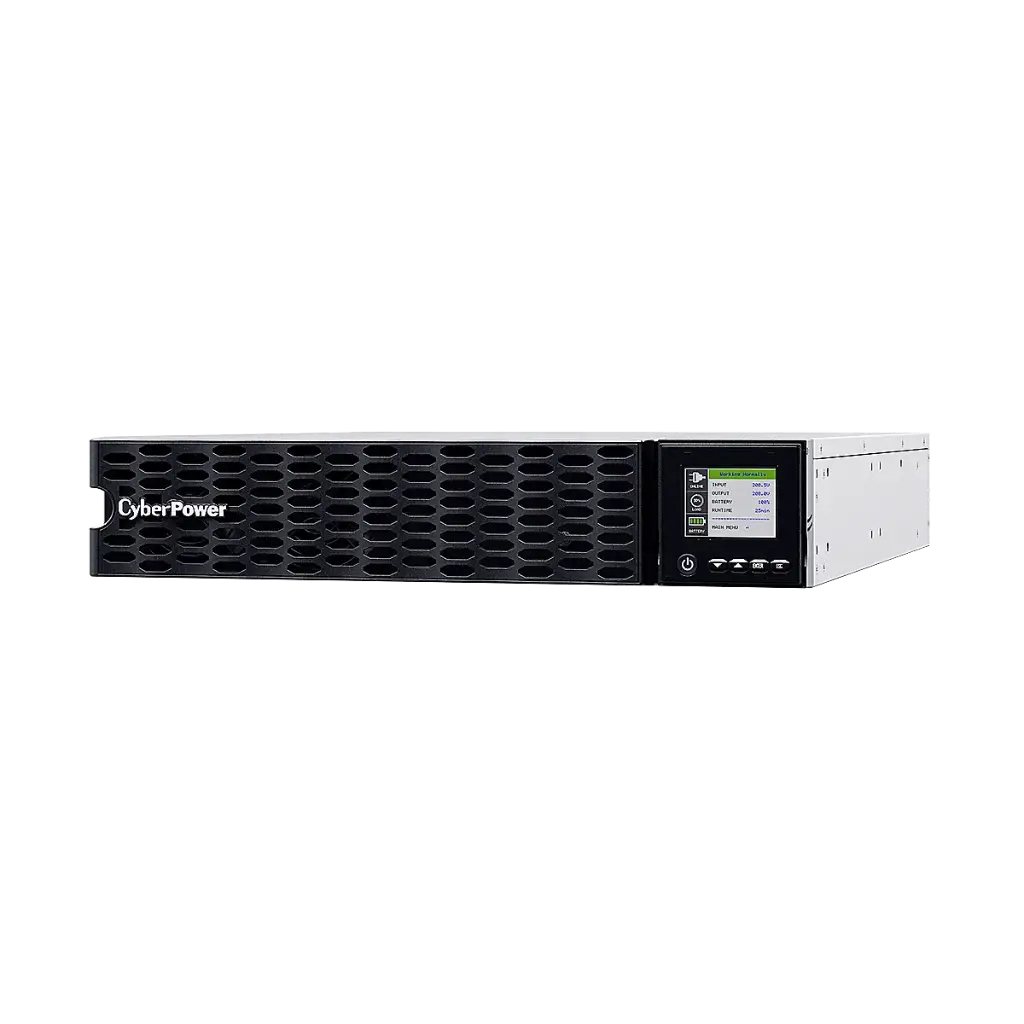

• Rackmount / tower convertible 2U chassis; robust metal housing in black/grey finishes

• Dimensions: 433 × 86.5 × 720 mm; weight ~42 kg (ship weight ~52 kg)

• Operational noise: variable fan speeds for thermal management, resulting in 43–66 dBA depending on load

Certifications & Warranty

• Fully compliant with CE, EAC, RCM, RoHS and ENERGY STAR standards

• Backed by a 3‑year manufacturer warranty (including batteries), with a $300,000 Connected Equipment Guarantee in applicable regions

Key Strengths at a Glance

• Zero transfer time, pure sine wave output for perfect protection of sensitive loads

• High power density: compact 2U footprint delivering full 6 kW output

• Extended runtime capability through scalable EBMs and built-in battery management

• Rich monitoring features via colour LCD, remote SNMP/HTTP, and PowerPanel software

• Energy-efficient ECO Mode, reducing operational cost without compromising protection

• Easy on-site maintenance, including hot-swappable batteries and EPO emergency power-off
