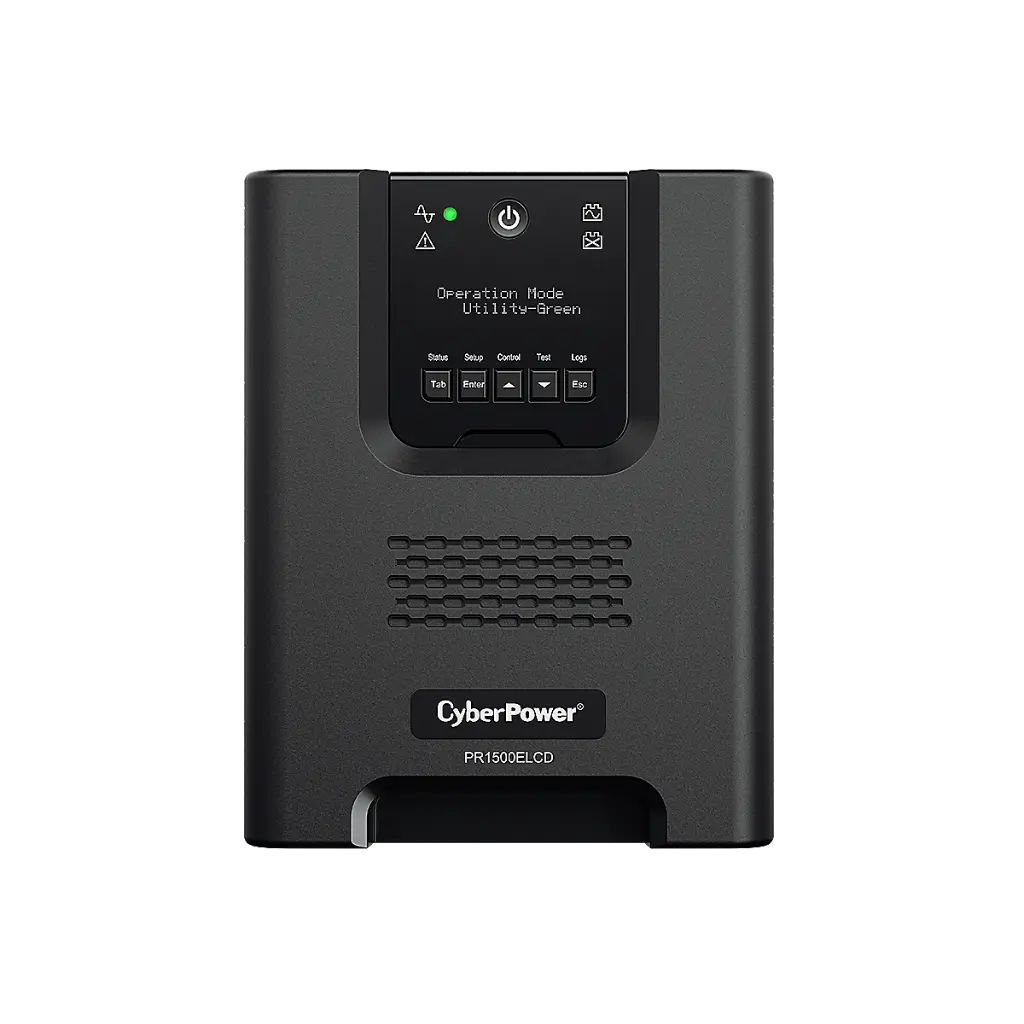

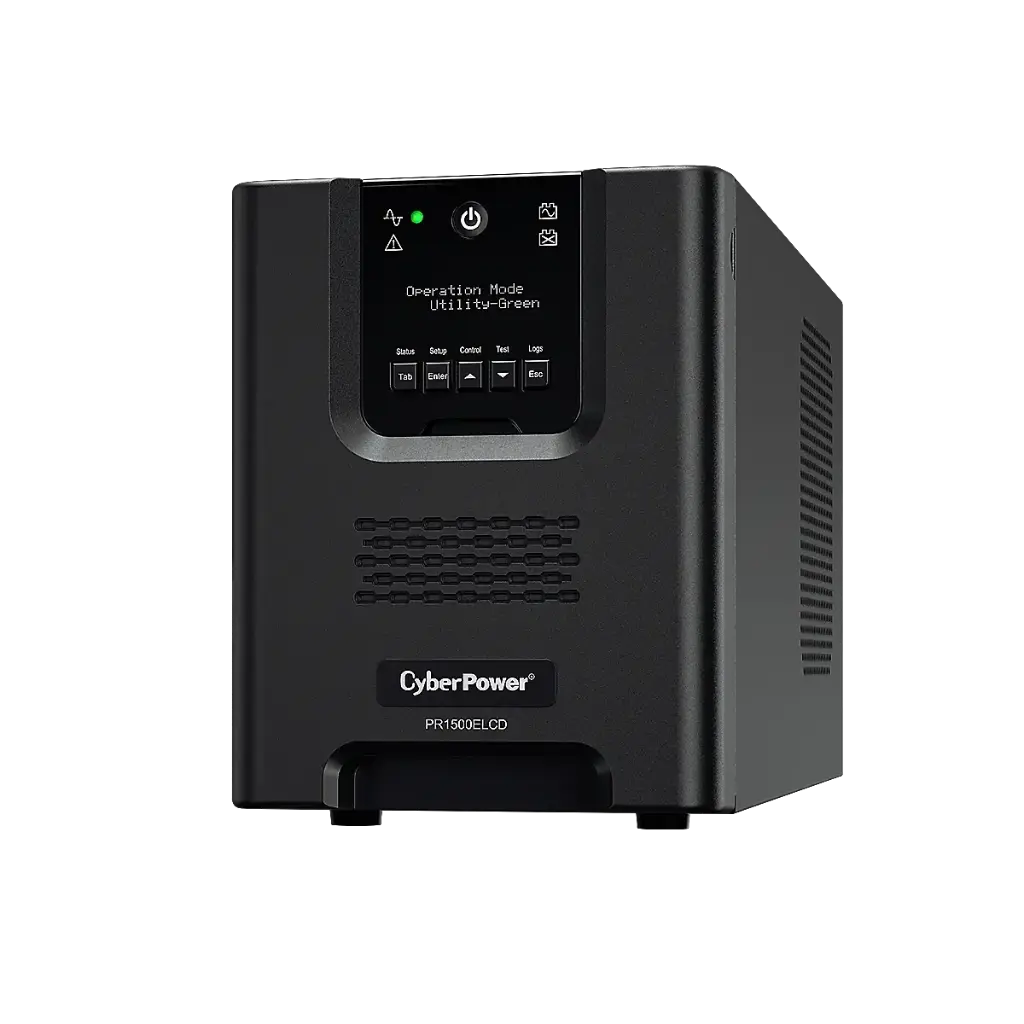

CyberPower PR1500ELCD – 1.5 kVA / 1.35 kW Pure Sine Wave Tower UPS
Engineered for resilience, the PR1500ELCD blends professional-grade power backup with clean output, intuitive control, and advanced management options.
Key Features & Benefits
Line‑Interactive with Pure Sine Wave Output
Ensures clean, stable 230 VAC ± 5% output with <4 ms transfer during outages—perfect for sensitive electronics and Active PFC systems.
Automatic Voltage Regulation (AVR)
Double-boost and single-buck regulation stabilises voltage between 151 V and 301 V without draining the battery, extending uptime.
GreenPower™ Efficient Design
Bypass-style power circuit reduces idle power consumption, lowers operating cost, and limits thermals.
Robust Surge Protection & EMI/RFI Filtering
Handles surges up to ~405 J and includes line filtering to safeguard both power and data pathways.
Hot-Swappable VRLA Battery
Simplifies battery maintenance without shutting the UPS down. User-replaceable with standard battery pack (RBP0023).

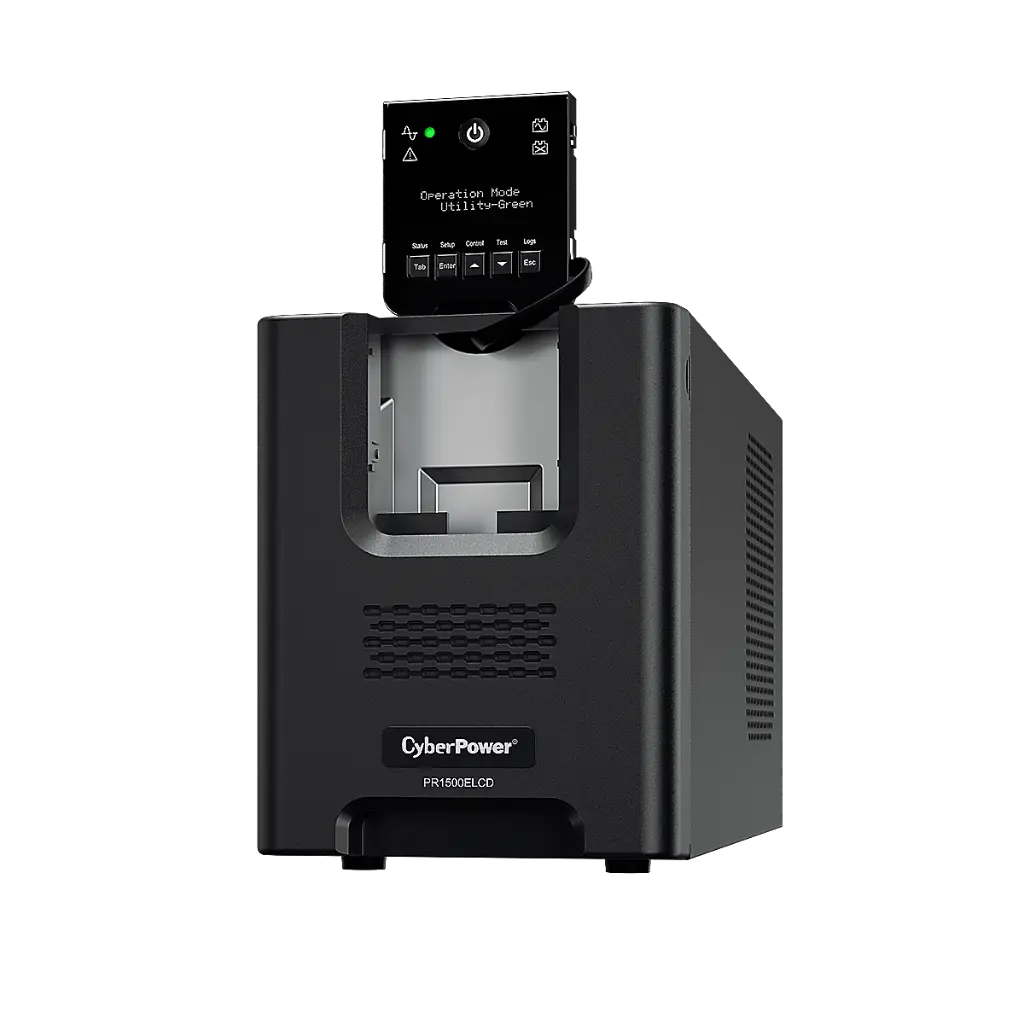

Detachable Multifunction LCD Panel + EPO Port
View real-time status (load, battery, faults) remotely via the detachable display. Emergency Power Off connection supports managed shutdowns.
Software & Remote Management
Includes PowerPanel® Business Edition for USB or serial management; supports optional SNMP/HTTP card for full network-based administration.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 1,500 VA / 1,350 W |
| Form Factor | Compact tower, ~25.1 kg; dimensions: 170 × 221 × 432 mm |

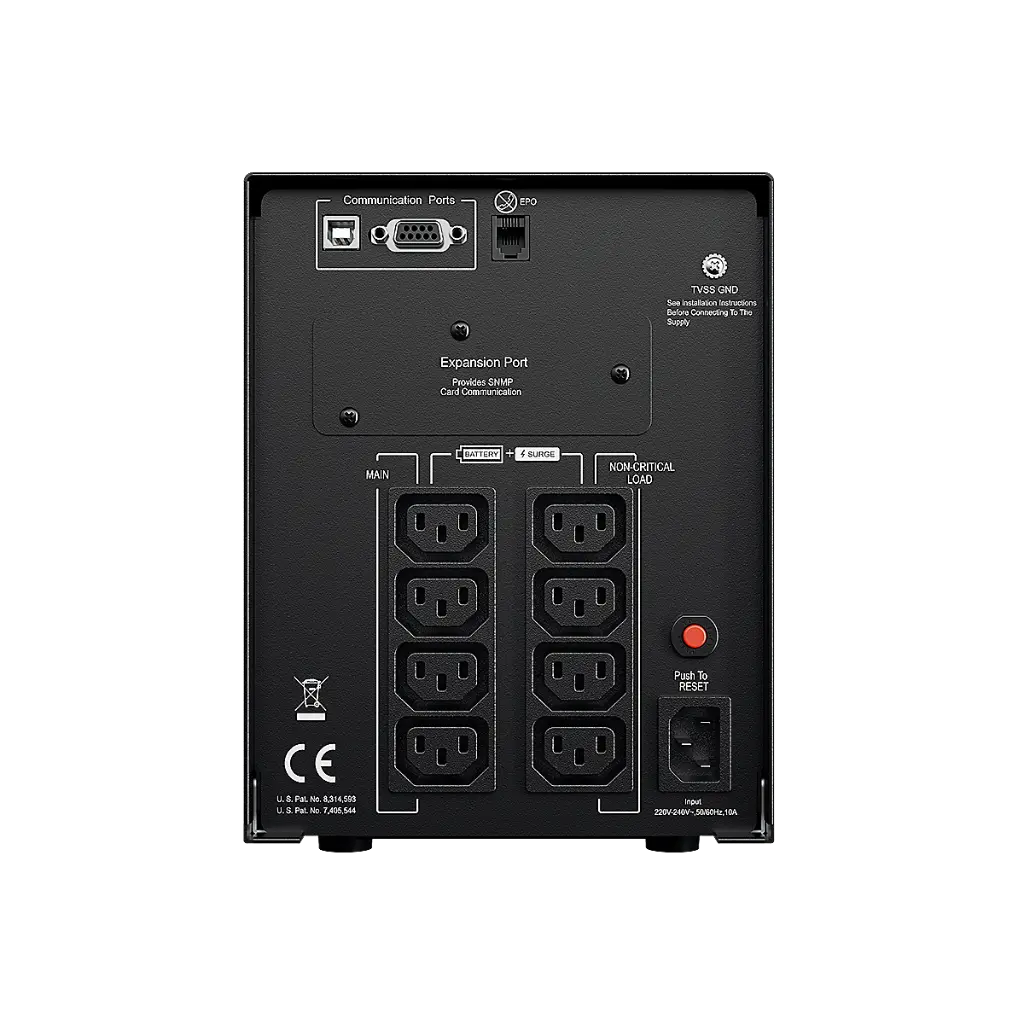

| Outlets | 8 × IEC C13 (all battery + surge protected; 4 can be critical load) |
| Runtime | ~17 min @ 50% load; ~4–5 min @ 100% load |
| Recharge Time | ~8 hours (quick recharge ~3 h) |
| Waveform | Pure Sine Wave, PF: 0.9 |
| AVR Input Range | 151–301 V AC; auto sensing 50/60 Hz |
| Surge Suppression | ~405 J; EMI/RFI filters included |
| Connectivity | USB (HID‑compliant), RS‑232, EPO port |
| Display | Multi-function, detachable LCD panel with log viewing and mode control |
| Software Support | PowerPanel Business (Win/mac/Linux); SNMP card optional |
| Certifications | CE, EAC, RCM, RoHS; includes up to €25,000 equipment protection guarantee with 3-year product & battery warranty |
Ideal Use Cases
Server rooms & SMB data centres protecting vital business systems
High-performance workstations, networking gear & telecom devices requiring stable output
Scenarios requiring remote monitoring and automatic shutdown, managed via PowerPanel or SNMP
Power-sensitive environments with AVR needs and energy efficiency as priorities
Why Choose the PR1500ELCD?
High-capacity, clean backup power—ideal for mission-critical or PFC-equipped devices
Comprehensive surge & voltage regulation built in to protect sensitive electronics
Smart management features via detachable LCD, USB/serial port, and optional remote card
Replaceable battery with hot-swap support ensures uptime without disruptions
Strong warranty & equipment protection for added peace of mind
Package Contents
Included: the PR1500ELCD UPS unit, USB and serial cables, EPO cable, power cord(s), detachable LCD panel, and user manual. PowerPanel Business Edition software bundled; SNMP card available separately.
