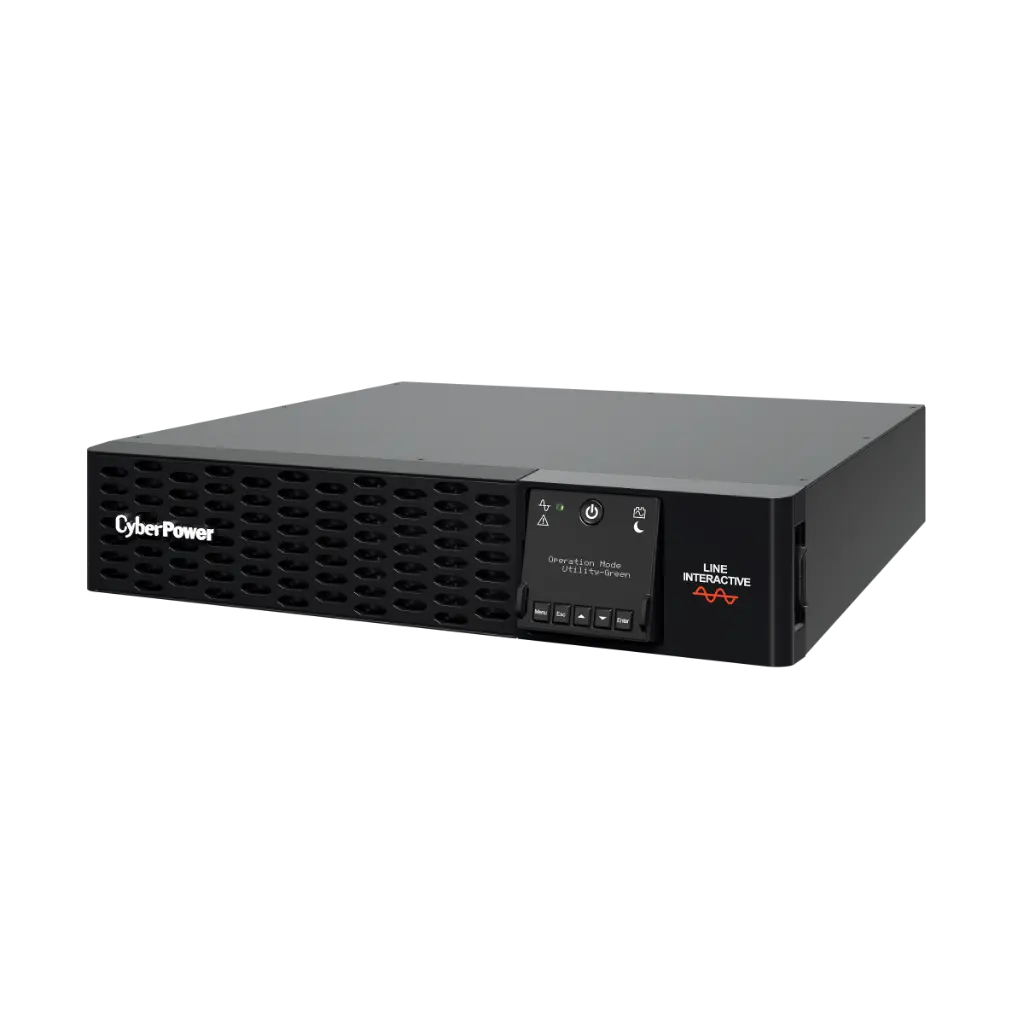

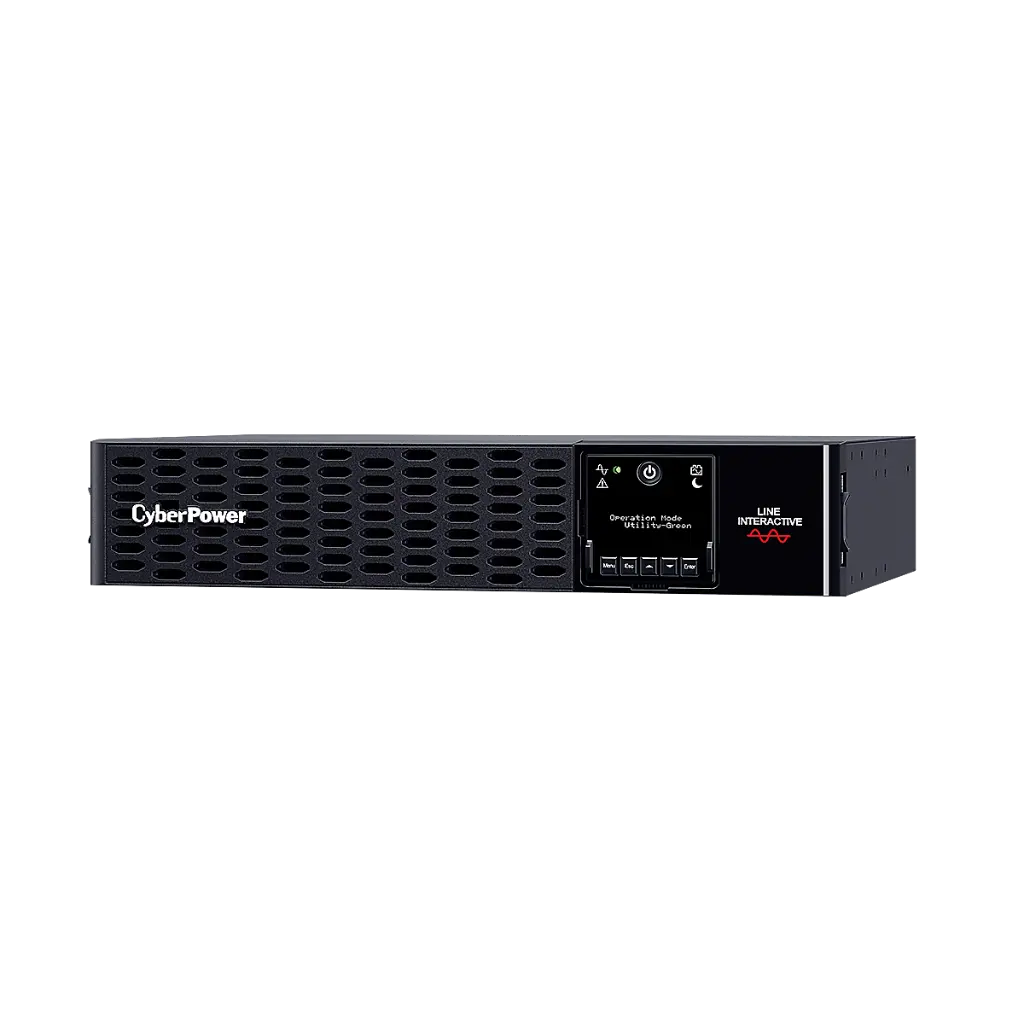

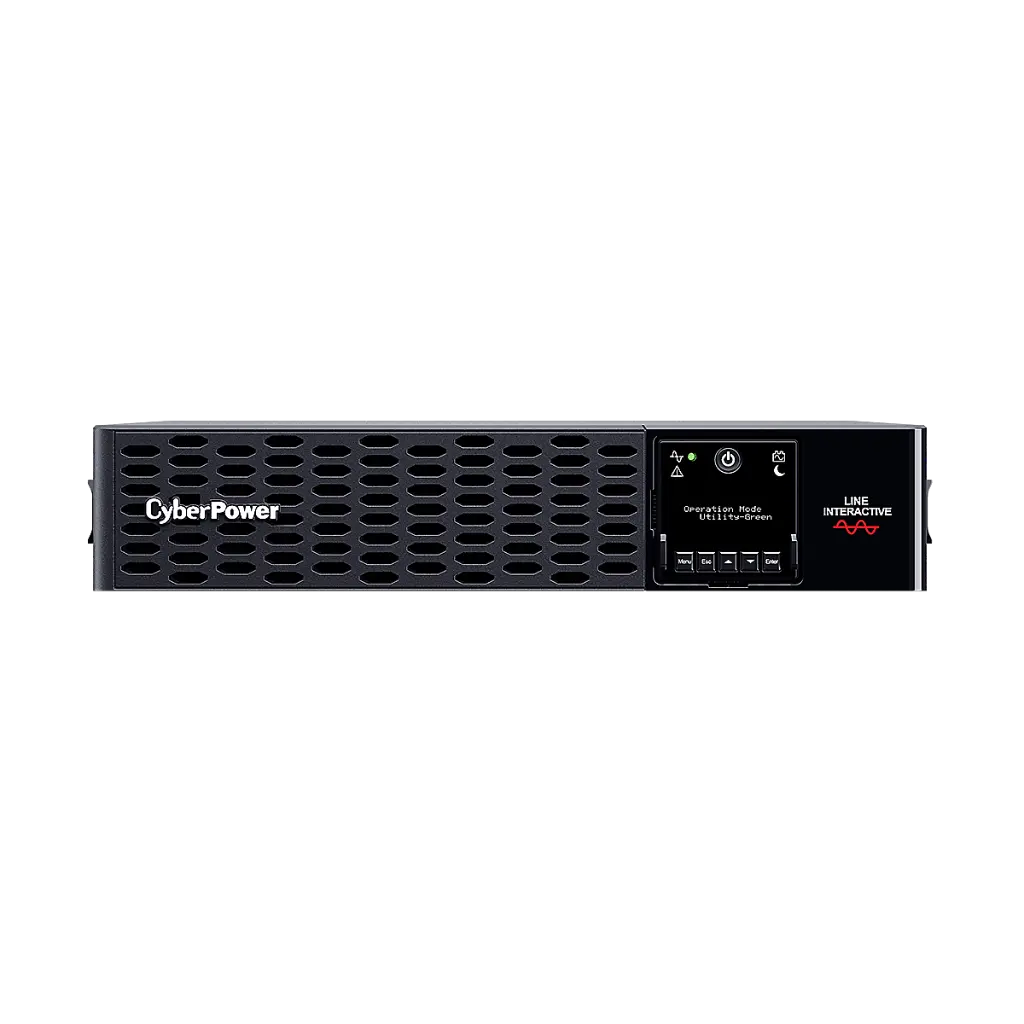

CyberPower PR2200ERT2U – 2.2 kVA / 2.2 kW Pure Sine Wave Rack/Tower UPS
Enterprise-class UPS delivering clean, full‑capacity backup power (PF = 1.0) with advanced features including AVR, hot‑swappable batteries, and multi-interface management.
Key Features & Benefits
Pure Sine Wave Output (PF 1.0)
Ideal for sensitive servers, Active‑PFC systems, NAS, and networking gear requiring distortion‑free power.
Line‑Interactive Topology with AVR
Supports input voltages from 159–288 VAC (configurable 151–302 VAC), using double‑boost / single‑buck regulation to deliver stable 220/230/240 VAC ± 5% while preserving battery life.
GreenPower™ Bypass Energy-Efficient Design
Reduces idle power draw and thermal output—a key feature for always-on rack environments.
Hot-Swappable VRLA Batteries with Management Technology
User-replaceable battery pack (RBP0129) allows seamless replacement without powering down. Advanced battery management balances strings and enables fast two‑phase charging.
Multi-Functional Rotatable Matrix LCD & EPO Support
Adjustable display shows load, battery status, event logs, and supports mode selection. Emergency Power Off (EPO) connection included.
High Surge Protection & EMI/RFI Filtering
Provides 2,430 J surge suppression and network line protection (RJ‑45 1-in/1-out) for safeguarding power and data paths.
Flexible Outlet Configuration & Load Control

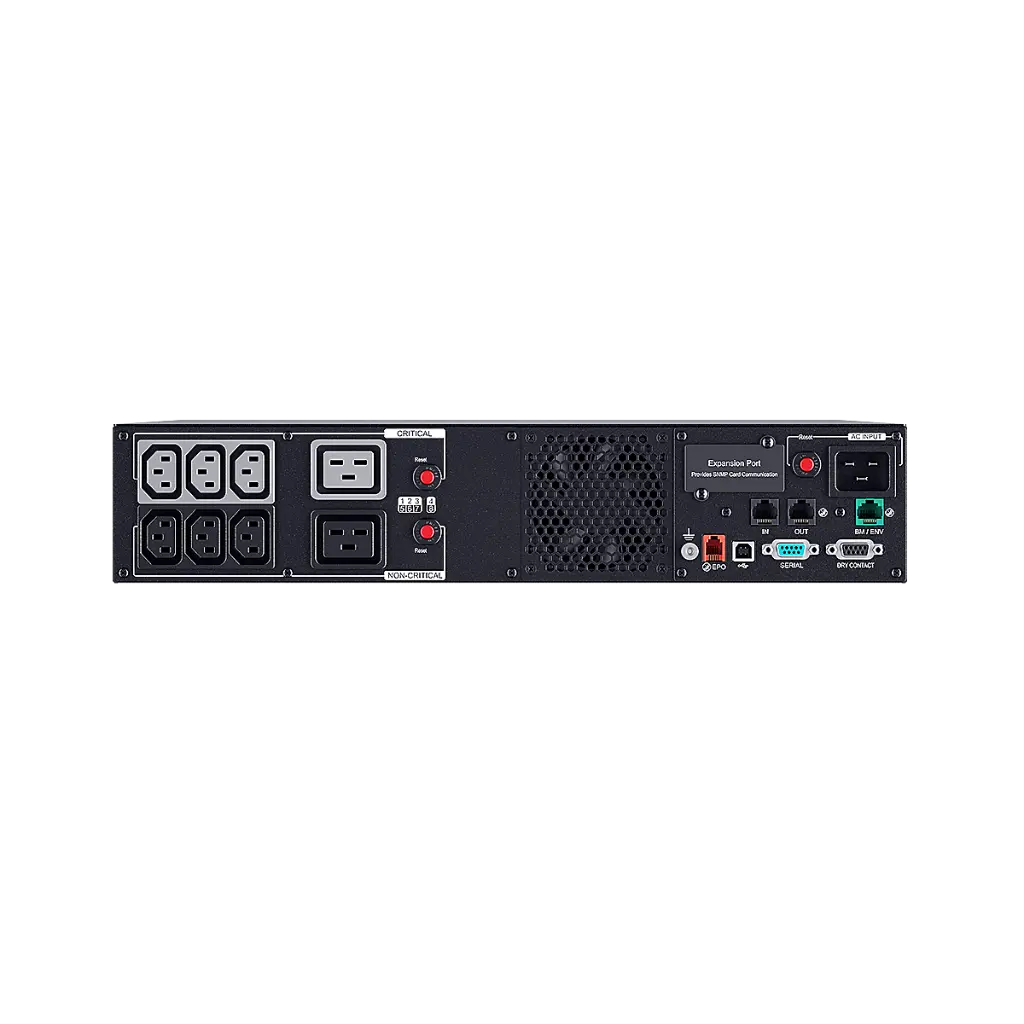

Eight outlets (6 × IEC C13 + 2 × IEC C19), all surge/battery protected. Four are configurable as critical vs. non-critical load categories.
Comprehensive Management & Connectivity
Supports USB (HID), RS‑232, dry-contact relay, EPO port, and optional SNMP/HTTP remote management via RMCARD205. Includes PowerPanel® Business Edition software.
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 2,200 VA / 2,200 W |
| Topology | Line‑interactive, pure sine wave, PF = 1 |
| Input Range | 159–288 VAC (configurable to 151–302 VAC) |
| Output Voltage | 220/230/240 VAC ± 5% |
| Transfer Time | ~4 ms |
| Surge Suppression | ~2,430 J |
| Runtime | ~11.4 min @½ load; ~3 min @ full load |
| Recharge Time | ~3 hours |
| Battery | 1 × RBP0129, sealed lead-acid; hot-swappable |
| Outlets | 6 × IEC C13, 2 × IEC C19 |
| Management Ports | USB (HID), RS‑232, EPO, dry contact; SNMP optional |
| Display | Rotatable matrix LCD + LED indicators |

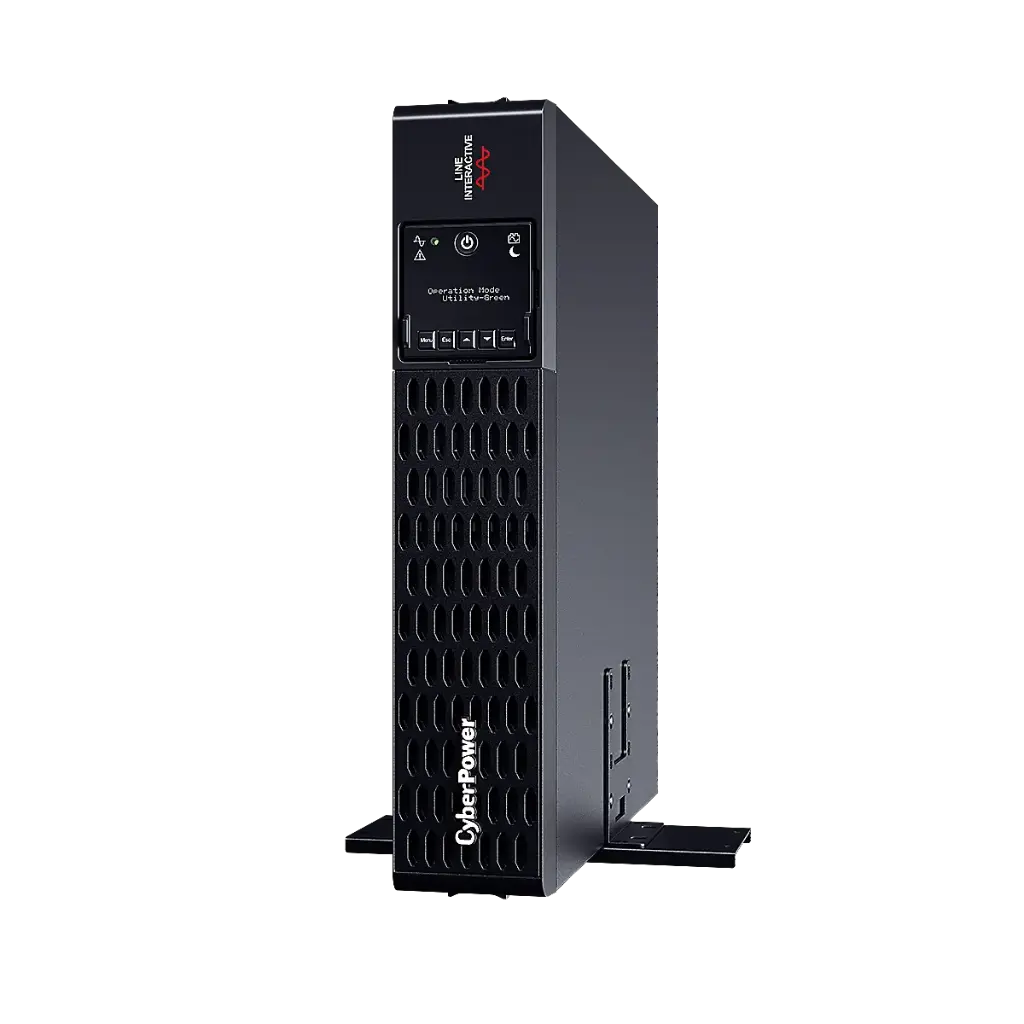

| Form Factor | 2U Rack/tower convertible (433 × 86.5 × 412 mm); ~25.7 kg |
| Noise Level | ≈ 52.5 dB(A) |
| Certifications | CE, UL/FCC Class B, RoHS, RCM; ENERGY STAR |
| Warranty | 2 years product & battery; €100K connected equipment guarantee |
Ideal Use Cases
Server rooms, NAS systems, or edge racks—where clean, regulated power and runtime awareness are critical.
Data centres and SMB IT environments needing remotely manageable, high‑performance backup.
Applications involving PoE, telecom, and Active‑PFC systems requiring reliable power continuity.
Installations prioritizing efficiency, low idle load, and easy maintenance.
Why Choose the PR2200ERT2U?
High load capacity with pure sine wave output ensures stability and compatibility with critical modern electronics.
Advanced AVR and energy-saving GreenPower™ design optimise runtime and efficiency.
Hot-swappable batteries and rotatable LCD enable seamless maintenance and flexible installation.
Rich surge and network protection, plus load classification and remote management options.
Strong manufacturer warranty and generous connected-equipment coverage for peace of mind.
In the Box
Included: PR2200ERT2U unit, rackmount rails/ears, power cord, USB and serial cables, EPO cable, user’s manual. Comes with PowerPanel Business Edition software; SNMP management card available separately.
