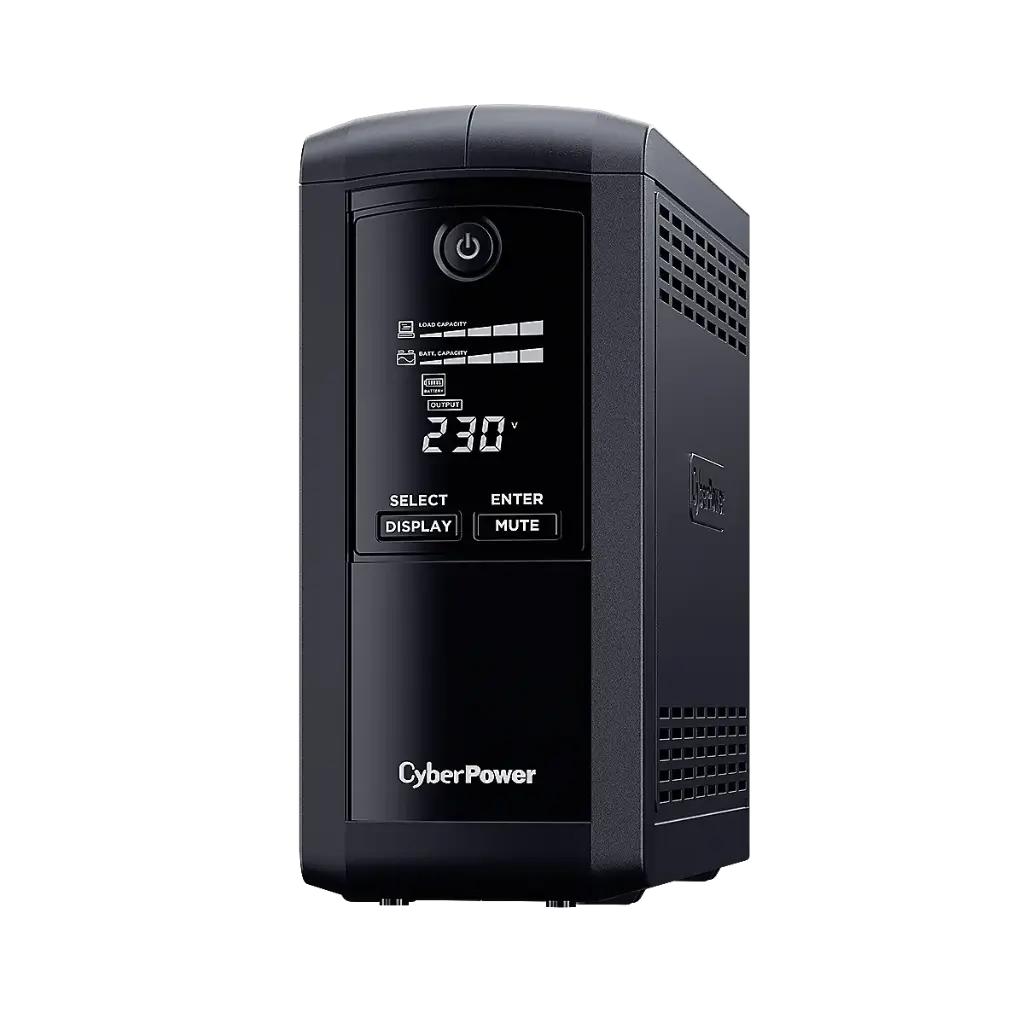

CyberPower VP1000EILCD - Value Pro 1 kVA / 550 W Line Interactive Tower UPS (6 × IEC C13 outlets, LCD display)

Designed for small offices, home setups, network appliances, surveillance systems, and point-of-sale terminals, the VP1000EILCD delivers 1 000 VA (550 W) with simulated sine wave output and a line-interactive topology. It integrates AVR, surge protection, energy-saving GreenPower bypass, and a user-friendly LCD interface for monitoring and control.

Key Features

• Topology & Output: Line-interactive architecture with simulated sine wave output - ideal for standard electronics, though potentially incompatible with Active PFC power supplies.

• Automatic Voltage Regulation (AVR): Single-boost, single-buck AVR stabilizes under- and over-voltage between 167–295 VAC without using battery power.

• GreenPower UPS™ Technology: Energy-efficient bypass mode reduces idle power consumption and thermal output.

• Surge + Data Line Protection: 450 J surge suppression and EMI/RFI filtering, with RJ‑11/RJ‑45 combo ports to safeguard network and telephone lines—including support for gigabit‑speed data traffic.

• LCD & Audible Alerts: Multifunction LCD panel shows power mode, battery status, load level, fault warnings, and logging info. Additionally, LED indicators and audible alarms warn during overload, low battery, and faults.

Battery & Runtime

• Internal VRLA battery (sealed lead‑acid; replaceable by qualified personnel) with typical recharge time of around 8 hours.

• Runtime: roughly 9 minutes at half load, ~1 minute at full load; variations depend on ambient conditions and load profile.

Connectivity & Outputs

• 6 × IEC C13 outlets, all surge and battery protected—suitable for PCs, NAS, routers, and other IT/peripheral loads.

• USB (HID-compliant) and RS-232 serial ports for local monitoring and control via CyberPower’s PowerPanel software (compatible with Windows, macOS, Linux, and NUT via USB/serial).

Physical & Environmental Specs

• Form Factor: Compact vertical tower, approx. 100 × 260 × 227 mm, weighing around 6.2 kg.

• Operating Conditions: Rated for 0–40 °C ambient, 0–90 % humidity (non-condensing), altitude up to ~3 000 m. Noise level: ~40 dB(A), heat dissipation ~24 BTU/hr.

Certifications & Warranty

• CE and EAC compliant; RoHS certified.

• Backed by a 2‑year warranty, inclusive of battery. Includes up to €50,000 equipment protection guarantee in many regions.

Ideal Use Cases

• SOHO Offices / Small Home Labs: Reliable short-term backup for routers, low-power servers, or PCs during outages.

• Network & Surveillance Racks: Protects modems, switches, DVRs/NVRs with modest loads and controlled shutdown capability.

• Budget-Friendly Installations: Offers AVR stability, surge protection, and software control without high cost.

Quick Specs Table
